7HPP | pdb_00007hpp

PanDDA analysis group deposition -- Crystal structure of SARS-CoV-2 NSP3 macrodomain in complex with CACHE3HI_1695_54

• PDB DOI: https://doi.org/10.2210/pdb7HPP/pdb
• Deposition Group: G_1002327 (changed state) ExploreG_1002327

• Classification: VIRAL PROTEIN
• Organism(s): Severe acute respiratory syndrome coronavirus 2
• Expression System: Escherichia coli BL21(DE3)
• Mutation(s): No


• Deposited: 2024-12-08 Released: 2025-08-20
• Deposition Author(s): Correy, G.J., Fraser, J.S.
• Funding Organization(s): National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID)

---

Experimental Data Snapshot

• Method: X-RAY DIFFRACTION
• Resolution: 1.01 Å
• R-Value Free:
  0.157 (Depositor), 0.164 (DCC)
• R-Value Work:
  0.140 (Depositor), 0.151 (DCC)
• R-Value Observed:
  0.141 (Depositor)

Literature

Ligand screen against SARS-CoV-2 NSP3 macrodomain

Correy, G.J., Fraser, J.S.

To be published.

Biological Assembly 1

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Monomer - A1

Biological assembly 1 assigned by authors.

Biological Assembly 2

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Monomer - A1

Biological assembly 2 assigned by authors.

Macromolecule Content

• Total Structure Weight: 36.75 kDa
• Atom Count: 3,537
• Modeled Residue Count: 336
• Deposited Residue Count: 338
• Unique protein chains: 1

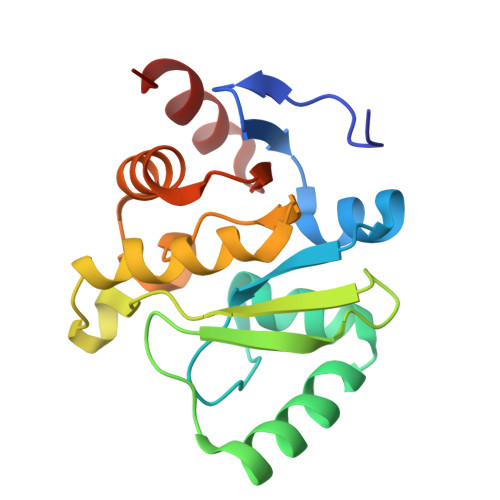

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
Non-structural protein 3	A, B	169	Severe acute respiratory syndrome coronavirus 2	Mutation(s): 0  Gene Names: rep, 1a-1b EC: 3.4.22
UniProt
Find proteins for P0DTD1 (Severe acute respiratory syndrome coronavirus 2) Explore P0DTD1  Go to UniProtKB:  P0DTD1

Small Molecules

Ligands 2 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram
A1BKE (Subject of Investigation/LOI)	C [auth A]	(1S,2S)-N-[3,5-difluoro-4-(methanesulfonyl)phenyl]-2-(pyridin-3-yl)cyclopropane-1-carboxamide C16 H14 F2 N2 O3 S CNDFLDUSXNNHCV-NEPJUHHUSA-N
CL	D [auth A]	CHLORIDE ION Cl VEXZGXHMUGYJMC-UHFFFAOYSA-M

Experimental Data & Validation

Experimental Data

• Method: X-RAY DIFFRACTION
• Resolution: 1.01 Å
• R-Value Free:  0.157 (Depositor), 0.164 (DCC)
• R-Value Work:  0.140 (Depositor), 0.151 (DCC)
• R-Value Observed: 0.141 (Depositor)

Space Group: P 4₃

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 88.749	α = 90
b = 88.749	β = 90
c = 39.53	γ = 90

Software Package:

Software Name	Purpose
PHENIX	refinement
Aimless	data scaling
PDB_EXTRACT	data extraction
XDS	data reduction
PHASER	phasing

Structure Validation

Entry History & Funding Information

Deposition Data

• Released Date: 2025-08-20
Deposition Author(s): Correy, G.J., Fraser, J.S.

---

Funding Organization	Location	Grant Number
National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID)	United States	U19AI171110

Revision History

• Version 1.0: 2025-08-20
  Type: Initial release
