8RXJ | pdb_00008rxj

Desulfovibrio desulfuricans [FeFe] hydrogenase C178A mutant in Hinact-like state derivatized with krypton

PDB DOI: https://doi.org/10.2210/pdb8RXJ/pdb

Classification: OXIDOREDUCTASE
Organism(s): Desulfovibrio desulfuricans
Expression System: Escherichia coli BL21(DE3)
Mutation(s): Yes

Deposited: 2024-02-07 Released: 2025-02-19
Deposition Author(s): Bikbaev, K., Harand, T., Scheuenstuhl, L., Carpentier, P., Span, I.
Funding Organization(s): German Research Foundation (DFG)

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 1.51 Å
R-Value Free:
0.186 (Depositor), 0.187 (DCC)
R-Value Work:
0.158 (Depositor), 0.160 (DCC)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Ligand Structure Quality Assessment

This is version 1.0 of the entry. See complete history.

Literature

Krypton Derivatization of [FeFe] Hydrogenase from Desulfovibrio desulfuricans Reveals its Gas Channel

Bikbaev, K., Harand, T., Scheuenstuhl, L., Carpentier, P., Martini, M.A., Birrell, J.A., Span, I.

To be published.

Macromolecule Content

Total Structure Weight: 56.89 kDa
Atom Count: 4,033
Modeled Residue Count: 482
Deposited Residue Count: 493
Unique protein chains: 2

Macromolecules

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

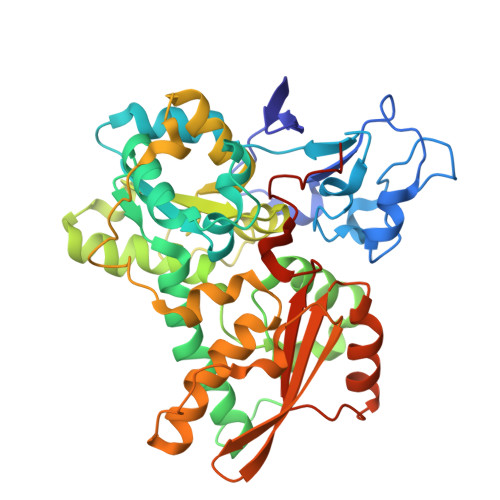

Periplasmic [Fe] hydrogenase large subunit	A	405	Desulfovibrio desulfuricans	Mutation(s): 1 Gene Names: hydA, DVU_1769 EC: 1.12.7.2
UniProt
Find proteins for P07598 (Nitratidesulfovibrio vulgaris (strain ATCC 29579 / DSM 644 / CCUG 34227 / NCIMB 8303 / VKM B-1760 / Hildenborough)) Explore P07598 Go to UniProtKB: P07598
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P07598
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image
Periplasmic [Fe] hydrogenase small subunit	B	88	Desulfovibrio desulfuricans	Mutation(s): 0 Gene Names: hydB, DVU_1770 EC: 1.12.7.2
UniProt
Find proteins for P07603 (Nitratidesulfovibrio vulgaris (strain ATCC 29579 / DSM 644 / CCUG 34227 / NCIMB 8303 / VKM B-1760 / Hildenborough)) Explore P07603 Go to UniProtKB: P07603
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P07603
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 5 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
402 (Subject of Investigation/LOI) Query on 402 Download Ideal Coordinates CCD File SDF format, chain M [auth A] MOL2 format, chain M [auth A] mmCIF format, chain M [auth A]	M [auth A]	dicarbonyl[bis(cyanide-kappaC)]-mu-(iminodimethanethiolatato-1kappaS:2kappaS)-mu-(oxomethylidene)diiron(2+) C₇ H₅ Fe₂ N₃ O₃ S₂ LJPDYWPSPOWMIB-UHFFFAOYSA-N		Interactions Focus chain M [auth A] Interactions & Density Focus chain M [auth A]
SF4 (Subject of Investigation/LOI) Query on SF4 Download Ideal Coordinates CCD File SDF format, chain P [auth A] SDF format, chain O [auth A] SDF format, chain N [auth A] MOL2 format, chain P [auth A] MOL2 format, chain O [auth A] MOL2 format, chain N [auth A] mmCIF format, chain P [auth A] mmCIF format, chain O [auth A] mmCIF format, chain N [auth A]	N [auth A], O [auth A], P [auth A]	IRON/SULFUR CLUSTER Fe₄ S₄ LJBDFODJNLIPKO-UHFFFAOYSA-N		Interactions Focus chain N [auth A] Focus chain O [auth A] Focus chain P [auth A] Interactions & Density Focus chain N [auth A] Focus chain O [auth A] Focus chain P [auth A]
TOE Query on TOE Download Ideal Coordinates CCD File SDF format, chain R [auth A] MOL2 format, chain R [auth A] mmCIF format, chain R [auth A]	R [auth A]	2-[2-(2-METHOXY-ETHOXY)-ETHOXY]-ETHOXYL C₇ H₁₆ O₄ JLGLQAWTXXGVEM-UHFFFAOYSA-N		Interactions Focus chain R [auth A] Interactions & Density Focus chain R [auth A]
KR (Subject of Investigation/LOI) Query on KR Download Ideal Coordinates CCD File SDF format, chain C [auth A] SDF format, chain E [auth A] SDF format, chain F [auth A] SDF format, chain G [auth A] SDF format, chain H [auth A] SDF format, chain I [auth A] SDF format, chain J [auth A] SDF format, chain K [auth A] SDF format, chain L [auth A] SDF format, chain D [auth A] MOL2 format, chain C [auth A] MOL2 format, chain E [auth A] MOL2 format, chain F [auth A] MOL2 format, chain G [auth A] MOL2 format, chain H [auth A] MOL2 format, chain I [auth A] MOL2 format, chain J [auth A] MOL2 format, chain K [auth A] MOL2 format, chain L [auth A] MOL2 format, chain D [auth A] mmCIF format, chain C [auth A] mmCIF format, chain E [auth A] mmCIF format, chain F [auth A] mmCIF format, chain G [auth A] mmCIF format, chain H [auth A] mmCIF format, chain I [auth A] mmCIF format, chain J [auth A] mmCIF format, chain K [auth A] mmCIF format, chain L [auth A] mmCIF format, chain D [auth A]	C [auth A] D [auth A] E [auth A] F [auth A] G [auth A] C [auth A], D [auth A], E [auth A], F [auth A], G [auth A], H [auth A], I [auth A], J [auth A], K [auth A], L [auth A]	KRYPTON Kr DNNSSWSSYDEUBZ-UHFFFAOYSA-N		Interactions Focus chain C [auth A] Focus chain D [auth A] Focus chain E [auth A] Focus chain F [auth A] Focus chain G [auth A] Focus chain H [auth A] Focus chain I [auth A] Focus chain J [auth A] Focus chain K [auth A] Focus chain L [auth A] Interactions & Density Focus chain C [auth A] Focus chain D [auth A] Focus chain E [auth A] Focus chain F [auth A] Focus chain G [auth A] Focus chain H [auth A] Focus chain I [auth A] Focus chain J [auth A] Focus chain K [auth A] Focus chain L [auth A]
CYN (Subject of Investigation/LOI) Query on CYN Download Ideal Coordinates CCD File SDF format, chain Q [auth A] MOL2 format, chain Q [auth A] mmCIF format, chain Q [auth A]	Q [auth A]	CYANIDE ION C N XFXPMWWXUTWYJX-UHFFFAOYSA-N		Interactions Focus chain Q [auth A] Interactions & Density Focus chain Q [auth A]
