8V78 | pdb_00008v78

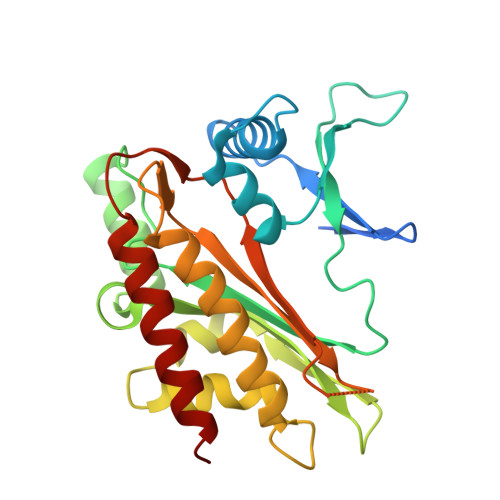

Crystal structure of the core catalytic domain of human inositol phosphate multikinase in complex with compound 13


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.96 Å
  • R-Value Free:
    0.221 (Depositor), 0.232 (DCC)
  • R-Value Work:
    0.171 (Depositor), 0.179 (DCC)
  • R-Value Observed:
    0.174 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 1.1 of the entry. See complete history


Literature

Structural Rationalization of IPMK Inhibitor Potency.

Wang, H.Shears, S.B.Blind, R.D.

(2025) J Med Chem

  • DOI: https://doi.org/10.1021/acs.jmedchem.5c02314
  • Primary Citation of Related Structures:
    8V6W, 8V6X, 8V6Y, 8V6Z, 8V70, 8V71, 8V72, 8V73, 8V74, 8V75, 8V76, 8V77, 8V78, 8V79

  • PubMed Abstract:

    Inositol polyphosphate multikinase (IPMK) is a kinase linked to several cancers; recent development of a large panel of ATP-competitive inhibitors has reinvigorated enthusiasm for targeting IPMK. However, the structural basis for how these inhibitors achieve high potency is unknown. Herein, we report 14 novel cocrystal structures (1.7-2.0 resolution) of human IPMK kinase domain with these inhibitors. We also apply a radiolabeled assay and isothermal titration calorimetry that permit high-confidence IC 50 and K D value determinations. The structures reveal a pocket in the ATP-binding site engaged by the most potent inhibitors. Two ordered waters also participate in hydrogen-bonding networks associated with the most potent inhibitors. In addition to providing the molecular basis for observed increases in potency and selectivity, the data presented here provide a toolbelt of 14 novel inhibitor-bound structures of human IPMK that can serve as a reference for all future IPMK structure-based inhibitor development efforts.


  • Organizational Affiliation
    • Molecular and Cellular Biology Laboratory, National Institute of Environmental Health Sciences, NIH, Research Triangle Park, North Carolina 27709, United States.

Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Inositol polyphosphate multikinase261Homo sapiensMutation(s): 0
Gene Names: IPMKIMPK
EC: 2.7.1.140 (PDB Primary Data), 2.7.1.151 (PDB Primary Data), 2.7.1.153 (PDB Primary Data)
UniProt & NIH Common Fund Data Resources
Find proteins for Q8NFU5 (Homo sapiens)
Explore Q8NFU5
Go to UniProtKB:  Q8NFU5
PHAROS:  Q8NFU5
GTEx:  ENSG00000151151
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ8NFU5
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 1 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
YJB (Subject of Investigation/LOI)
Query on YJB

Download Ideal Coordinates CCD File
B [auth A](3P,5M)-3-{3-[(3,5-dichloropyridin-2-yl)oxy]phenyl}-5-(1H-tetrazol-5-yl)-2,1-benzoxazole
C19 H10 Cl2 N6 O2
HUCBOYYRZGDAFL-UHFFFAOYSA-N
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.96 Å
  • R-Value Free:  0.221 (Depositor), 0.232 (DCC)
  • R-Value Work:  0.171 (Depositor), 0.179 (DCC)
  • R-Value Observed: 0.174 (Depositor)
Space Group: P 42 21 2
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 78.196α = 90
b = 78.196β = 90
c = 85.339γ = 90
Software Package:
Software NamePurpose
REFMACrefinement
HKL-2000data reduction
HKL-2000data scaling

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
National Institutes of Health/National Institute of Environmental Health Sciences (NIH/NIEHS)United States1ZIAES080046

Revision History  (Full details and data files)

  • Version 1.0: 2024-12-11
    Type: Initial release
  • Version 1.1: 2025-11-26
    Changes: Database references, Structure summary
