9A1F | pdb_00009a1f

Integrative structure of the XcpGHIJK pseudo pilus filament model of a type II secretion system

• PDB DOI: https://doi.org/10.2210/pdb9A1F/pdb

• Organism(s): Pseudomonas aeruginosa (strain ATCC 15692 / DSM 22644 / CIP 104116 / JCM 14847 / LMG 12228 / 1C / PRS 101 / PAO1)
• Mutation(s): No


• Deposited: 2021-05-03 Released: 2021-06-18
• Deposition Author(s): Escobar CA, Douzi B, Ball G, Barbat B, Alphonse S, Quinton L, Voulhoux R, Forest KT

---

Integrative Structure Snapshot

• Multi-Scale: No
• Multi-State: No
• Ordered-State: No
• Deposited Models: 1
• Representative Model: 1

Literature

Structural interactions define assembly adapter function of a type II secretion system pseudopilin

Escobar CA, Douzi B, Ball G, Barbat B, Alphonse S, Quinton L, Voulhoux R, Forest KT

(2021) Structure 29: 1-12

• DOI: https://doi.org/10.1016/j.str.2021.05.015

Assembly

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Hetero 20-mer - A16B1C1D1E1 Local Symmetry: Helical - H  (Explore in 3D)
Local Stoichiometry: Homo 16-mer - A16

Local Symmetry: Helical - H  (Explore in 3D)
Local Stoichiometry: Homo 16-mer - A16

Macromolecule Content

• Total Structure Weight: 373.29 kDa
• Atom Count: 22,330
• Modeled Residue Count: 2,933
• Deposited Residue Count: 2,933
• Unique protein chains: 5

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

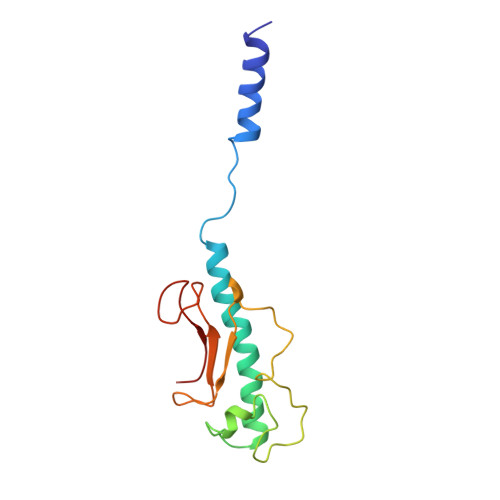

XcpG	A, B, C, D, E, F, G, H, I, J, K, L, M, N, O, P	134	Pseudomonas aeruginosa (strain ATCC 15692 / DSM 22644 / CIP 104116 / JCM 14847 / LMG 12228 / 1C / PRS 101 / PAO1)	Mutation(s): 0  Gene Names: xcpT
UniProt
Find proteins for Q00514 (Pseudomonas aeruginosa (strain ATCC 15692 / DSM 22644 / CIP 104116 / JCM 14847 / LMG 12228 / 1C / PRS 101 / PAO1)) Explore Q00514  Go to UniProtKB:  Q00514

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

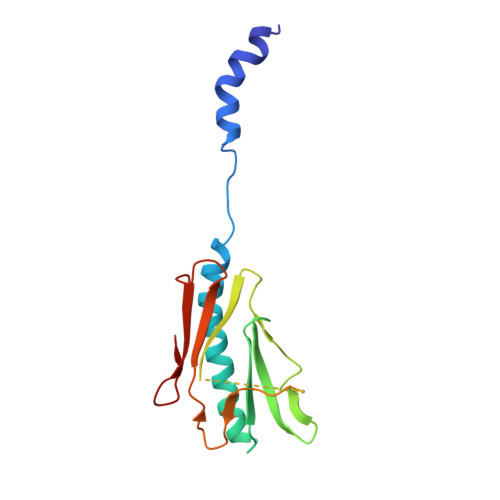

XcpH	Q	161	Pseudomonas aeruginosa (strain ATCC 15692 / DSM 22644 / CIP 104116 / JCM 14847 / LMG 12228 / 1C / PRS 101 / PAO1)	Mutation(s): 0  Gene Names: xcpU
UniProt
Find proteins for Q00515 (Pseudomonas aeruginosa (strain ATCC 15692 / DSM 22644 / CIP 104116 / JCM 14847 / LMG 12228 / 1C / PRS 101 / PAO1)) Explore Q00515  Go to UniProtKB:  Q00515

Entity ID: 3
Molecule	Chains	Sequence Length	Organism	Details	Image

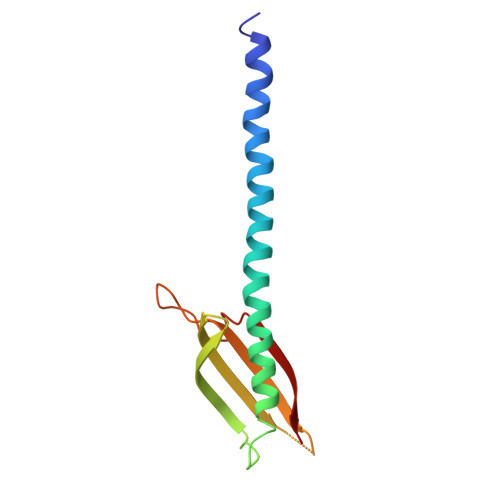

XcpI	R	120	Pseudomonas aeruginosa (strain ATCC 15692 / DSM 22644 / CIP 104116 / JCM 14847 / LMG 12228 / 1C / PRS 101 / PAO1)	Mutation(s): 0  Gene Names: xcpV
UniProt
Find proteins for Q00516 (Pseudomonas aeruginosa (strain ATCC 15692 / DSM 22644 / CIP 104116 / JCM 14847 / LMG 12228 / 1C / PRS 101 / PAO1)) Explore Q00516  Go to UniProtKB:  Q00516

Entity ID: 4
Molecule	Chains	Sequence Length	Organism	Details	Image

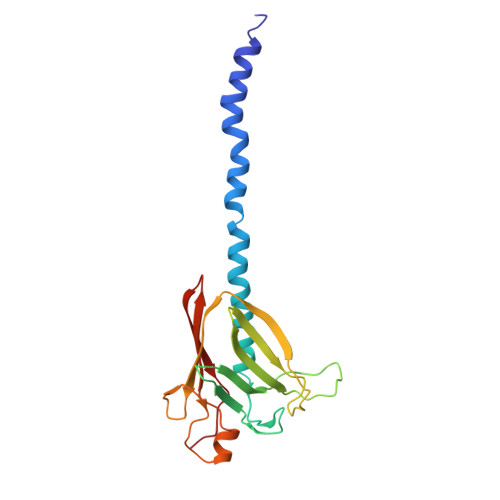

XcpJ	S	199	Pseudomonas aeruginosa (strain ATCC 15692 / DSM 22644 / CIP 104116 / JCM 14847 / LMG 12228 / 1C / PRS 101 / PAO1)	Mutation(s): 0  Gene Names: xcpW
UniProt
Find proteins for Q00517 (Pseudomonas aeruginosa (strain ATCC 15692 / DSM 22644 / CIP 104116 / JCM 14847 / LMG 12228 / 1C / PRS 101 / PAO1)) Explore Q00517  Go to UniProtKB:  Q00517

Entity ID: 5
Molecule	Chains	Sequence Length	Organism	Details	Image

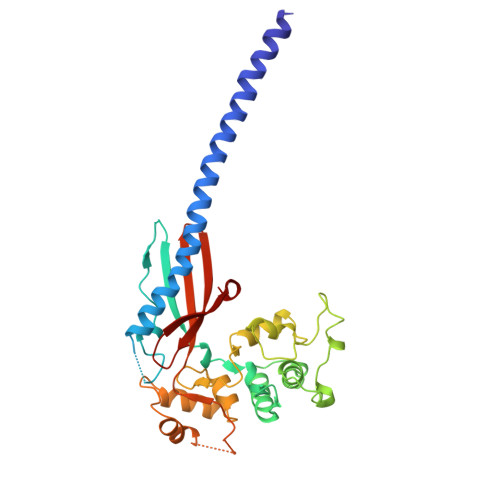

XcpK	T	309	Pseudomonas aeruginosa (strain ATCC 15692 / DSM 22644 / CIP 104116 / JCM 14847 / LMG 12228 / 1C / PRS 101 / PAO1)	Mutation(s): 0  Gene Names: xcpX
UniProt
Find proteins for Q00518 (Pseudomonas aeruginosa (strain ATCC 15692 / DSM 22644 / CIP 104116 / JCM 14847 / LMG 12228 / 1C / PRS 101 / PAO1)) Explore Q00518  Go to UniProtKB:  Q00518

Experimental Data & Validation

Integrative Structure Snapshot

• Multi-Scale: No
• Multi-State: No
• Ordered-State: No
• Deposited Models: 1
• Representative Model: 1

Structure Validation

View Full Validation Report

View Summary Validation Report

Entry History

Deposition Data

• Released Date: 2021-06-18
Deposition Author(s): Escobar CA, Douzi B, Ball G, Barbat B, Alphonse S, Quinton L, Voulhoux R, Forest KT

Revision History

• Version 1.0: 2021-06-18
  Type: Initial release
