9BPL | pdb_00009bpl

Crystal structure of Adenylosuccinate Lyase from Leishmania major

PDB DOI: https://doi.org/10.2210/pdb9BPL/pdb

Classification: LYASE
Organism(s): Leishmania major
Expression System: Escherichia coli
Mutation(s): No

Deposited: 2024-05-07 Released: 2025-10-08
Deposition Author(s): Rosa e Silva, I., Mantovani, M., Nagem, R., Cardona, A., Reboredo, E., Thiemann, O.
Funding Organization(s): Sao Paulo Research Foundation (FAPESP)

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 1.97 Å
R-Value Free:
0.239 (Depositor), 0.239 (DCC)
R-Value Work:
0.211 (Depositor), 0.210 (DCC)
R-Value Observed:
0.212 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Ligand Structure Quality Assessment

This is version 1.0 of the entry. See complete history.

Literature

Crystal Structure of Adenylosuccinate lyase from Leishmania major

Rosa e Silva, I., Mantovani, M., Nagem, R., Cardona, A., Reboredo, E., Thiemann, O.

To be published.

Macromolecule Content

Total Structure Weight: 108.42 kDa
Atom Count: 7,552
Modeled Residue Count: 889
Deposited Residue Count: 958
Unique protein chains: 1

Macromolecules

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 1

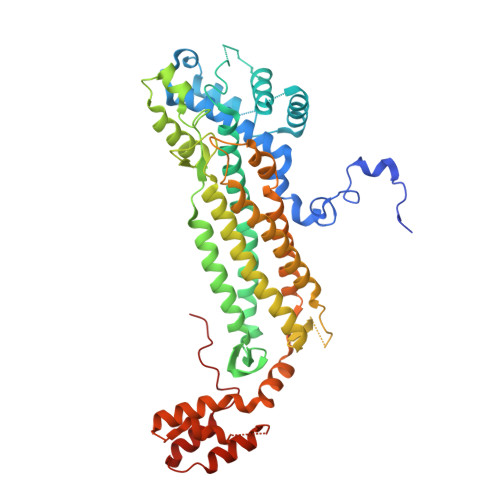

Molecule	Chains	Sequence Length	Organism	Details	Image
Adenylosuccinate lyase	A, B	479	Leishmania major	Mutation(s): 0 Gene Names: LMJF_04_0460 EC: 4.3.2.2
UniProt
Find proteins for Q9U0T7 (Leishmania major) Explore Q9U0T7 Go to UniProtKB: Q9U0T7
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q9U0T7
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 5 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
SO4 (Subject of Investigation/LOI) Query on SO4 Download Ideal Coordinates CCD File SDF format, chain D [auth A] SDF format, chain E [auth A] SDF format, chain J [auth B] MOL2 format, chain D [auth A] MOL2 format, chain E [auth A] MOL2 format, chain J [auth B] mmCIF format, chain D [auth A] mmCIF format, chain E [auth A] mmCIF format, chain J [auth B]	D [auth A], E [auth A], J [auth B]	SULFATE ION O₄ S QAOWNCQODCNURD-UHFFFAOYSA-L		Interactions Focus chain D [auth A] Focus chain E [auth A] Focus chain J [auth B] Interactions & Density Focus chain D [auth A] Focus chain E [auth A] Focus chain J [auth B]
PO4 Query on PO4 Download Ideal Coordinates CCD File SDF format, chain I [auth A] MOL2 format, chain I [auth A] mmCIF format, chain I [auth A]	I [auth A]	PHOSPHATE ION O₄ P NBIIXXVUZAFLBC-UHFFFAOYSA-K		Interactions Focus chain I [auth A] Interactions & Density Focus chain I [auth A]
GOL Query on GOL Download Ideal Coordinates CCD File SDF format, chain C [auth A] SDF format, chain H [auth A] SDF format, chain K [auth B] SDF format, chain N [auth B] MOL2 format, chain C [auth A] MOL2 format, chain H [auth A] MOL2 format, chain K [auth B] MOL2 format, chain N [auth B] mmCIF format, chain C [auth A] mmCIF format, chain H [auth A] mmCIF format, chain K [auth B] mmCIF format, chain N [auth B]	C [auth A], H [auth A], K [auth B], N [auth B]	GLYCEROL C₃ H₈ O₃ PEDCQBHIVMGVHV-UHFFFAOYSA-N		Interactions Focus chain C [auth A] Focus chain H [auth A] Focus chain K [auth B] Focus chain N [auth B] Interactions & Density Focus chain C [auth A] Focus chain H [auth A] Focus chain K [auth B] Focus chain N [auth B]
CL Query on CL Download Ideal Coordinates CCD File SDF format, chain G [auth A] SDF format, chain M [auth B] MOL2 format, chain G [auth A] MOL2 format, chain M [auth B] mmCIF format, chain G [auth A] mmCIF format, chain M [auth B]	G [auth A], M [auth B]	CHLORIDE ION Cl VEXZGXHMUGYJMC-UHFFFAOYSA-M		Interactions Focus chain G [auth A] Focus chain M [auth B] Interactions & Density Focus chain G [auth A] Focus chain M [auth B]
MG Query on MG Download Ideal Coordinates CCD File SDF format, chain F [auth A] SDF format, chain L [auth B] MOL2 format, chain F [auth A] MOL2 format, chain L [auth B] mmCIF format, chain F [auth A] mmCIF format, chain L [auth B]	F [auth A], L [auth B]	MAGNESIUM ION Mg JLVVSXFLKOJNIY-UHFFFAOYSA-N		Interactions Focus chain F [auth A] Focus chain L [auth B] Interactions & Density Focus chain F [auth A] Focus chain L [auth B]
