9BT7 | pdb_00009bt7

Crystal structure of Chorismate Mutase from Mycobacterium tuberculosis in complex with the cyclic peptide inhibitor D1.3


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.80 Å
  • R-Value Free:
    0.208 (Depositor), 0.208 (DCC)
  • R-Value Work:
    0.176 (Depositor), 0.175 (DCC)
  • R-Value Observed:
    0.177 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


This is version 1.1 of the entry. See complete history


Literature

Active- and Allosteric-Site Cyclic Peptide Inhibitors of Secreted M. tuberculosis Chorismate Mutase.

van Neer, R.H.P.Dranchak, P.K.Aitha, M.Liu, L.Carlson, E.K.Jacobsen, I.E.Battaile, K.Fang, Y.Tao, D.Rai, G.Padia, J.Lovell, S.Suga, H.Inglese, J.

(2025) ACS Infect Dis 11: 703-714

  • DOI: https://doi.org/10.1021/acsinfecdis.4c00798
  • Primary Citation of Related Structures:
    9BT3, 9BT6, 9BT7

  • PubMed Abstract:

    The secreted Chorismate mutase enzyme of Mycobacterium tuberculosis (* Mtb CM) is an underexplored potential target for the development of new antitubercular agents that are increasingly needed as antibiotic resistance rises in prevalence. As an enzyme suspected to be involved in virulence and host-pathogen interactions, disruption of its function could circumvent the difficulty of treating tuberculosis-infected granulomas. Drug development, however, is limited by novel ligand discovery. Currently, * Mtb CM activity is measured by using a low throughput acid/base-mediated product derivatization absorbance assay. Here, we utilized an RNA-display affinity selection approach enabled by the Random Peptides Integrated Discovery (RaPID) system to screen a vast library of macrocyclic peptides (MCP) for novel * Mtb CM ligands. Peptides identified from the RaPID selection, and analogs thereof identified by analyzing the selection population dynamics, produced a new class of * Mtb CM inhibiting MCPs. Among these were two noteworthy "chorismides", whose binding modes were elucidated by X-ray crystallography. Both were potent inhibitors of the CM enzyme activity. One was identified as an allosteric binding peptide revealing a novel inhibition approach, while the other is an active-site binding peptide that when conjugated to a fluorescent probe allowed for the development of a series of alternative fluorescence-based ligand-displacement assays that can be utilized for the assessment of potential * Mtb CM inhibitors.


  • Organizational Affiliation
    • Division of Preclinical Innovation, National Center for Advancing Translational Sciences, National Institutes of Health, Rockville, Maryland 20850, United States.

Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Secreted chorismate mutase
A, B
205Mycobacterium tuberculosisMutation(s): 0
Gene Names: Rv1885c
EC: 5.4.99.5
UniProt
Find proteins for P9WIB9 (Mycobacterium tuberculosis (strain ATCC 25618 / H37Rv))
Explore P9WIB9
Go to UniProtKB:  P9WIB9
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP9WIB9
Sequence Annotations
Expand
  • Reference Sequence

Find similar proteins by:  Sequence   |   3D Structure

Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage

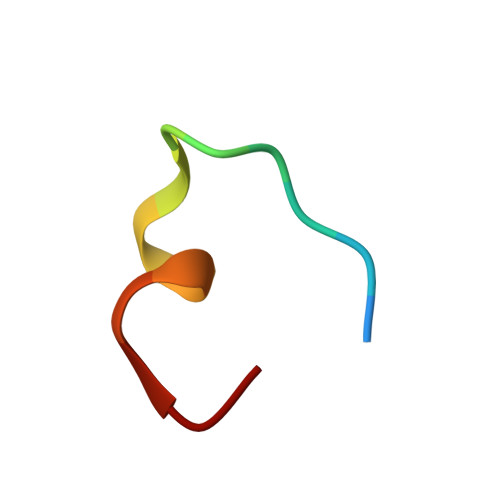

Cyclic peptide inhibitor D1.3
C, D
15Mycobacterium tuberculosisMutation(s): 0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.80 Å
  • R-Value Free:  0.208 (Depositor), 0.208 (DCC)
  • R-Value Work:  0.176 (Depositor), 0.175 (DCC)
  • R-Value Observed: 0.177 (Depositor)
Space Group: P 21 21 21
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 70.186α = 90
b = 71.102β = 90
c = 71.603γ = 90
Software Package:
Software NamePurpose
PHENIXrefinement
Aimlessdata scaling
XDSdata reduction
PHASERphasing

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
National Institutes of Health/Office of the DirectorUnited StatesS10OD030394
National Institutes of Health/National Center for Advancing Translational Sciences (NIH/NCATS)United States1ZIATR000053

Revision History  (Full details and data files)

  • Version 1.0: 2025-02-26
    Type: Initial release
  • Version 1.1: 2025-03-26
    Changes: Database references
