9GNX | pdb_00009gnx

Human SENP5 in complex with SUMO1 (E67D)


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.90 Å
  • R-Value Free:
    0.258 (Depositor), 0.262 (DCC)
  • R-Value Work:
    0.210 (Depositor), 0.214 (DCC)
  • R-Value Observed:
    0.212 (Depositor)

Starting Model: in silico
View more details

wwPDB Validation   3D Report Full Report


This is version 1.0 of the entry. See complete history


Literature

Structural basis for the human SENP5's SUMO isoform discrimination.

Sanchez-Alba, L.Ying, L.Maletic, M.D.De Bolos, A.Borras-Gas, H.Liu, B.Varejao, N.Amador, V.Mulder, M.P.C.Reverter, D.

(2025) Nat Commun 16: 4764-4764

  • DOI: https://doi.org/10.1038/s41467-025-60029-4
  • Primary Citation of Related Structures:
    9GNN, 9GNV, 9GNX

  • PubMed Abstract:

    Post-translational SUMO modification is a widespread mechanism for regulating protein function within cells. In humans, SUMO-conjugated proteins are partially regulated by the deconjugating activity of six SENP family members. The proteolytic activity of these enzymes resides within a conserved catalytic domain that exhibits specificity for the two primary SUMO isoforms: SUMO1 and SUMO2/3. SENP5, along with SENP3, are nucleolar proteins involved in ribosome biogenesis and preferentially target SUMO2/3 isoforms. Here, we present the crystal structures of human SENP5 in complex with both SUMO1 and SUMO2 isoforms. These structures reveal a minimal complex interface and elucidate the molecular basis for SENP5's preference for the SUMO2 isoform. This preference can be attributed to a basic patch surrounding SENP5 Arg624 at the interface. Swapping mutagenesis and structural analysis demonstrate that Arg624 is favorably oriented to interact with Asp63 in SUMO2/3, while its interaction with the equivalent Glu67 in SUMO1 is less favorable. These results suggest that subtle structural differences within SUMO isoforms can significantly influence their deconjugation by SENP enzymes, opening new avenues for exploring the regulation of SUMOylation in various cellular processes and for developing therapeutic agents targeting SUMOylation pathways.


  • Organizational Affiliation

    Institut de Biotecnologia i de Biomedicina (IBB) and Dept. de Bioquímica i Biologia Molecular, Universitat Autònoma de Barcelona, Bellaterra, Spain.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage

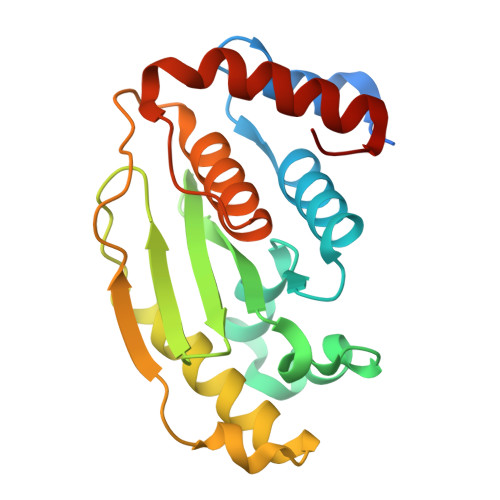

Sentrin-specific protease 5207Homo sapiensMutation(s): 0
Gene Names: SENP5FKSG45
EC: 3.4.22
UniProt & NIH Common Fund Data Resources
Find proteins for Q96HI0 (Homo sapiens)
Explore Q96HI0
Go to UniProtKB:  Q96HI0
PHAROS:  Q96HI0
GTEx:  ENSG00000119231
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ96HI0
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage

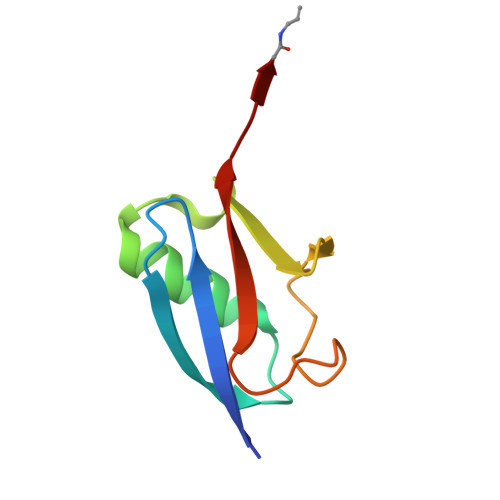

Small ubiquitin-related modifier 180Homo sapiensMutation(s): 1
UniProt & NIH Common Fund Data Resources
Find proteins for P63165 (Homo sapiens)
Explore P63165
Go to UniProtKB:  P63165
PHAROS:  P63165
GTEx:  ENSG00000116030
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP63165
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.90 Å
  • R-Value Free:  0.258 (Depositor), 0.262 (DCC)
  • R-Value Work:  0.210 (Depositor), 0.214 (DCC)
  • R-Value Observed: 0.212 (Depositor)
Space Group: P 65 2 2
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 90.35α = 90
b = 90.35β = 90
c = 151.88γ = 120
Software Package:
Software NamePurpose
PHENIXrefinement
XDSdata reduction
Aimlessdata scaling
PHASERphasing

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Spanish Ministry of Science, Innovation, and UniversitiesSpain--

Revision History  (Full details and data files)

  • Version 1.0: 2025-07-16
    Type: Initial release
