9KVD | pdb_00009kvd

Cryo-EM structure of SARS-CoV-2 prototype spike protein in complex with triple-nAb 3G5, 4H5 and 4C11

• PDB DOI: https://doi.org/10.2210/pdb9KVD/pdb
• EM Map EMD-62589: EMDB EMDataResource

• Classification: VIRAL PROTEIN/IMMUNE SYSTEM
• Organism(s): Macaca mulatta, Severe acute respiratory syndrome coronavirus 2
• Expression System: Cricetulus griseus, Homo sapiens
• Mutation(s): No


• Deposited: 2024-12-05 Released: 2025-08-20
• Deposition Author(s): Sun, H., Jiang, Y., Wang, S., Zheng, Z., Li, S., Zheng, Q.
• Funding Organization(s): Not funded

---

Experimental Data Snapshot

• Method: ELECTRON MICROSCOPY
• Resolution: 3.44 Å
• Aggregation State: PARTICLE
• Reconstruction Method: SINGLE PARTICLE

Literature

Cryo-EM structure of SARS-CoV-2 prototype spike protein in complex with triple-nAb 3G5, 4H5 and 4C11

Sun, H., Jiang, Y., Wang, S., Zheng, Z., Li, S., Zheng, Q.

To be published.

Biological Assembly 1

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Hetero 7-mer - A2B1C1D1E1F1 Pseudo Symmetry: Asymmetric - C1
Pseudo Stoichiometry: Hetero 7-mer - A6B1

Biological assembly 1 assigned by authors.

Biological Assembly Evidence: electron microscopy

Macromolecule Content

• Total Structure Weight: 96.89 kDa
• Atom Count: 6,067
• Modeled Residue Count: 866
• Deposited Residue Count: 888
• Unique protein chains: 7

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
The heavy chain of 4C11	A	123	Macaca mulatta	Mutation(s): 0

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

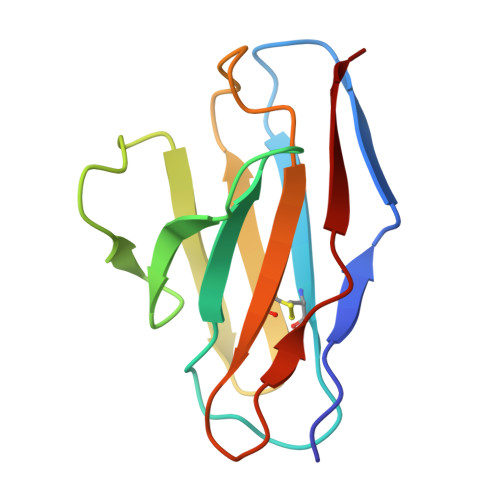

The light chain of 4C11	B	107	Macaca mulatta	Mutation(s): 0

Entity ID: 3
Molecule	Chains	Sequence Length	Organism	Details	Image

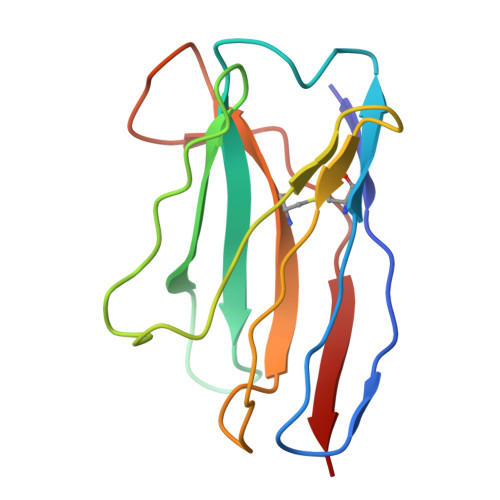

The heavy chain of 4H5	C [auth D]	121	Macaca mulatta	Mutation(s): 0

Entity ID: 4
Molecule	Chains	Sequence Length	Organism	Details	Image

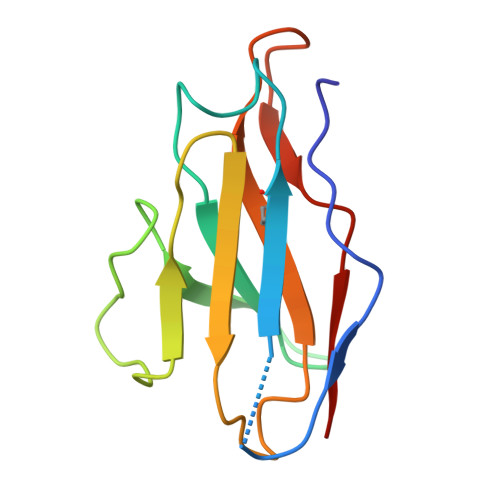

The light chain of 4H5	D [auth F]	110	Macaca mulatta	Mutation(s): 0

Entity ID: 5
Molecule	Chains	Sequence Length	Organism	Details	Image

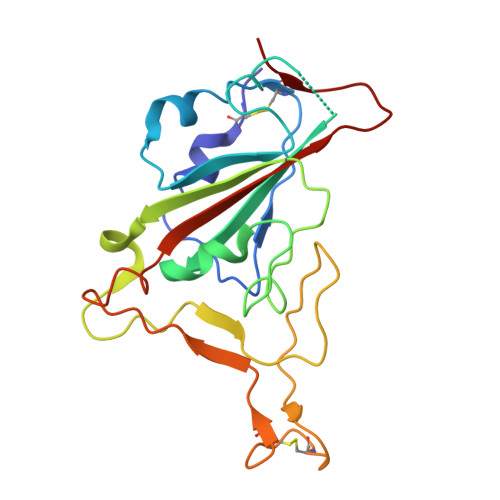

Spike protein S1	E [auth C]	194	Severe acute respiratory syndrome coronavirus 2	Mutation(s): 0  Gene Names: S, 2
UniProt
Find proteins for P0DTC2 (Severe acute respiratory syndrome coronavirus 2) Explore P0DTC2  Go to UniProtKB:  P0DTC2
Glycosylation
Glycosylation Sites: 1		Go to GlyGen: P0DTC2-1

Entity ID: 6
Molecule	Chains	Sequence Length	Organism	Details	Image

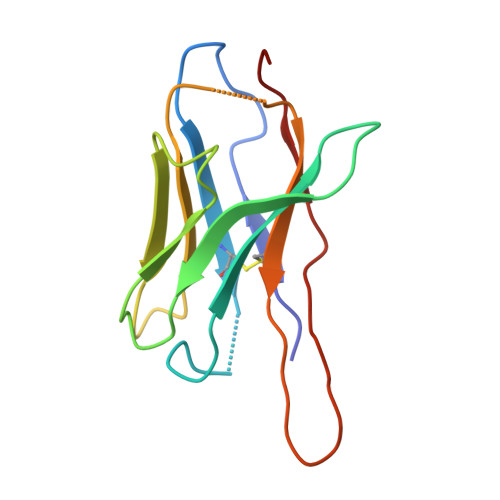

The heavy chain of 3G5	F [auth E]	120	Macaca mulatta	Mutation(s): 0

Entity ID: 7
Molecule	Chains	Sequence Length	Organism	Details	Image

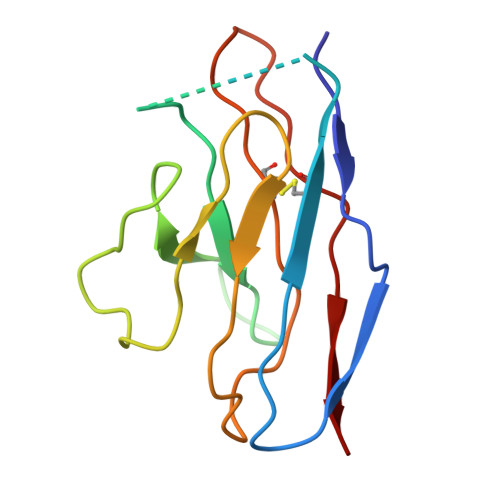

The light chain of 3G5	G	113	Macaca mulatta	Mutation(s): 0

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram
NAG (Subject of Investigation/LOI)	H [auth C]	2-acetamido-2-deoxy-beta-D-glucopyranose C8 H15 N O6 OVRNDRQMDRJTHS-FMDGEEDCSA-N

Experimental Data & Validation

Experimental Data

• Method: ELECTRON MICROSCOPY
• Resolution: 3.44 Å
• Aggregation State: PARTICLE
• Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
MODEL REFINEMENT	PHENIX

Structure Validation

Entry History & Funding Information

Deposition Data

• Released Date: 2025-08-20
Deposition Author(s): Sun, H., Jiang, Y., Wang, S., Zheng, Z., Li, S., Zheng, Q.

---

Funding Organization	Location	Grant Number
Not funded		--

Revision History

• Version 1.0: 2025-08-20
  Type: Initial release
