9LDF | pdb_00009ldf

The structure of TkoKptA/DNA/Appr>P complex-A

• PDB DOI: https://doi.org/10.2210/pdb9LDF/pdb

• Classification: TRANSFERASE/DNA
• Organism(s): Thermococcus kodakarensis KOD1, synthetic construct
• Expression System: Escherichia coli
• Mutation(s): No


• Deposited: 2025-01-05 Released: 2025-11-12
• Deposition Author(s): Cao, C.L., Yang, J., Zhang, W.Z., Gan, J.H.
• Funding Organization(s): National Natural Science Foundation of China (NSFC)

---

Experimental Data Snapshot

• Method: X-RAY DIFFRACTION
• Resolution: 1.82 Å
• R-Value Free:
  0.226 (Depositor), 0.229 (DCC)
• R-Value Work:
  0.202 (Depositor), 0.203 (DCC)
• R-Value Observed:
  0.203 (Depositor)

Starting Model: in silico

Literature

The structure of TkoKptA/DNA/Appr>P complex-A

Cao, C.L., Yang, J., Zhang, W.Z., Gan, J.H.

To be published.

Biological Assembly 1

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Monomer - A1

Biological assembly 1 assigned by authors.

Biological Assembly Evidence: gel filtration

Macromolecule Content

• Total Structure Weight: 24.85 kDa
• Atom Count: 1,655
• Modeled Residue Count: 185
• Deposited Residue Count: 190
• Unique protein chains: 1
• Unique nucleic acid chains: 1

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

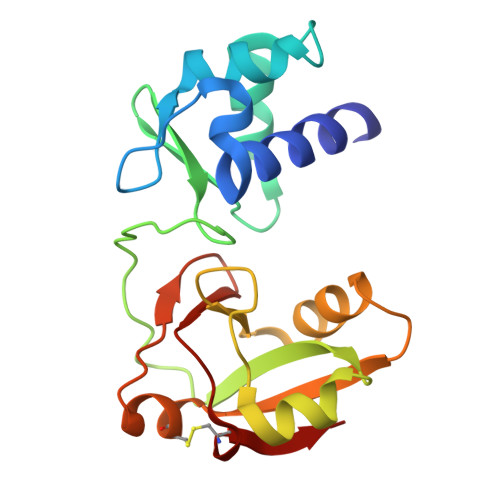

Probable RNA 2'-phosphotransferase	A	180	Thermococcus kodakarensis KOD1	Mutation(s): 0  Gene Names: kptA, TK0302 EC: 2.7.1
UniProt
Find proteins for Q5JFX3 (Thermococcus kodakarensis (strain ATCC BAA-918 / JCM 12380 / KOD1)) Explore Q5JFX3  Go to UniProtKB:  Q5JFX3

Entity ID: 2
Molecule	Chains	Length	Organism	Image

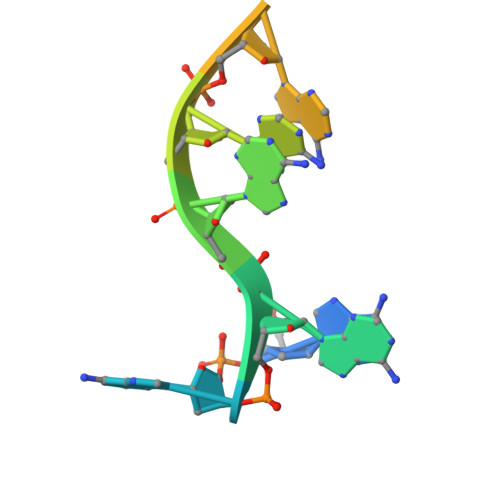

DNA (5'-D(*AP*AP*AP*AP*AP*AP*AP*AP*AP*A)-3')	B [auth C]	10	synthetic construct

Small Molecules

Ligands 3 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram
A1EJE (Subject of Investigation/LOI)	D [auth A]	[[(3~{a}~{R},5~{R},6~{R},6~{a}~{R})-2,6-bis(oxidanyl)-2-oxidanylidene-3~{a},5,6,6~{a}-tetrahydrofuro[2,3-d][1,3,2]dioxaphosphol-5-yl]methoxy-oxidanyl-phosphoryl] [(2~{R},3~{S},4~{R},5~{R})-5-(6-aminopurin-9-yl)-3,4-bis(oxidanyl)oxolan-2-yl]methyl hydrogen phosphate C15 H22 N5 O16 P3 NPSPRYXPOGPCPM-KEOHHSTQSA-N
GOL	C [auth A]	GLYCEROL C3 H8 O3 PEDCQBHIVMGVHV-UHFFFAOYSA-N
IMD	E [auth A]	IMIDAZOLE C3 H5 N2 RAXXELZNTBOGNW-UHFFFAOYSA-O

Experimental Data & Validation

Experimental Data

• Method: X-RAY DIFFRACTION
• Resolution: 1.82 Å
• R-Value Free:  0.226 (Depositor), 0.229 (DCC)
• R-Value Work:  0.202 (Depositor), 0.203 (DCC)
• R-Value Observed: 0.203 (Depositor)

Space Group: P 4₁ 2₁ 2

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 85.285	α = 90
b = 85.285	β = 90
c = 66.85	γ = 90

Software Package:

Software Name	Purpose
PHENIX	refinement
Aimless	data scaling
autoPROC	data reduction
PHASER	phasing

Structure Validation

Entry History & Funding Information

Deposition Data

• Released Date: 2025-11-12
Deposition Author(s): Cao, C.L., Yang, J., Zhang, W.Z., Gan, J.H.

---

Funding Organization	Location	Grant Number
National Natural Science Foundation of China (NSFC)	China	--

Revision History

• Version 1.0: 2025-11-12
  Type: Initial release
