9O08 | pdb_00009o08

Structure of human MAIT A-F7 TCR in complex with human MR1-lumichrome

PDB DOI: https://doi.org/10.2210/pdb9O08/pdb

Classification: IMMUNE SYSTEM
Organism(s): Homo sapiens
Expression System: Escherichia coli
Mutation(s): Yes

Deposited: 2025-04-02 Released: 2025-11-19
Deposition Author(s): Abdelaal, M., Rossjohn, J., Awad, W.
Funding Organization(s): Australian Research Council (ARC)

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 2.20 Å
R-Value Free:
0.220 (Depositor), 0.220 (DCC)
R-Value Work:
0.166 (Depositor), 0.168 (DCC)
R-Value Observed:
0.169 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Ligand Structure Quality Assessment

This is version 1.0 of the entry. See complete history.

Literature

Major histocompatibility complex class I-related gene protein / TCR alpha /TCR beta / Beta-2-microglobulin complex

Abdelaal, M., Rossjohn, J., Awad, W.

To be published.

Macromolecule Content

Total Structure Weight: 189.08 kDa
Atom Count: 14,130
Modeled Residue Count: 1,606
Deposited Residue Count: 1,642
Unique protein chains: 4

Macromolecules

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
Major histocompatibility complex class I-related gene protein	A, C	271	Homo sapiens	Mutation(s): 1 Gene Names: MR1
UniProt & NIH Common Fund Data Resources
Find proteins for Q95460 (Homo sapiens) Explore Q95460 Go to UniProtKB: Q95460
PHAROS: Q95460 GTEx: ENSG00000153029
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q95460
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

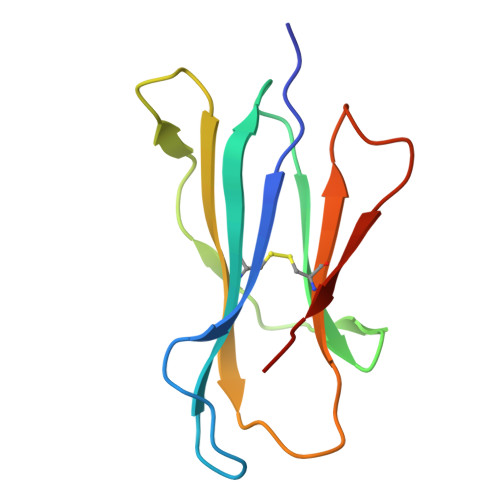

Beta-2-microglobulin	B, F	100	Homo sapiens	Mutation(s): 0 Gene Names: B2M, CDABP0092, HDCMA22P
UniProt & NIH Common Fund Data Resources
Find proteins for P61769 (Homo sapiens) Explore P61769 Go to UniProtKB: P61769
PHAROS: P61769 GTEx: ENSG00000166710
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P61769
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 3
Molecule	Chains	Sequence Length	Organism	Details	Image

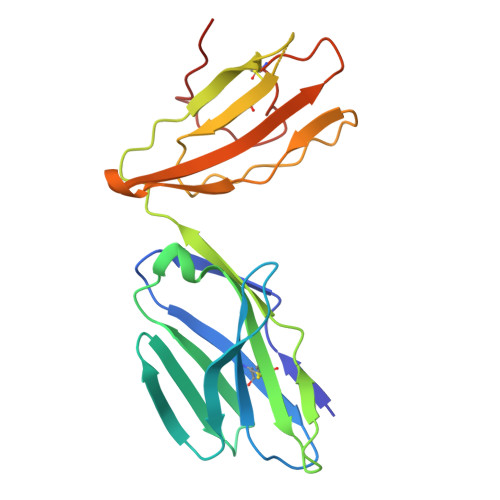

TCR-alpha	D, G	204	Homo sapiens	Mutation(s): 0
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 4
Molecule	Chains	Sequence Length	Organism	Details	Image

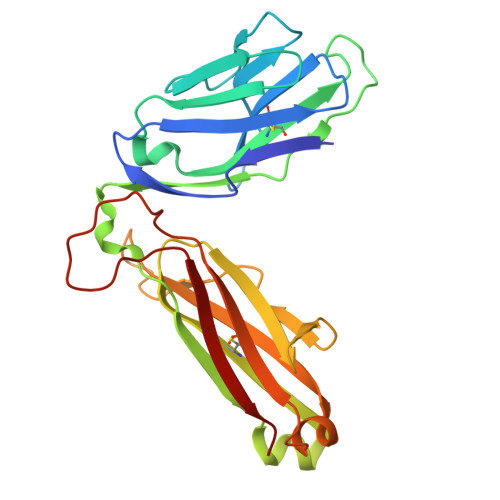

TCR-beta	E, H	246	Homo sapiens	Mutation(s): 0
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 3 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
LUM (Subject of Investigation/LOI) Query on LUM Download Ideal Coordinates CCD File SDF format, chain J [auth A] SDF format, chain L [auth C] MOL2 format, chain J [auth A] MOL2 format, chain L [auth C] mmCIF format, chain J [auth A] mmCIF format, chain L [auth C]	J [auth A], L [auth C]	LUMICHROME C₁₂ H₁₀ N₄ O₂ ZJTJUVIJVLLGSP-UHFFFAOYSA-N		Interactions Focus chain J [auth A] Focus chain L [auth C] Interactions & Density Focus chain J [auth A] Focus chain L [auth C]
GOL Query on GOL Download Ideal Coordinates CCD File SDF format, chain I [auth A] SDF format, chain M [auth C] SDF format, chain N [auth D] SDF format, chain O [auth F] SDF format, chain P [auth G] MOL2 format, chain I [auth A] MOL2 format, chain M [auth C] MOL2 format, chain N [auth D] MOL2 format, chain O [auth F] MOL2 format, chain P [auth G] mmCIF format, chain I [auth A] mmCIF format, chain M [auth C] mmCIF format, chain N [auth D] mmCIF format, chain O [auth F] mmCIF format, chain P [auth G]	I [auth A], M [auth C], N [auth D], O [auth F], P [auth G]	GLYCEROL C₃ H₈ O₃ PEDCQBHIVMGVHV-UHFFFAOYSA-N		Interactions Focus chain I [auth A] Focus chain M [auth C] Focus chain N [auth D] Focus chain O [auth F] Focus chain P [auth G] Interactions & Density Focus chain I [auth A] Focus chain M [auth C] Focus chain N [auth D] Focus chain O [auth F] Focus chain P [auth G]
CL Query on CL Download Ideal Coordinates CCD File SDF format, chain K [auth B] MOL2 format, chain K [auth B] mmCIF format, chain K [auth B]	K [auth B]	CHLORIDE ION Cl VEXZGXHMUGYJMC-UHFFFAOYSA-M		Interactions Focus chain K [auth B] Interactions & Density Focus chain K [auth B]
