9RKE | pdb_00009rke

Crystal Structure of compound 1-mediated ternary complex of KRAS G12R GCP with pVHL:ElonginC:ElonginB


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.83 Å
  • R-Value Free:
    0.286 (Depositor), 0.286 (DCC)
  • R-Value Work:
    0.234 (Depositor), 0.235 (DCC)
  • R-Value Observed:
    0.236 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 1.0 of the entry. See complete history


Literature

Identification of a Highly Cooperative PROTAC Degrader Targeting GTP-Loaded KRAS(On) Alleles.

Vetma, V.Puoti, I.Karolak, N.K.Chakraborti, S.Diers, E.Girardi, E.Khan, S.Kidd, G.Kropatsch, K.G.Mclennan, R.O'Connor, S.Samwer, M.Trainor, N.Whitworth, C.Wijaya, A.J.Wong, J.Y.F.Zollman, D.Farnaby, W.Popow, J.Ciulli, A.Ettmayer, P.McAulay, K.

(2025) J Am Chem Soc

  • DOI: https://doi.org/10.1021/jacs.5c10354
  • Primary Citation of Related Structures:
    9RK8, 9RKC, 9RKE, 9RKJ, 9RKN

  • PubMed Abstract:

    Kirsten rat sarcoma viral oncogene homologue (KRAS) is a frequently mutated oncogene in multiple types of cancer and is a high priority target for oncology drug development. There are many different KRAS mutations, including mutations that favor the GTP-loaded hydrolysis-incompetent "active" state of KRAS, KRAS(on), that can lead to tumorigenesis. However, small molecule interventions thus far have predominantly targeted single mutations of "inactive" GDP-loaded KRAS, KRAS(off), such as KRAS G12C . Here, we address this gap through the development of heterobifunctional VHL-based PROTACs capable of engaging and degrading KRAS(on), thus addressing a wider range of KRAS mutations. By studying ternary complex affinity, stability, and binding modes using SPR and X-ray cocrystal structures, we identified PROTACs that exhibit high positive cooperativity in forming ternary complexes with VHL and GCP-loaded KRAS as representative of KRAS(on) variants. Degrader activity profiling in relevant cancer cells supported the discovery of ACBI4, a PROTAC which forms a highly stable and cooperative ternary complex between VHL and GTP-bound KRAS and which potently degrades KRAS G12R , leading to antiproliferative effect in KRAS mutant-driven cancer cells. ACBI4 provides a new chemical tool for studying the impact of degrading KRAS(on) mutants, which is not possible with current pan-KRAS inhibitors or degraders.


  • Organizational Affiliation
    • Centre for Targeted Protein Degradation, School of Life Sciences, University of Dundee, 1 James Lindsay Place, DD1 5JJ Dundee, Scotland, U.K.

Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage

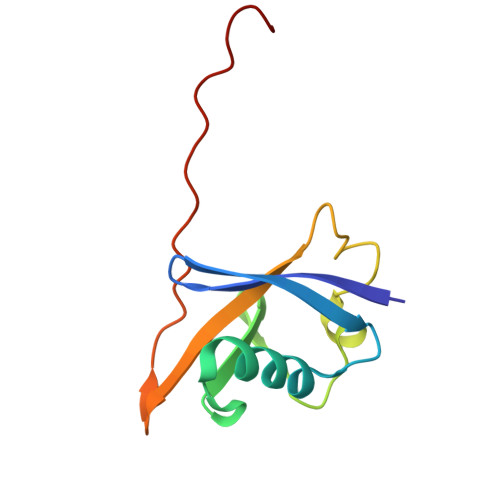

Elongin-B
A, E
104Homo sapiensMutation(s): 0
Gene Names: ELOBTCEB2
UniProt & NIH Common Fund Data Resources
Find proteins for Q15370 (Homo sapiens)
Explore Q15370
Go to UniProtKB:  Q15370
PHAROS:  Q15370
GTEx:  ENSG00000103363
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ15370
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage

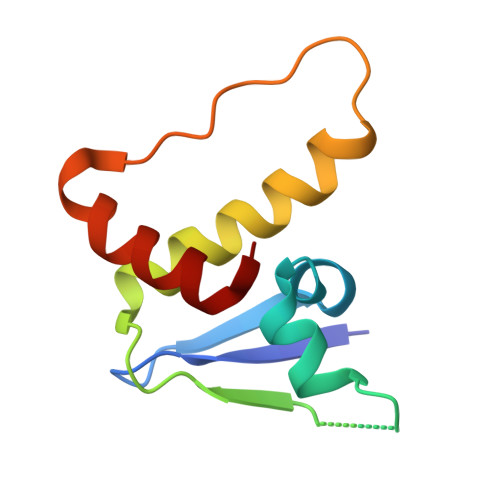

Elongin-C
B, F
97Homo sapiensMutation(s): 0
Gene Names: ELOCTCEB1
UniProt & NIH Common Fund Data Resources
Find proteins for Q15369 (Homo sapiens)
Explore Q15369
Go to UniProtKB:  Q15369
PHAROS:  Q15369
GTEx:  ENSG00000154582
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ15369
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 3
MoleculeChains Sequence LengthOrganismDetailsImage

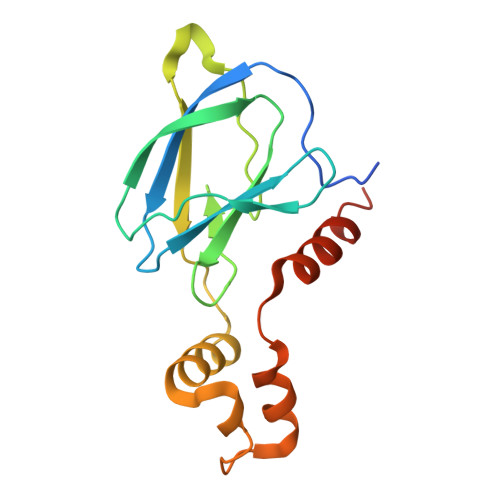

von Hippel-Lindau disease tumor suppressor
C, G
162Homo sapiensMutation(s): 0
Gene Names: VHL
UniProt & NIH Common Fund Data Resources
Find proteins for P40337 (Homo sapiens)
Explore P40337
Go to UniProtKB:  P40337
PHAROS:  P40337
GTEx:  ENSG00000134086
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP40337
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 4
MoleculeChains Sequence LengthOrganismDetailsImage

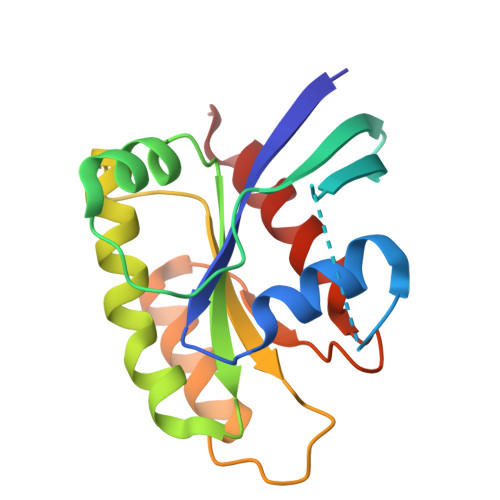

Isoform 2B of GTPase KRas
D, H
170Homo sapiensMutation(s): 1
Gene Names: KRASKRAS2RASK2
EC: 3.6.5.2
UniProt & NIH Common Fund Data Resources
Find proteins for P01116 (Homo sapiens)
Go to UniProtKB:  P01116
PHAROS:  P01116
GTEx:  ENSG00000133703
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP01116-2
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 5 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
X53 (Subject of Investigation/LOI)
Query on X53

Download Ideal Coordinates CCD File
J [auth D],
O [auth H]
(2S,4R)-1-[(2R)-2-[3-[4-[(3S)-4-[4-[5-[(4S)-2-azanyl-3-cyano-4-methyl-6,7-dihydro-5H-1-benzothiophen-4-yl]-1,2,4-oxadiazol-3-yl]pyrimidin-2-yl]-3-methyl-1,4-diazepan-1-yl]butoxy]-1,2-oxazol-5-yl]-3-methyl-butanoyl]-N-[[4-(4-methyl-1,3-thiazol-5-yl)phenyl]methyl]-4-oxidanyl-pyrrolidine-2-carboxamide
C50 H60 N12 O6 S2
YIBGZBSCYLTBRE-GMDSDUMKSA-N
GCP
Query on GCP

Download Ideal Coordinates CCD File
K [auth D],
P [auth H]
PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER
C11 H18 N5 O13 P3
PHBDHXOBFUBCJD-KQYNXXCUSA-N
FLC
Query on FLC

Download Ideal Coordinates CCD File
M [auth D],
N [auth F]
CITRATE ANION
C6 H5 O7
KRKNYBCHXYNGOX-UHFFFAOYSA-K
GOL
Query on GOL

Download Ideal Coordinates CCD File
I [auth B]GLYCEROL
C3 H8 O3
PEDCQBHIVMGVHV-UHFFFAOYSA-N
MG
Query on MG

Download Ideal Coordinates CCD File
L [auth D],
Q [auth H]
MAGNESIUM ION
Mg
JLVVSXFLKOJNIY-UHFFFAOYSA-N
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.83 Å
  • R-Value Free:  0.286 (Depositor), 0.286 (DCC)
  • R-Value Work:  0.234 (Depositor), 0.235 (DCC)
  • R-Value Observed: 0.236 (Depositor)
Space Group: P 32 2 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 101.934α = 90
b = 101.934β = 90
c = 275.675γ = 120
Software Package:
Software NamePurpose
PHENIXrefinement
xia2.multiplexdata reduction
xia2.multiplexdata scaling
PHASERphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Boehringer Ingelheim Fonds (BIF)Germany--

Revision History  (Full details and data files)

  • Version 1.0: 2025-11-12
    Type: Initial release
