9WAG | pdb_00009wag

Yeast-expressed polio type 1 expanded virus-like particles

PDB DOI: https://doi.org/10.2210/pdb9WAG/pdb
EM Map EMD-65817: EMDB EMDataResource

Classification: VIRUS LIKE PARTICLE
Organism(s): Poliovirus 1
Expression System: Komagataella pastoris
Mutation(s): No

Deposited: 2025-08-12 Released: 2026-03-04
Deposition Author(s): Hong, Q., Cong, Y.
Funding Organization(s): Chinese Academy of Sciences

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 2.95 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

This is version 1.0 of the entry. See complete history.

Literature

Structural insight into the assembly and D antigenicity of polio type 1 stabilized virus-like particles

Hong, Q., Chen, T., Han, W.Y., Wang, S.X.

To be published.

Macromolecule Content

Total Structure Weight: 90.1 kDa
Atom Count: 4,930
Modeled Residue Count: 625
Deposited Residue Count: 812
Unique protein chains: 3

Macromolecules

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
Capsid protein VP1	A	302	Poliovirus 1	Mutation(s): 0
UniProt
Find proteins for P03300 (Poliovirus type 1 (strain Mahoney)) Explore P03300 Go to UniProtKB: P03300
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P03300
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

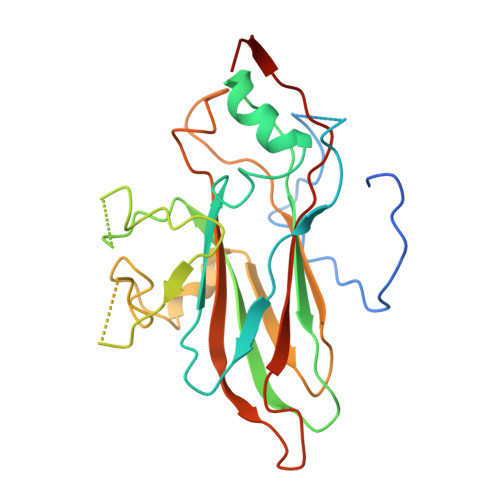

Capsid protein VP2	B	272	Poliovirus 1	Mutation(s): 0
UniProt
Find proteins for P03300 (Poliovirus type 1 (strain Mahoney)) Explore P03300 Go to UniProtKB: P03300
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P03300
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 3
Molecule	Chains	Sequence Length	Organism	Details	Image

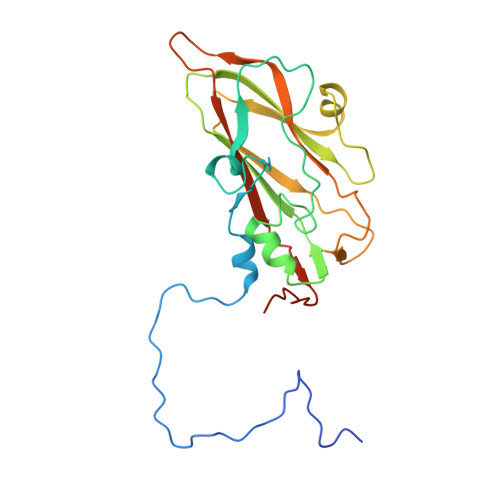

Capsid protein VP3	C	238	Poliovirus 1	Mutation(s): 0
UniProt
Find proteins for P03300 (Poliovirus type 1 (strain Mahoney)) Explore P03300 Go to UniProtKB: P03300
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P03300
Sequence Annotations Expand
Reference Sequence

Experimental Data & Validation

Experimental Data

Method: ELECTRON MICROSCOPY
Resolution: 2.95 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
MODEL REFINEMENT	PHENIX	1.19.2_4158
RECONSTRUCTION	cryoSPARC

Structure Validation

View Full Validation Report

Entry History & Funding Information

Deposition Data

Released Date: 2026-03-04

Deposition Author(s):

Funding Organization	Location	Grant Number
Chinese Academy of Sciences	China	--

Revision History (Full details and data files)

Version 1.0: 2026-03-04
Type: Initial release
