29UN | pdb_000029un

Mo-Nitrogenase, MoFe protein, P1+ redox state, -200 mV

PDB DOI: https://doi.org/10.2210/pdb29UN/pdb

Classification: OXIDOREDUCTASE
Organism(s): Azotobacter vinelandii DJ
Expression System: Azotobacter vinelandii DJ
Mutation(s): No

Deposited: 2026-04-08 Released: 2026-09-02
Deposition Author(s): Laxmi, S., Seefeldt, L.C., Carr, S.B., Vincent, K.A.
Funding Organization(s): Biotechnology and Biological Sciences Research Council (BBSRC), Department of Energy (DOE, United States)

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 2.00 Å
R-Value Free:
0.222 (Depositor)
R-Value Work:
0.196 (Depositor)
R-Value Observed:
0.197 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation

Currently 29UN does not have a validation slider image.

This is version 1.0 of the entry. See complete history.

Literature

Structural Characterization of Four Redox States of the P-cluster in Molybdenum Nitrogenase via Electrochemical Control of Crystals

Laxmi, S., Myers, W.K., Yang, Z.Y., Seefeldt, L.C., Carr, S.B., Vincent, K.A.

(2026) J Am Chem Soc

DOI: https://doi.org/10.1021/jacs.6c08522

Macromolecule Content

Total Structure Weight: 474.42 kDa
Atom Count: 33,678
Modeled Residue Count: 3,996
Deposited Residue Count: 4,112
Unique protein chains: 2

Macromolecules

Find similar proteins by:

| 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

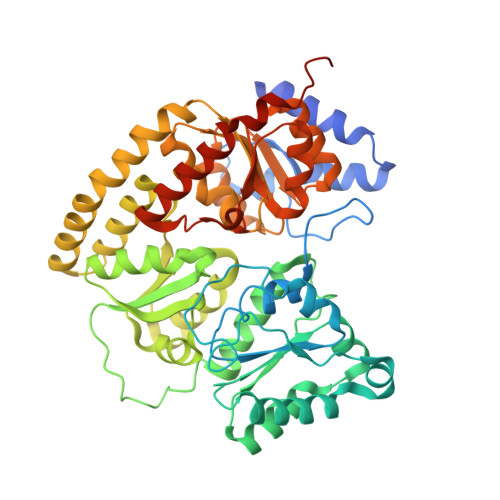

Nitrogenase molybdenum-iron protein alpha chain	A [auth E], C [auth A], E [auth C], G	505	Azotobacter vinelandii DJ	Mutation(s): 0 Gene Names: nifD EC: 1.18.6.1
UniProt
Find proteins for P07328 (Azotobacter vinelandii) Explore P07328 Go to UniProtKB: P07328
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P07328
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

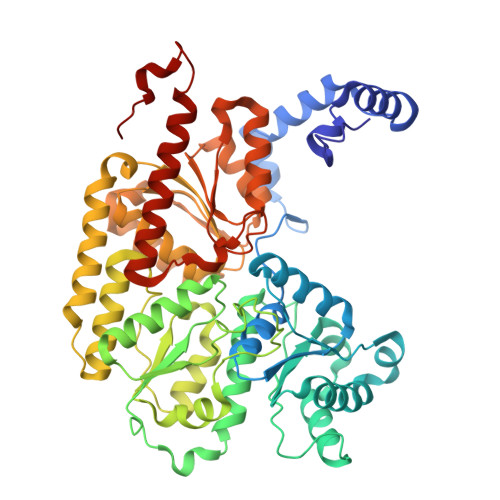

Nitrogenase molybdenum-iron protein beta chain	B [auth F], D [auth B], F [auth D], H	523	Azotobacter vinelandii DJ	Mutation(s): 0 Gene Names: nifK EC: 1.18.6.1
UniProt
Find proteins for P07329 (Azotobacter vinelandii) Explore P07329 Go to UniProtKB: P07329
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P07329
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 6 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
ICS( Subject of Investigation/LOI) Query on ICS Download:Ideal Coordinates CCD File SDF format, chain EA [auth C] SDF format, chain J [auth E] SDF format, chain PA [auth G] SDF format, chain T [auth A] MOL2 format, chain EA [auth C] MOL2 format, chain J [auth E] MOL2 format, chain PA [auth G] MOL2 format, chain T [auth A] mmCIF format, chain EA [auth C] mmCIF format, chain J [auth E] mmCIF format, chain PA [auth G] mmCIF format, chain T [auth A]	EA [auth C], J [auth E], PA [auth G], T [auth A]	iron-sulfur-molybdenum cluster with interstitial carbon C Fe₇ Mo S₉ DDQFAOMIVKLFON-UHFFFAOYSA-N		Interactions Focus chain EA [auth C] Focus chain J [auth E] Focus chain PA [auth G] Focus chain T [auth A]
1CL( Subject of Investigation/LOI) Query on 1CL Download:Ideal Coordinates CCD File SDF format, chain GA [auth D] SDF format, chain L [auth F] SDF format, chain RA [auth H] SDF format, chain X [auth B] MOL2 format, chain GA [auth D] MOL2 format, chain L [auth F] MOL2 format, chain RA [auth H] MOL2 format, chain X [auth B] mmCIF format, chain GA [auth D] mmCIF format, chain L [auth F] mmCIF format, chain RA [auth H] mmCIF format, chain X [auth B]	GA [auth D], L [auth F], RA [auth H], X [auth B]	FE(8)-S(7) CLUSTER, OXIDIZED Fe₈ S₇ JKVMXLBGZBULKV-UHFFFAOYSA-N		Interactions Focus chain GA [auth D] Focus chain L [auth F] Focus chain RA [auth H] Focus chain X [auth B]
HCA Query on HCA Download:Ideal Coordinates CCD File SDF format, chain DA [auth C] SDF format, chain I [auth E] SDF format, chain OA [auth G] SDF format, chain S [auth A] MOL2 format, chain DA [auth C] MOL2 format, chain I [auth E] MOL2 format, chain OA [auth G] MOL2 format, chain S [auth A] mmCIF format, chain DA [auth C] mmCIF format, chain I [auth E] mmCIF format, chain OA [auth G] mmCIF format, chain S [auth A]	DA [auth C], I [auth E], OA [auth G], S [auth A]	3-HYDROXY-3-CARBOXY-ADIPIC ACID C₇ H₁₀ O₇ XKJVEVRQMLKSMO-SSDOTTSWSA-N		Interactions Focus chain DA [auth C] Focus chain I [auth E] Focus chain OA [auth G] Focus chain S [auth A]
GOL Query on GOL Download:Ideal Coordinates CCD File SDF format, chain BA [auth B] SDF format, chain CA [auth B] SDF format, chain HA [auth D] SDF format, chain IA [auth D] SDF format, chain JA [auth D] SDF format, chain M [auth F] SDF format, chain MA [auth D] SDF format, chain P [auth F] SDF format, chain R [auth A] SDF format, chain TA [auth H] SDF format, chain UA [auth H] SDF format, chain VA [auth H] SDF format, chain W [auth B] SDF format, chain XA [auth H] SDF format, chain Y [auth B] SDF format, chain Z [auth B] MOL2 format, chain BA [auth B] MOL2 format, chain CA [auth B] MOL2 format, chain HA [auth D] MOL2 format, chain IA [auth D] MOL2 format, chain JA [auth D] MOL2 format, chain M [auth F] MOL2 format, chain MA [auth D] MOL2 format, chain P [auth F] MOL2 format, chain R [auth A] MOL2 format, chain TA [auth H] MOL2 format, chain UA [auth H] MOL2 format, chain VA [auth H] MOL2 format, chain W [auth B] MOL2 format, chain XA [auth H] MOL2 format, chain Y [auth B] MOL2 format, chain Z [auth B] mmCIF format, chain BA [auth B] mmCIF format, chain CA [auth B] mmCIF format, chain HA [auth D] mmCIF format, chain IA [auth D] mmCIF format, chain JA [auth D] mmCIF format, chain M [auth F] mmCIF format, chain MA [auth D] mmCIF format, chain P [auth F] mmCIF format, chain R [auth A] mmCIF format, chain TA [auth H] mmCIF format, chain UA [auth H] mmCIF format, chain VA [auth H] mmCIF format, chain W [auth B] mmCIF format, chain XA [auth H] mmCIF format, chain Y [auth B] mmCIF format, chain Z [auth B]	BA [auth B] CA [auth B] HA [auth D] IA [auth D] JA [auth D] BA [auth B], CA [auth B], HA [auth D], IA [auth D], JA [auth D], M [auth F], MA [auth D], P [auth F], R [auth A], TA [auth H], UA [auth H], VA [auth H], W [auth B], XA [auth H], Y [auth B], Z [auth B]	GLYCEROL C₃ H₈ O₃ PEDCQBHIVMGVHV-UHFFFAOYSA-N		Interactions Focus chain BA [auth B] Focus chain CA [auth B] Focus chain HA [auth D] Focus chain IA [auth D] Focus chain JA [auth D] Focus chain M [auth F] Focus chain MA [auth D] Focus chain P [auth F] Focus chain R [auth A] Focus chain TA [auth H] Focus chain UA [auth H] Focus chain VA [auth H] Focus chain W [auth B] Focus chain XA [auth H] Focus chain Y [auth B] Focus chain Z [auth B]
ACT Query on ACT Download:Ideal Coordinates CCD File SDF format, chain AA [auth B] SDF format, chain KA [auth D] SDF format, chain LA [auth D] SDF format, chain N [auth F] SDF format, chain NA [auth D] SDF format, chain O [auth F] SDF format, chain Q [auth F] SDF format, chain SA [auth H] SDF format, chain U [auth A] SDF format, chain WA [auth H] MOL2 format, chain AA [auth B] MOL2 format, chain KA [auth D] MOL2 format, chain LA [auth D] MOL2 format, chain N [auth F] MOL2 format, chain NA [auth D] MOL2 format, chain O [auth F] MOL2 format, chain Q [auth F] MOL2 format, chain SA [auth H] MOL2 format, chain U [auth A] MOL2 format, chain WA [auth H] mmCIF format, chain AA [auth B] mmCIF format, chain KA [auth D] mmCIF format, chain LA [auth D] mmCIF format, chain N [auth F] mmCIF format, chain NA [auth D] mmCIF format, chain O [auth F] mmCIF format, chain Q [auth F] mmCIF format, chain SA [auth H] mmCIF format, chain U [auth A] mmCIF format, chain WA [auth H]	AA [auth B] KA [auth D] LA [auth D] N [auth F] NA [auth D] AA [auth B], KA [auth D], LA [auth D], N [auth F], NA [auth D], O [auth F], Q [auth F], SA [auth H], U [auth A], WA [auth H]	ACETATE ION C₂ H₃ O₂ QTBSBXVTEAMEQO-UHFFFAOYSA-M		Interactions Focus chain AA [auth B] Focus chain KA [auth D] Focus chain LA [auth D] Focus chain N [auth F] Focus chain NA [auth D] Focus chain O [auth F] Focus chain Q [auth F] Focus chain SA [auth H] Focus chain U [auth A] Focus chain WA [auth H]
CL Query on CL Download:Ideal Coordinates CCD File SDF format, chain FA [auth C] SDF format, chain K [auth E] SDF format, chain QA [auth G] SDF format, chain V [auth A] MOL2 format, chain FA [auth C] MOL2 format, chain K [auth E] MOL2 format, chain QA [auth G] MOL2 format, chain V [auth A] mmCIF format, chain FA [auth C] mmCIF format, chain K [auth E] mmCIF format, chain QA [auth G] mmCIF format, chain V [auth A]	FA [auth C], K [auth E], QA [auth G], V [auth A]	CHLORIDE ION Cl VEXZGXHMUGYJMC-UHFFFAOYSA-M		Interactions Focus chain FA [auth C] Focus chain K [auth E] Focus chain QA [auth G] Focus chain V [auth A]

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 2.00 Å
R-Value Free: 0.222 (Depositor)
R-Value Work: 0.196 (Depositor)
R-Value Observed: 0.197 (Depositor)

Space Group: P 1 2₁ 1

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 84.136	α = 90
b = 156.823	β = 89.985
c = 202.318	γ = 90

Software Package:

Software Name	Purpose
PHENIX	refinement
DIALS	data reduction
Aimless	data scaling
PHASER	phasing

Structure Validation

Currently 29UN does not have a validation slider image.

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2026-09-02

Deposition Author(s):

Funding Organization	Location	Grant Number
Biotechnology and Biological Sciences Research Council (BBSRC)	United Kingdom	BB/X002624/1
Department of Energy (DOE, United States)	United States	DE-SC0010687
