37NP | pdb_000037np

Tetrameric structure of TM6SF2

PDB DOI: https://doi.org/10.2210/pdb37NP/pdb
EM Map EMD-78328: EMDB EMDataResource

Classification: LIPID TRANSPORT
Organism(s): Mus musculus
Expression System: Homo sapiens
Mutation(s): No

Deposited: 2026-07-28 Released: 2026-10-14
Deposition Author(s): Hong, S., Li, X.
Funding Organization(s): National Institutes of Health/National Institute of Diabetes and Digestive and Kidney Disease (NIH/NIDDK)

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 3.64 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

Validation slider image for 37NP

This is version 1.0 of the entry. See complete history.

Literature

Tetrameric structure of TM6SF2

Hong, S., Li, X.

To be published.

Macromolecule Content

Total Structure Weight: 173.92 kDa
Atom Count: 9,908
Modeled Residue Count: 1,207
Deposited Residue Count: 1,512
Unique protein chains: 1

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

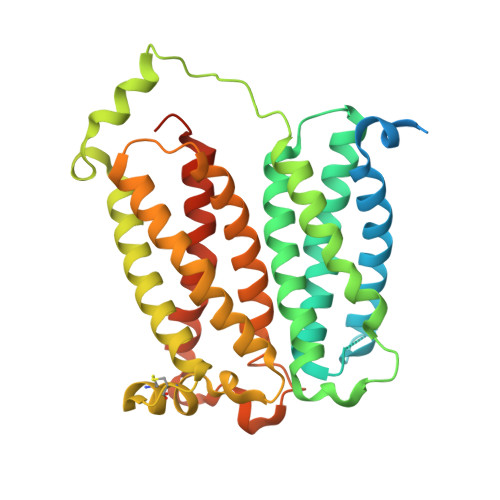

Transmembrane 6 superfamily member 2	A, B, C, D	378	Mus musculus	Mutation(s): 0 Gene Names: Tm6sf2
UniProt & NIH Common Fund Data Resources
Find proteins for E9QM19 (Mus musculus) Explore E9QM19 Go to UniProtKB: E9QM19
IMPC: MGI:1933210
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	E9QM19
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
CLR (Subject of Investigation/LOI) Query on CLR Download:Ideal Coordinates CCD File SDF format, chain H [auth D] SDF format, chain G [auth C] SDF format, chain F [auth B] SDF format, chain E [auth A] MOL2 format, chain H [auth D] MOL2 format, chain G [auth C] MOL2 format, chain F [auth B] MOL2 format, chain E [auth A] mmCIF format, chain H [auth D] mmCIF format, chain G [auth C] mmCIF format, chain F [auth B] mmCIF format, chain E [auth A]	E [auth A], F [auth B], G [auth C], H [auth D]	CHOLESTEROL C₂₇ H₄₆ O HVYWMOMLDIMFJA-DPAQBDIFSA-N		Interactions Focus chain E [auth A] Focus chain F [auth B] Focus chain G [auth C] Focus chain H [auth D] Interactions & Density Focus chain E [auth A] Focus chain F [auth B] Focus chain G [auth C] Focus chain H [auth D]

Experimental Data & Validation

Experimental Data

Method: ELECTRON MICROSCOPY
Resolution: 3.64 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
MODEL REFINEMENT	PHENIX	1.21_5207
RECONSTRUCTION	cryoSPARC	V4.4.1

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2026-10-14

Deposition Author(s):

Funding Organization	Location	Grant Number
National Institutes of Health/National Institute of Diabetes and Digestive and Kidney Disease (NIH/NIDDK)	United States	NIH-R01DK090066

Revision History (Full details and data files)

Version 1.0: 2026-10-14
Type: Initial release
