8R7J | pdb_00008r7j

Cryo-EM structure of the human TREX-2 complex

• PDB DOI: https://doi.org/10.2210/pdb8R7J/pdb
• EM Map EMD-18977: EMDB EMDataResource

• Classification: GENE REGULATION
• Organism(s): Homo sapiens
• Expression System: Escherichia coli BL21(DE3)
• Mutation(s): No


• Deposited: 2023-11-25 Released: 2025-06-11
• Deposition Author(s): Hohmann, U., Graf, M., Plaschka, C.
• Funding Organization(s): European Research Council (ERC), H2020 Marie Curie Actions of the European Commission, European Molecular Biology Organization (EMBO)

---

Experimental Data Snapshot

• Method: ELECTRON MICROSCOPY
• Resolution: 3.50 Å
• Aggregation State: PARTICLE
• Reconstruction Method: SINGLE PARTICLE

Literature

A molecular switch orchestrates the export of human messenger RNA

Hohmann, U., Graf, M., Brennecke, J., Plaschka, C.

To be published.

Biological Assembly 1

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Hetero 3-mer - A1B1C1

Biological assembly 1 assigned by authors and generated by (software)

Biological Assembly Evidence: electron microscopy

Macromolecule Content

• Total Structure Weight: 102.54 kDa
• Atom Count: 6,042
• Modeled Residue Count: 754
• Deposited Residue Count: 892
• Unique protein chains: 3

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
Germinal-center associated nuclear protein	A	423	Homo sapiens	Mutation(s): 0  Gene Names: MCM3AP, GANP, KIAA0572, MAP80 EC: 2.3.1.48 (PDB Primary Data), 2.3.1 (PDB Primary Data)
UniProt & NIH Common Fund Data Resources
Find proteins for O60318 (Homo sapiens) Explore O60318  Go to UniProtKB:  O60318
PHAROS:  O60318 GTEx:  ENSG00000160294

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image
PCI domain-containing protein 2	B	399	Homo sapiens	Mutation(s): 0  Gene Names: PCID2, HT004
UniProt & NIH Common Fund Data Resources
Find proteins for Q5JVF3 (Homo sapiens) Explore Q5JVF3  Go to UniProtKB:  Q5JVF3
PHAROS:  Q5JVF3 GTEx:  ENSG00000126226

Entity ID: 3
Molecule	Chains	Sequence Length	Organism	Details	Image

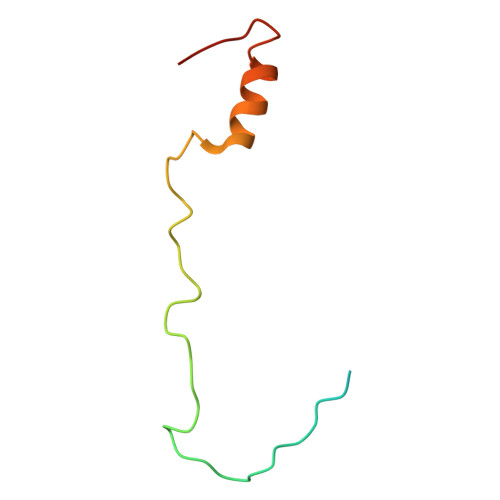

26S proteasome complex subunit SEM1	C	70	Homo sapiens	Mutation(s): 0  Gene Names: SEM1, C7orf76, DSS1, SHFDG1, SHFM1
UniProt & NIH Common Fund Data Resources
Find proteins for P60896 (Homo sapiens) Explore P60896  Go to UniProtKB:  P60896
PHAROS:  P60896 GTEx:  ENSG00000127922

Experimental Data & Validation

Experimental Data

• Method: ELECTRON MICROSCOPY
• Resolution: 3.50 Å
• Aggregation State: PARTICLE
• Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
MODEL REFINEMENT	PHENIX	1.20.1_4487:

Structure Validation

Entry History & Funding Information

Deposition Data

• Released Date: 2025-06-11
Deposition Author(s): Hohmann, U., Graf, M., Plaschka, C.

---

Funding Organization	Location	Grant Number
European Research Council (ERC)	European Union	949081
H2020 Marie Curie Actions of the European Commission	European Union	896416
European Molecular Biology Organization (EMBO)	European Union	ALTF_1175-2019

Revision History

• Version 1.0: 2025-06-11
  Type: Initial release
