8SBA | pdb_00008sba

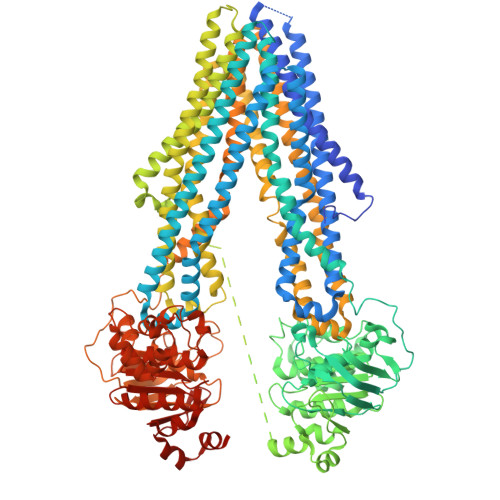

CryoEM structure of P-Glycoprotein in inward facing 2 state under continuous turnover conditions with vinblastine

  • Classification: TRANSPORT PROTEIN
  • Organism(s): Homo sapiens
  • Expression System: Homo sapiens
  • Mutation(s): No

  • Deposited: 2023-04-02 Released: 2025-04-23
  • Deposition Author(s): Culbertson, A., Liao, M.
  • Funding Organization(s): National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)

Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 3.90 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

wwPDB Validation   3D Report Full Report


This is version 1.1 of the entry. See complete history


Literature

Cryo-EM of human P-glycoprotein reveals an intermediate occluded conformation during active drug transport.

Culbertson, A.T.Liao, M.

(2025) Nat Commun 16: 3619-3619

  • DOI: https://doi.org/10.1038/s41467-025-58561-4
  • Primary Citation of Related Structures:
    8GMG, 8GMJ, 8SA0, 8SA1, 8SB7, 8SB8, 8SB9, 8SBA

  • PubMed Abstract:

    P-glycoprotein (Pgp) is an important human multidrug transporter that contributes to pharmacokinetics and multidrug resistance. Despite decades of study, the conformation transition cycle of Pgp undergoing active drug transport is not defined, thus the precise relevance of all available Pgp structures to uninterrupted multidrug transport remains unclear. Here, we use cryo-EM of membrane-embedded human Pgp under continuous turnover conditions to analyze the conformational ensembles of Pgp transporting distinct substrates. These results delineate multiple conformations including inward-facing and closed conformations, highlighting the occluded conformation as a critical intermediate state between transporter closure and substrate release. A combination of structural, functional, and computational studies reveals the transmembrane helices 4 and 10 undergoing drastic rearrangement to coordinate substrate binding, occlusion, and release, and identifies a peripheral site involved in substrate capture and Pgp inhibition. Together, our results provide a set of snapshots of Pgp undergoing continuous drug transport, unveiling the intricate interplay between transporter dynamics and drug movement, and shed light on the mechanism of polyspecificity.


  • Organizational Affiliation
    • Department of Cell Biology, Harvard Medical School, Boston, MA, USA.

Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
ATP-dependent translocase ABCB11,280Homo sapiensMutation(s): 0
Gene Names: ABCB1MDR1PGY1
EC: 7.6.2.2 (PDB Primary Data), 7.6.2.1 (PDB Primary Data)
UniProt & NIH Common Fund Data Resources
Find proteins for P08183 (Homo sapiens)
Explore P08183
Go to UniProtKB:  P08183
PHAROS:  P08183
GTEx:  ENSG00000085563
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP08183
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 3 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
VLB (Subject of Investigation/LOI)
Query on VLB

Download Ideal Coordinates CCD File
E [auth A],
F [auth A]
(2ALPHA,2'BETA,3BETA,4ALPHA,5BETA)-VINCALEUKOBLASTINE
C46 H58 N4 O9
JXLYSJRDGCGARV-CFWMRBGOSA-N
ATP (Subject of Investigation/LOI)
Query on ATP

Download Ideal Coordinates CCD File
B [auth A],
G [auth A]
ADENOSINE-5'-TRIPHOSPHATE
C10 H16 N5 O13 P3
ZKHQWZAMYRWXGA-KQYNXXCUSA-N
MG (Subject of Investigation/LOI)
Query on MG

Download Ideal Coordinates CCD File
C [auth A],
D [auth A]
MAGNESIUM ION
Mg
JLVVSXFLKOJNIY-UHFFFAOYSA-N
Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 3.90 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE
EM Software:
TaskSoftware PackageVersion
MODEL REFINEMENTPHENIX

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)United States--

Revision History  (Full details and data files)

  • Version 1.0: 2025-04-23
    Type: Initial release
  • Version 1.1: 2025-06-04
    Changes: Data collection
