9A0M | pdb_00009a0m

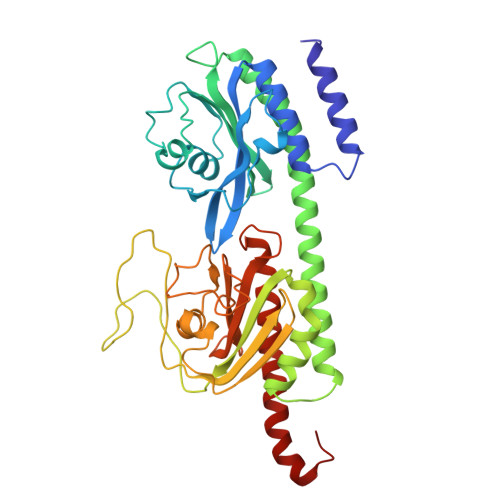

Integrative structure of cGMP-GAFab complex


Integrative Structure Snapshot

  • Multi-Scale: No
  • Multi-State: No
  • Ordered-State: No
  • Deposited Models: 1
  • Representative Model: 1

This is version 1.0 of the entry. See complete history


Literature

Structural analysis of the regulatory GAF domains of cGMP phosphodiesterase elucidates the allosteric communication pathway

Gupta RLiu YWang HNordyke CTPuterbaugh RZCui WVarga KChu FKe HVashisth HCote RH

(2020) J Mol Biol 432: 5765-5783

  • DOI: https://doi.org/10.1016/j.jmb.2020.08.026
  • Primary Citation of Related Structures:
    6X88, 9A0L, 9A0M, 9A0N, 9A0O

  • PubMed Abstract:

    Regulation of photoreceptor phosphodiesterase (PDE6) activity is responsible for the speed, sensitivity, and recovery of the photoresponse during visual signaling in vertebrate photoreceptor cells. It is hypothesized that physiological differences in the light responsiveness of rods and cones may result in part from differences in the structure and regulation of the distinct isoforms of rod and cone PDE6. Although rod and cone PDE6 catalytic subunits share a similar domain organization consisting of tandem GAF domains (GAFa and GAFb) and a catalytic domain, cone PDE6 is a homodimer whereas rod PDE6 consists of two homologous catalytic subunits. Here we provide the x-ray crystal structure of cone GAFab regulatory domain solved at 3.3 Å resolution, in conjunction with chemical cross-linking and mass spectrometric analysis of conformational changes to GAFab induced upon binding of cGMP and the PDE6 inhibitory γ-subunit (Pγ). Ligand-induced changes in cross-linked residues implicate multiple conformational changes in the GAFa and GAFb domains in forming an allosteric communication network. Molecular dynamics simulations of cone GAFab revealed differences in conformational dynamics of the two subunits forming the homodimer and allosteric perturbations on cGMP binding. Cross-linking of Pγ to GAFab in conjunction with solution NMR spectroscopy of isotopically labeled Pγ identified the central polycationic region of Pγ interacting with the GAFb domain. These results provide a mechanistic basis for developing allosteric activators of PDE6 with therapeutic implications for halting the progression of several retinal degenerative diseases.


  • Organizational Affiliation
    • Department of Molecular, Cellular and Biomedical Sciences, University of New Hampshire, 46 College Rd., Durham, NH 03824, USA.

Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
GAFab
A, B
399Gallus gallusMutation(s): 0
Gene Names: PDE6C
EC: 3.1.4.35
UniProt
Find proteins for P52731 (Gallus gallus)
Explore P52731
Go to UniProtKB:  P52731
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP52731
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 1 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
35G
Query on 35G

Download Ideal Coordinates CCD File
C [auth A],
D [auth B]
GUANOSINE-3',5'-MONOPHOSPHATE
C10 H12 N5 O7 P
ZOOGRGPOEVQQDX-UUOKFMHZSA-N
Experimental Data & Validation

Integrative Structure Snapshot

  • Multi-Scale: No
  • Multi-State: No
  • Ordered-State: No
  • Deposited Models: 1
  • Representative Model: 1

Structure Validation

View Full Validation Report

View Summary Validation Report



Entry History

Deposition Data

Revision History  (Full details and data files)

  • Version 1.0: 2022-06-10
    Type: Initial release
