9DKR | pdb_00009dkr

Crystal structure of CcbD complexed with PCP domain of CcbZ

• PDB DOI: https://doi.org/10.2210/pdb9DKR/pdb

• Classification: BIOSYNTHETIC PROTEIN
• Organism(s): Streptomyces caelestis
• Expression System: Escherichia coli
• Mutation(s): No


• Deposited: 2024-09-09 Released: 2025-10-01
• Deposition Author(s): Heberlig, G.W., Podust, L.M., Burkart, M.D.
• Funding Organization(s): National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS), National Institutes of Health/National Heart, Lung, and Blood Institute (NIH/NHLBI)

---

Experimental Data Snapshot

• Method: X-RAY DIFFRACTION
• Resolution: 1.66 Å
• R-Value Free:
  0.214 (Depositor), 0.212 (DCC)
• R-Value Work:
  0.184 (Depositor), 0.183 (DCC)

Literature

Crystal structure of CcbD complexed with PCP domain of CcbZ

Heberlig, G.W., Podust, L.M., Burkart, M.D.

To be published.

Biological Assembly 1

Global Symmetry: Cyclic - C2  (Explore in 3D)
Global Stoichiometry: Hetero 4-mer - A2B2

Biological assembly 1 assigned by authors and generated by PISA (software)

Macromolecule Content

• Total Structure Weight: 101.63 kDa
• Atom Count: 7,219
• Modeled Residue Count: 848
• Deposited Residue Count: 922
• Unique protein chains: 2

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

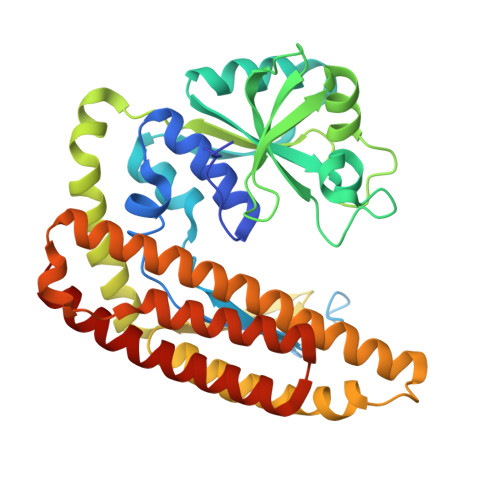

CcbD	A, B	357	Streptomyces caelestis	Mutation(s): 0  Gene Names: HDA41_002772
UniProt
Find proteins for E9JES9 (Streptomyces caelestis) Explore E9JES9  Go to UniProtKB:  E9JES9

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

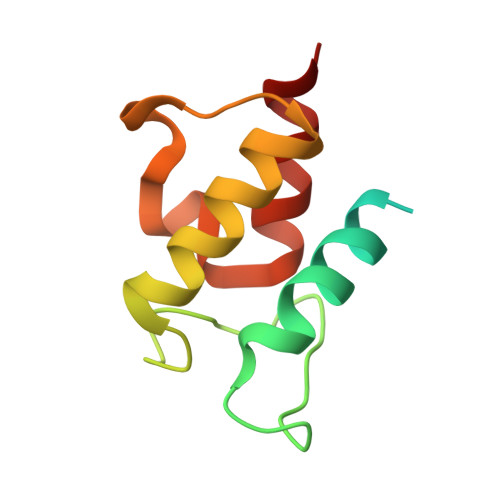

CcbZ	C, D	104	Streptomyces caelestis	Mutation(s): 0  Gene Names: HDA41_002769
UniProt
Find proteins for E9JES6 (Streptomyces caelestis) Explore E9JES6  Go to UniProtKB:  E9JES6

Small Molecules

Ligands 2 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram
PNS	G [auth C], H [auth D]	4'-PHOSPHOPANTETHEINE C11 H23 N2 O7 P S JDMUPRLRUUMCTL-VIFPVBQESA-N
ACT	E [auth A], F [auth B]	ACETATE ION C2 H3 O2 QTBSBXVTEAMEQO-UHFFFAOYSA-M

Experimental Data & Validation

Experimental Data

• Method: X-RAY DIFFRACTION
• Resolution: 1.66 Å
• R-Value Free:  0.214 (Depositor), 0.212 (DCC)
• R-Value Work:  0.184 (Depositor), 0.183 (DCC)

Space Group: P 2₁ 2₁ 2₁

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 86.14	α = 90
b = 98.956	β = 90
c = 123.312	γ = 90

Software Package:

Software Name	Purpose
REFMAC	refinement
XDS	data reduction
Aimless	data scaling
SHELX	phasing

Structure Validation

Entry History & Funding Information

Deposition Data

• Released Date: 2025-10-01
Deposition Author(s): Heberlig, G.W., Podust, L.M., Burkart, M.D.

---

Funding Organization	Location	Grant Number
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)	United States	R01GM095970
National Institutes of Health/National Heart, Lung, and Blood Institute (NIH/NHLBI)	United States	K12HL141956

Revision History

• Version 1.0: 2025-10-01
  Type: Initial release
