9DOP | pdb_00009dop

Inhibiting peptidylarginine deiminases (PAD1-4) by targeting a Ca2+ dependent allosteric binding site


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.44 Å
  • R-Value Free:
    0.293 (Depositor), 0.294 (DCC)
  • R-Value Work:
    0.215 (Depositor), 0.215 (DCC)
  • R-Value Observed:
    0.218 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 1.0 of the entry. See complete history


Literature

Inhibiting peptidylarginine deiminases (PAD1-4) by targeting a Ca 2+ dependent allosteric binding site.

Dakin, L.A.Xing, L.Hall, J.Ding, W.Vajdos, F.F.Pelker, J.W.Ramsey, S.Balbo, P.Sahasrabudhe, P.V.Banker, M.E.Choi, W.Y.Wright, S.W.Chang, J.S.Curto, J.M.Davoren, J.E.Drozda, S.E.Fennell, K.F.Futatsugi, K.Kortum, S.Lee, K.L.Liu, S.Lovering, F.Nicki, J.A.Trujillo, J.I.Vincent, F.Schnute, M.E.

(2025) Nat Commun 16: 4579-4579

  • DOI: https://doi.org/10.1038/s41467-025-59919-4
  • Primary Citation of Related Structures:
    9DOL, 9DOP, 9DPZ

  • PubMed Abstract:

    Peptidylarginine deiminases (PAD1-4) are calcium dependent enzymes responsible for protein citrullination, a post-translational modification converting arginine residues to citrulline. Elevated levels of citrullinated proteins have been associated with rheumatoid arthritis, neurodegenerative diseases, and cancers. Though highly selective PAD4 inhibitors have been described, inhibitors to the broader family currently are limited to covalent substrate analogs. Herein, we describe an allosteric binding pocket common to PAD1-4 suitable for the identification of potent, non-covalent enzyme inhibitors. A ligand-based virtual screen is utilized to identify a PAD4 inhibitor for which surface plasmon resonance confirms target binding but non-competitively with a known PAD4 ligand. We further show through co-crystal structure analysis that the ligand binds PAD4 at an allosteric pocket resulting in stabilization of a catalytically inactive, calcium-deficient enzyme conformation. A ligand designed based on this site potently inhibits all four PAD isozymes and prevents protein citrullination in neutrophils with a broader protein repertoire than observed with a PAD4-selective inhibitor.


  • Organizational Affiliation
    • Medicine Design, Pfizer Inc, Cambridge, MA, USA.

Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure

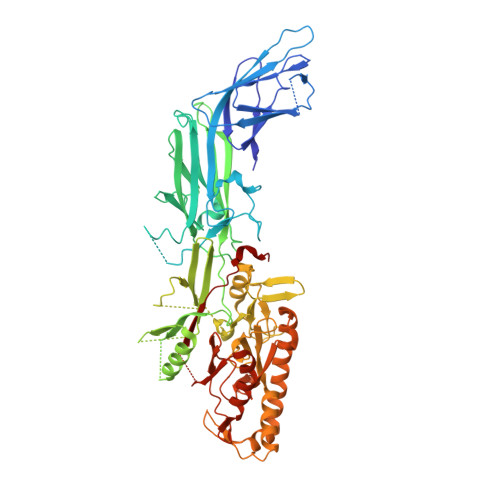

Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Protein-arginine deiminase type-4671Homo sapiensMutation(s): 3
Gene Names: PADI4PAD4PADI5PDI5
EC: 3.5.3.15
UniProt & NIH Common Fund Data Resources
Find proteins for Q9UM07 (Homo sapiens)
Explore Q9UM07
Go to UniProtKB:  Q9UM07
PHAROS:  Q9UM07
GTEx:  ENSG00000159339
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9UM07
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 2 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
A1BZK (Subject of Investigation/LOI)
Query on A1BZK

Download Ideal Coordinates CCD File
C [auth A](2R)-2-amino-2-{1-[(5M)-5-(3,5-dichloropyridin-2-yl)isoquinolin-1-yl]piperidin-4-yl}-1-(pyrrolidin-1-yl)ethan-1-one
C25 H27 Cl2 N5 O
XHMSDQXEIBTTBE-UHFFFAOYSA-N
CA
Query on CA

Download Ideal Coordinates CCD File
B [auth A]CALCIUM ION
Ca
BHPQYMZQTOCNFJ-UHFFFAOYSA-N
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.44 Å
  • R-Value Free:  0.293 (Depositor), 0.294 (DCC)
  • R-Value Work:  0.215 (Depositor), 0.215 (DCC)
  • R-Value Observed: 0.218 (Depositor)
Space Group: C 1 2 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 143.731α = 90
b = 59.733β = 122.441
c = 111.149γ = 90
Software Package:
Software NamePurpose
PHENIXrefinement
XDSdata reduction
STARANISOdata scaling
PHASERphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History & Funding Information

Deposition Data

  • Released Date: 2025-05-28
  • Deposition Author(s): Liu, S.

Funding OrganizationLocationGrant Number
Not funded--

Revision History  (Full details and data files)

  • Version 1.0: 2025-05-28
    Type: Initial release
