9JZB | pdb_00009jzb

PfDXR - Mn2+ - MAMK251 ternary complex


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.47 Å
  • R-Value Free:
    0.219 (Depositor), 0.220 (DCC)
  • R-Value Work:
    0.195 (Depositor), 0.195 (DCC)
  • R-Value Observed:
    0.196 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


This is version 1.0 of the entry. See complete history


Literature

The Diverse Binding Modes Explain the Nanomolar Levels of Inhibitory Activities Against 1-Deoxy-d-Xylulose 5-Phosphate Reductoisomerase from Plasmodium falciparum Exhibited by Reverse Hydroxamate Analogs of Fosmidomycin with Varying N -Substituents.

Takada, S.Abdullaziz, M.A.Hofmann, S.Knak, T.Ozawa, S.I.Sakamoto, Y.Kurz, T.Tanaka, N.

(2024) Molecules 30

  • DOI: https://doi.org/10.3390/molecules30010072
  • Primary Citation of Related Structures:
    9JZ7, 9JZ8, 9JZ9, 9JZA, 9JZB, 9JZC, 9JZD, 9JZE

  • PubMed Abstract:

    It is established that reverse hydroxamate analogs of fosmidomycin inhibit the growth of Plasmodium falciparum by inhibiting 1-deoxy-d-xylulose 5-phosphate reductoisomerase (DXR), the second enzyme of the non-mevalonate pathway, which is absent in humans. Recent biochemical studies have demonstrated that novel reverse fosmidomycin analogs with phenylalkyl substituents at the hydroxamate nitrogen exhibit inhibitory activities against Pf DXR at the nanomolar level. Moreover, crystallographic analyses have revealed that the phenyl moiety of the N -phenylpropyl substituent is accommodated in a previously unidentified subpocket within the active site of Pf DXR. In this study, the crystal structures of Pf DXR in complex with a series of reverse N -phenylalkyl derivatives of fosmidomycin were determined to ascertain whether the high inhibitory activities of the derivatives are consistently attributable to the utilization of the subpocket of Pf DXR. While all reverse fosmidomycin derivatives with an N -substituted phenylalkyl group exhibit potent inhibitory activity against Pf DXR, the present crystal structure analyses revealed that their binding modes to the Pf DXR are not uniform. In these compounds, the nanomolar inhibitory activities appear to be driven by binding modes distinct from that observed for the inhibitor containing the N -phenylpropyl group. The structural information obtained in this study will provide a basis for further design of fosmidomycin derivatives.


  • Organizational Affiliation
    • School of Pharmacy, Kitasato University, Minato-ku, Tokyo 108-8641, Japan.

Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage

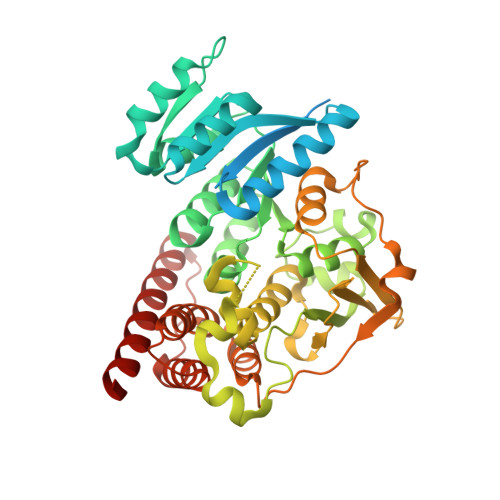

1-deoxy-D-xylulose 5-phosphate reductoisomerase, apicoplastic
A, B
488Plasmodium falciparumMutation(s): 0
Gene Names: DXR
EC: 1.1.1.267
UniProt
Find proteins for O96693 (Plasmodium falciparum (isolate HB3))
Explore O96693
Go to UniProtKB:  O96693
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupO96693
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 4 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
A1L43 (Subject of Investigation/LOI)
Query on A1L43

Download Ideal Coordinates CCD File
D [auth A],
G [auth B]
[(1~{S})-4-oxidanylidene-4-[oxidanyl(5-phenylpentyl)amino]-1-phenyl-butyl]phosphonic acid
C21 H28 N O5 P
AANJIYFRFCIZKZ-FQEVSTJZSA-N
GOL
Query on GOL

Download Ideal Coordinates CCD File
E [auth A],
K [auth B]
GLYCEROL
C3 H8 O3
PEDCQBHIVMGVHV-UHFFFAOYSA-N
MN (Subject of Investigation/LOI)
Query on MN

Download Ideal Coordinates CCD File
C [auth A],
F [auth B]
MANGANESE (II) ION
Mn
WAEMQWOKJMHJLA-UHFFFAOYSA-N
CA
Query on CA

Download Ideal Coordinates CCD File
H [auth B],
I [auth B],
J [auth B]
CALCIUM ION
Ca
BHPQYMZQTOCNFJ-UHFFFAOYSA-N
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.47 Å
  • R-Value Free:  0.219 (Depositor), 0.220 (DCC)
  • R-Value Work:  0.195 (Depositor), 0.195 (DCC)
  • R-Value Observed: 0.196 (Depositor)
Space Group: P 1 21 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 51.516α = 90
b = 76.395β = 92.46
c = 110.727γ = 90
Software Package:
Software NamePurpose
xia2data reduction
Cootmodel building
REFMACrefinement

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Japan Society for the Promotion of Science (JSPS)Japan--

Revision History  (Full details and data files)

  • Version 1.0: 2025-10-22
    Type: Initial release
