9KEV | pdb_00009kev

Cryo-EM structure of Mycobacterium tuberculosis transcription activation complex with six PhoP molecules (composite map)


Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 3.31 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

wwPDB Validation   3D Report Full Report


This is version 1.1 of the entry. See complete history


Literature

Structural insights into transcription regulation of the global OmpR/PhoB family regulator PhoP from Mycobacterium tuberculosis.

Shi, J.Feng, Z.Song, Q.Wen, A.Liu, T.Xu, L.Ye, Z.Xu, S.Gao, F.Xiao, L.Zhu, J.Das, K.Zhao, G.Li, J.Feng, Y.Lin, W.

(2025) Nat Commun 16: 1573-1573

  • DOI: https://doi.org/10.1038/s41467-025-56697-x
  • Primary Citation of Related Structures:
    9JI2, 9KET, 9KEU, 9KEV

  • PubMed Abstract:

    As a global transcription activator or repressor, the representative OmpR/PhoB family response regulator PhoP plays a crucial role in regulating bacterial pathogenicity and stress adaptation. However, the molecular mechanisms underlying the transcriptional regulation that define its differential functions remain largely unclear. In the present study, we determine three cryo-EM structures of Mycobacterium tuberculosis (Mtb) PhoP-dependent transcription activation complexes (PhoP-TACs) and build one preliminary cryo-EM structure model of Mtb PhoP-dependent transcription repression complex (PhoP-TRC). In PhoP-TACs, tandem PhoP dimers cooperatively recognize various types of promoters through conserved PhoP-PHO box interactions, which displace the canonical interactions between the -35 element and σ A R4 of RNA polymerase (RNAP), unraveling complex transcription activation mechanisms of PhoP. In PhoP-TRC, one PhoP dimer binds and significantly distorts the upstream PHO box of the promoter cross-talked with the global nitrogen regulator GlnR through the PhoP-PHO box, PhoP-GlnR and αCTD-DNA interactions. This unique binding of PhoP creates steric hindrances that prevent additional GlnR binding, positioning PhoP within a unique 'competitive occluding model', as supported by prior biochemical observations. Collectively, these findings reveal the dual molecular mechanisms of PhoP-dependent transcription regulation, and offer valuable insights for further exploration of the enormous PhoP-like OmpR/PhoB family response regulators.


  • Organizational Affiliation
    • School of Medicine, Nanjing University of Chinese Medicine, Department of Infectious Diseases, Nanjing Drum Tower Hospital, Nanjing, China. shijing301@njucm.edu.cn.

Macromolecules

Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
DNA-directed RNA polymerase subunit alpha
A, B
347Mycobacterium tuberculosis H37RvMutation(s): 0
Gene Names: rpoA
EC: 2.7.7.6
UniProt
Find proteins for P9WGZ1 (Mycobacterium tuberculosis (strain ATCC 25618 / H37Rv))
Explore P9WGZ1
Go to UniProtKB:  P9WGZ1
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP9WGZ1
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage

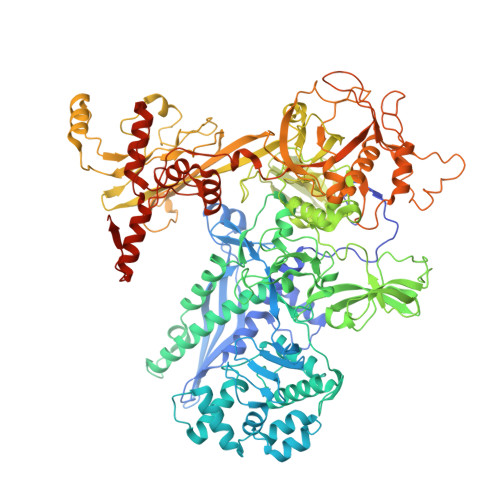

DNA-directed RNA polymerase subunit beta1,178Mycobacterium tuberculosis H37RvMutation(s): 0
Gene Names: rpoB
EC: 2.7.7.6
UniProt
Find proteins for P9WGY9 (Mycobacterium tuberculosis (strain ATCC 25618 / H37Rv))
Explore P9WGY9
Go to UniProtKB:  P9WGY9
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP9WGY9
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 3
MoleculeChains Sequence LengthOrganismDetailsImage

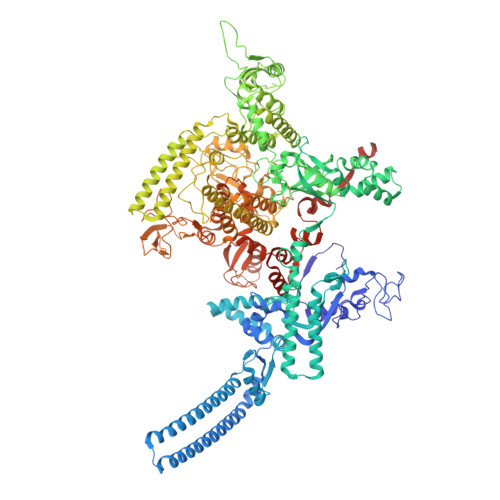

DNA-directed RNA polymerase subunit beta'1,316Mycobacterium tuberculosis H37RvMutation(s): 0
Gene Names: rpoC
EC: 2.7.7.6
UniProt
Find proteins for P9WGY7 (Mycobacterium tuberculosis (strain ATCC 25618 / H37Rv))
Explore P9WGY7
Go to UniProtKB:  P9WGY7
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP9WGY7
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 4
MoleculeChains Sequence LengthOrganismDetailsImage
DNA-directed RNA polymerase subunit omega110Mycobacterium tuberculosis H37RvMutation(s): 0
Gene Names: rpoZ
EC: 2.7.7.6
UniProt
Find proteins for P9WGY5 (Mycobacterium tuberculosis (strain ATCC 25618 / H37Rv))
Explore P9WGY5
Go to UniProtKB:  P9WGY5
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP9WGY5
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 7
MoleculeChains Sequence LengthOrganismDetailsImage
RNA polymerase sigma factor SigAH [auth F]528Mycobacterium tuberculosis H37RvMutation(s): 0
Gene Names: sigA
UniProt
Find proteins for P9WGI1 (Mycobacterium tuberculosis (strain ATCC 25618 / H37Rv))
Explore P9WGI1
Go to UniProtKB:  P9WGI1
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP9WGI1
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 8
MoleculeChains Sequence LengthOrganismDetailsImage

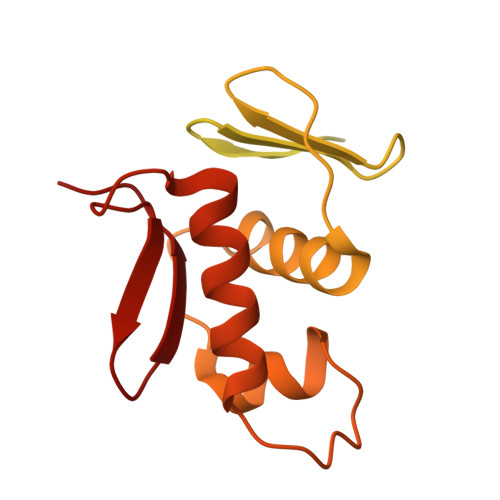

Possible two component system response transcriptional positive regulator PhoP247Mycobacterium tuberculosis H37RvMutation(s): 0
Gene Names: phoP
UniProt
Find proteins for P71814 (Mycobacterium tuberculosis (strain ATCC 25618 / H37Rv))
Explore P71814
Go to UniProtKB:  P71814
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP71814
Sequence Annotations
Expand
  • Reference Sequence
Find similar nucleic acids by:  (by identity cutoff)  |  3D Structure
Entity ID: 5
MoleculeChains LengthOrganismImage

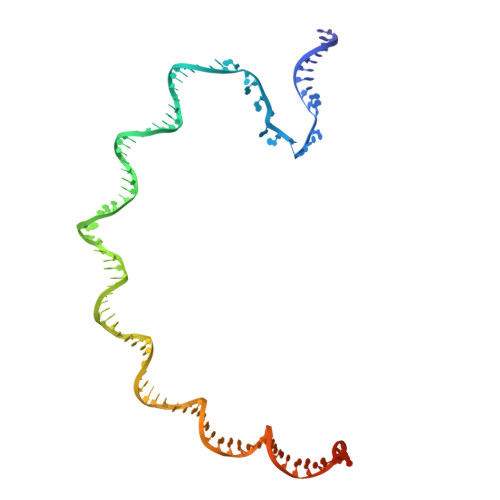

Non-template strand DNA of the promoterF [auth H]108Mycobacterium tuberculosis H37Rv
Sequence Annotations
Expand
  • Reference Sequence
Find similar nucleic acids by:  (by identity cutoff)  |  3D Structure
Entity ID: 6
MoleculeChains LengthOrganismImage
Template strand DNA of the promoter108Mycobacterium tuberculosis H37Rv
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 3.31 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE
EM Software:
TaskSoftware PackageVersion
MODEL REFINEMENTPHENIX1.20.1_4487:

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
National Natural Science Foundation of China (NSFC)China--

Revision History  (Full details and data files)

  • Version 1.0: 2025-03-05
    Type: Initial release
  • Version 1.1: 2025-03-12
    Changes: Data collection, Database references
