9LD6 | pdb_00009ld6

The complex structure of TkoKptA/DNA/NAD+

• PDB DOI: https://doi.org/10.2210/pdb9LD6/pdb
• NAKB: 9LD6

• Classification: TRANSFERASE/DNA
• Organism(s): Thermococcus kodakarensis KOD1, synthetic construct
• Expression System: Escherichia coli
• Mutation(s): No


• Deposited: 2025-01-05 Released: 2025-11-12
• Deposition Author(s): Cao, C.L., Yang, J., Zhang, W.Z., Gan, J.H.
• Funding Organization(s): National Natural Science Foundation of China (NSFC)

---

Experimental Data Snapshot

• Method: X-RAY DIFFRACTION
• Resolution: 2.01 Å
• R-Value Free:
  0.277 (Depositor), 0.274 (DCC)
• R-Value Work:
  0.234 (Depositor), 0.236 (DCC)
• R-Value Observed:
  0.237 (Depositor)

Starting Model: in silico

Literature

The complex structure of TkoKptA/DNA/NAD+

Cao, C.L., Yang, J., Zhang, W.Z., Gan, J.H.

To be published.

Biological Assembly 1

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Monomer - A1

Biological assembly 1 assigned by authors.

Biological Assembly Evidence: gel filtration

Macromolecule Content

• Total Structure Weight: 25.01 kDa
• Atom Count: 1,524
• Modeled Residue Count: 183
• Deposited Residue Count: 190
• Unique protein chains: 1
• Unique nucleic acid chains: 1

Macromolecules

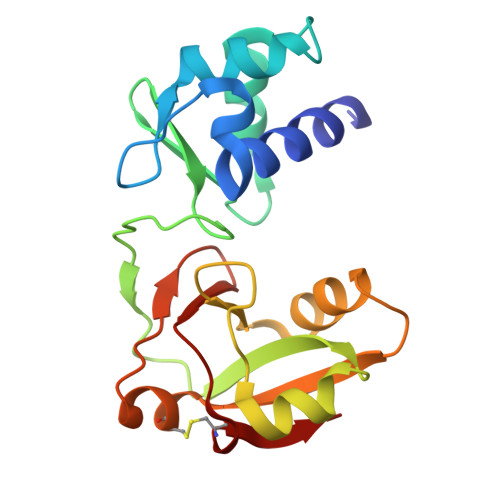

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
Probable RNA 2'-phosphotransferase	A	180	Thermococcus kodakarensis KOD1	Mutation(s): 0  Gene Names: kptA, TK0302 EC: 2.7.1
UniProt
Find proteins for Q5JFX3 (Thermococcus kodakarensis (strain ATCC BAA-918 / JCM 12380 / KOD1)) Explore Q5JFX3  Go to UniProtKB:  Q5JFX3

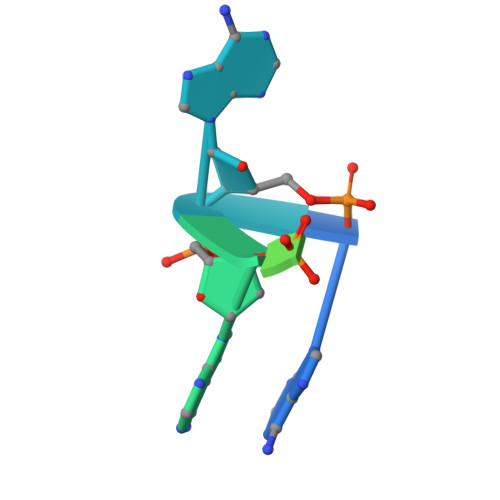

Entity ID: 2
Molecule	Chains	Length	Organism	Image
DNA (5'-D(*AP*AP*AP*AP*AP*AP*AP*AP*AP*A)-3')	B [auth C]	10	synthetic construct

Small Molecules

Ligands 3 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram
NAD (Subject of Investigation/LOI)	F [auth A]	NICOTINAMIDE-ADENINE-DINUCLEOTIDE C21 H27 N7 O14 P2 BAWFJGJZGIEFAR-NNYOXOHSSA-N
SO4 (Subject of Investigation/LOI)	C [auth A], D [auth A]	SULFATE ION O4 S QAOWNCQODCNURD-UHFFFAOYSA-L
GOL	E [auth A]	GLYCEROL C3 H8 O3 PEDCQBHIVMGVHV-UHFFFAOYSA-N

Experimental Data & Validation

Experimental Data

• Method: X-RAY DIFFRACTION
• Resolution: 2.01 Å
• R-Value Free:  0.277 (Depositor), 0.274 (DCC)
• R-Value Work:  0.234 (Depositor), 0.236 (DCC)
• R-Value Observed: 0.237 (Depositor)

Space Group: P 4₁ 2₁ 2

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 83.637	α = 90
b = 83.637	β = 90
c = 67.825	γ = 90

Software Package:

Software Name	Purpose
PHENIX	refinement
Aimless	data scaling
autoPROC	data reduction
PHASER	phasing

Structure Validation

Entry History & Funding Information

Deposition Data

• Released Date: 2025-11-12
Deposition Author(s): Cao, C.L., Yang, J., Zhang, W.Z., Gan, J.H.

---

Funding Organization	Location	Grant Number
National Natural Science Foundation of China (NSFC)	China	--

Revision History

• Version 1.0: 2025-11-12
  Type: Initial release
