9MJN | pdb_00009mjn

Near complete virion structure of bacteriophage PhiTE

• PDB DOI: https://doi.org/10.2210/pdb9MJN/pdb
• EM Map EMD-48317: EMDB EMDataResource

• Classification: VIRUS
• Organism(s): Pectobacterium phage phiTE
• Mutation(s): No


• Deposited: 2024-12-16 Released: 2025-04-16
• Deposition Author(s): Hodgkinson-Bean, J., Ayala, R.
• Funding Organization(s): Ministry of Agriculture, Forestry and Fisheries (MAFF), Japan Society for the Promotion of Science (JSPS)

---

Experimental Data Snapshot

• Method: ELECTRON MICROSCOPY
• Resolution: 12.7 Å
• Aggregation State: PARTICLE
• Reconstruction Method: SINGLE PARTICLE

Literature

Global structural survey of the flagellotropic myophage phi TE infecting agricultural pathogen Pectobacterium atrosepticum.

Hodgkinson-Bean, J., Ayala, R., Jayawardena, N., Rutter, G.L., Watson, B.N.J., Mayo-Munoz, D., Keal, J., Fineran, P.C., Wolf, M., Bostina, M.

(2025) Nat Commun 16: 3257-3257

• PubMed: 40188083
• DOI: https://doi.org/10.1038/s41467-025-58514-x
• Primary Citation of Related Structures:
  9CB9, 9CBA, 9CC7, 9CUL, 9CUY, 9MJN


• PubMed Abstract:


  Bacteriophages offer a promising alternative to drug-based treatments due to their effectiveness and host specificity. This is particularly important in agriculture as a biocontrol agent of plant diseases. Phage engineering is facilitated by structural knowledge. However, structural information regarding bacteriophages infecting plant pathogens is limited. Here, we present the cryo-EM structure of bacteriophage φTE that infects plant pathogen Pectobacterium atrosepticum. The structure reveals a distinct neck topology compared with other myophages, where tail terminator proteins compensate for reduced connectivity between sheath subunits. A contact network between tail fibers, the sheath initiator, and baseplate wedge proteins provides insights into triggers that transduce conformational changes from the baseplate to the sheath to orchestrate contraction. We observe two distinct oligomeric states of the tape measure protein (TMP), which is six-fold in regions proximal to the N-terminus and throughout most of the tail, while three-fold at the C-terminus, indicating that the TMP may be proteolytically cleaved. Our results provide a structural atlas of the model bacteriophage φTE, enhancing future interpretation of phage host interactions in pectobacteria. We anticipate that our structure will inform rational design of biocontrol agents against plant pathogens that cause diseases such as soft rot and blackleg disease in potatoes.

---

Organizational Affiliation:

Department of Microbiology and Immunology, University of Otago, Dunedin, New Zealand.

Biological Assembly 1

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Hetero 1996-mer - A780B775C162D162E18F18G12H12I6J6K6L6M6N6O6P6Q3R3S3 Pseudo Symmetry: Asymmetric - C1
Pseudo Stoichiometry: Hetero 1996-mer - A780B775C162D162E18F12G12H6I6J6K6L6M6N6O6P6Q6R6S3T3U3

Local Symmetry: Icosahedral - I  (Explore in 3D)
Local Stoichiometry: Homo 780-mer - A780 Local Symmetry: Cyclic - C5  (Explore in 3D)
Local Stoichiometry: Homo 775-mer - B775 Local Symmetry: Cyclic - C6  (Explore in 3D)
Local Stoichiometry: Homo 6-mer - I6 Local Symmetry: Cyclic - C6  (Explore in 3D)
Local Stoichiometry: Homo 6-mer - J6 Local Symmetry: Cyclic - C6  (Explore in 3D)
Local Stoichiometry: Homo 6-mer - K6 Local Symmetry: Cyclic - C6  (Explore in 3D)
Local Stoichiometry: Homo 6-mer - L6 Local Symmetry: Cyclic - C6  (Explore in 3D)
Local Stoichiometry: Homo 6-mer - M6 Local Symmetry: Cyclic - C6  (Explore in 3D)
Local Stoichiometry: Homo 6-mer - N6 Local Symmetry: Cyclic - C6  (Explore in 3D)
Local Stoichiometry: Homo 6-mer - O6 Local Symmetry: Cyclic - C6  (Explore in 3D)
Local Stoichiometry: Homo 6-mer - P6 Local Symmetry: Cyclic - C3  (Explore in 3D)
Local Stoichiometry: Hetero 9-mer - Q3R3S3 Local Symmetry: Cyclic - C6  (Explore in 3D)
Local Stoichiometry: Hetero 36-mer - E18F18 Local Symmetry: Cyclic - C6  (Explore in 3D)
Local Stoichiometry: Hetero 324-mer - C162D162 Local Symmetry: Cyclic - C12  (Explore in 3D)
Local Stoichiometry: Hetero 24-mer - G12H12

Biological assembly 1 assigned by authors.

Biological Assembly Evidence: electron microscopy

Macromolecule Content

• Total Structure Weight: 57,624.99 kDa
• Atom Count: 3,819,839
• Modeled Residue Count: 494,049
• Deposited Residue Count: 525,668
• Unique protein chains: 18

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
Portal protein	A, B, BAA [auth L], HYA [auth V], IXB [auth o], JWB [auth f], JXB [auth p], QX [auth K], SXB [auth y], TXB [auth z], WVA [auth U], YTB [auth e]	507	Pectobacterium phage phiTE	Mutation(s): 0
UniProt
Find proteins for K9L587 (Pectobacterium phage phiTE) Explore K9L587  Go to UniProtKB:  K9L587

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image
PhiTE adaptor protein	AXB [auth g], BXB [auth h], C, D, DDB [auth X], KXB [auth q], L [auth 1], LXB [auth r], M [auth 2], MCA [auth M], SAB [auth W], XEA [auth N]	175	Pectobacterium phage phiTE	Mutation(s): 0
UniProt
Find proteins for K9L3Y0 (Pectobacterium phage phiTE) Explore K9L3Y0  Go to UniProtKB:  K9L3Y0

Entity ID: 3
Molecule	Chains	Sequence Length	Organism	Details	Image
PhiTE head completion protein	CXB [auth i], E, IHA [auth O], MXB [auth s], N [auth 3], OFB [auth Y]	146	Pectobacterium phage phiTE	Mutation(s): 0
UniProt
Find proteins for K9L551 (Pectobacterium phage phiTE) Explore K9L551  Go to UniProtKB:  K9L551

Entity ID: 4
Molecule	Chains	Sequence Length	Organism	Details	Image

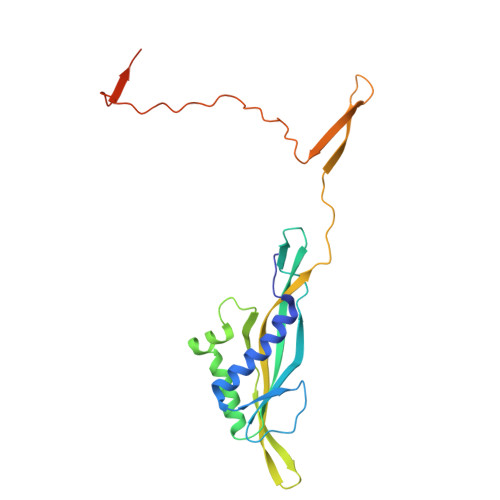

PhiTE tail terminator protein	DXB [auth j], F, NXB [auth t], O [auth 4], TJA [auth P], ZHB [auth Z]	235	Pectobacterium phage phiTE	Mutation(s): 0
UniProt
Find proteins for K9L5Q6 (Pectobacterium phage phiTE) Explore K9L5Q6  Go to UniProtKB:  K9L5Q6

Entity ID: 5
Molecule	Chains	Sequence Length	Organism	Details	Image

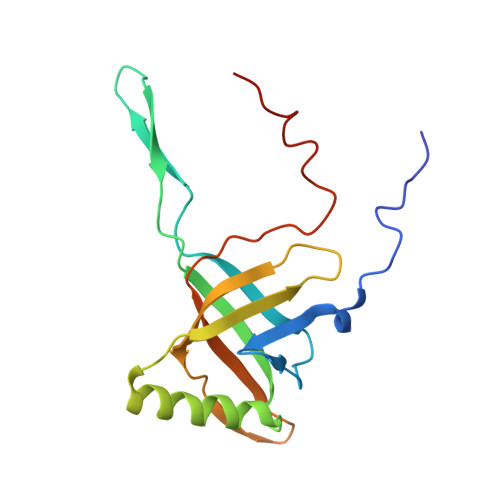

Structural protein	AA [auth A6], AH [auth D2], ATB [auth da], BB [auth AX], BC [auth Ax], BD [auth BN], BE [auth Bn], BF [auth CD], BG [auth Cd], BI [auth DT], BJ [auth Dt], BK [auth EJ], BTB [auth db], CA [auth A8], CH [auth D4], CTB [auth dc], CWB [auth et], DB [auth AZ], DC [auth Az], DD [auth BP], DE [auth Bp], DF [auth CF], DG [auth Cf], DI [auth DV], DJ [auth Dv], DK [auth EL], DUB [auth e4], DWB [auth eu], EC [auth B0], EH [auth D6], EMA [auth Q], EVB [auth eV], EWB [auth ev], EXB [auth k], FA [auth AB], FB [auth Ab], FD [auth BR], FE [auth Br], FF [auth CH], FG [auth Ch], FI [auth DX], FJ [auth Dx], FK [auth EN], FWB [auth ew], FXB [auth l], G, GC [auth B2], GH [auth D8], H, HA [auth AD], HB [auth Ad], HD [auth BT], HE [auth Bt], HF [auth CJ], HG [auth Cj], HI [auth DZ], HJ [auth Dz], IC [auth B4], IUB [auth e9], JA [auth AF], JB [auth Af], JD [auth BV], JE [auth Bv], JF [auth CL], JG [auth Cl], JH [auth DB], JI [auth Db], K [auth 0], KC [auth B6], KKB [auth a], LA [auth AH], LB [auth Ah], LD [auth BX], LE [auth Bx], LF [auth CN], LG [auth Cn], LH [auth DD], LI [auth Dd], MC [auth B8], NA [auth AJ], NB [auth Aj], ND [auth BZ], NE [auth Bz], NF [auth CP], NG [auth Cp], NH [auth DF], NI [auth Df], OE [auth C0], OXB [auth u], P [auth 5], PA [auth AL], PB [auth Al], PC [auth BB], PD [auth Bb], PF [auth CR], PG [auth Cr], PH [auth DH], PI [auth Dh], POA [auth R], PUB [auth eG], PXB [auth v], Q [auth 6], QE [auth C2], QTB [auth ds], QUB [auth eH], RA [auth AN], RB [auth An], RC [auth BD], RD [auth Bd], RF [auth CT], RG [auth Ct], RH [auth DJ], RI [auth Dj], RUB [auth eI], SE [auth C4], SUB [auth eJ], TA [auth AP], TB [auth Ap], TC [auth BF], TD [auth Bf], TF [auth CV], TG [auth Cv], TH [auth DL], TI [auth Dl], TJ [auth EB], U [auth A0], UE [auth C6], VA [auth AR], VB [auth Ar], VC [auth BH], VD [auth Bh], VF [auth CX], VG [auth Cx], VH [auth DN], VI [auth Dn], VJ [auth ED], VMB [auth b], W [auth A2], WE [auth C8], XA [auth AT], XB [auth At], XC [auth BJ], XD [auth Bj], XF [auth CZ], XG [auth Cz], XH [auth DP], XI [auth Dp], XJ [auth EF], Y [auth A4], YG [auth D0], ZA [auth AV], ZB [auth Av], ZC [auth BL], ZD [auth Bl], ZE [auth CB], ZF [auth Cb], ZH [auth DR], ZI [auth Dr], ZJ [auth EH], ZRB [auth d8], ZSB [auth dZ], ZUB [auth eQ]	160	Pectobacterium phage phiTE	Mutation(s): 0
UniProt
Find proteins for K9L3Y2 (Pectobacterium phage phiTE) Explore K9L3Y2  Go to UniProtKB:  K9L3Y2

Entity ID: 6
Molecule	Chains	Sequence Length	Organism	Details	Image
Tail sheath protein	AB [auth AW], AC [auth Aw], AD [auth BM], AE [auth Bm], AF [auth CC], AG [auth Cc], AI [auth DS], AJ [auth Ds], AK [auth EI], ARA [auth S], AWB [auth er], BA [auth A7], BH [auth D3], BWB [auth es], CB [auth AY], CC [auth Ay], CD [auth BO], CE [auth Bo], CF [auth CE], CG [auth Ce], CI [auth DU], CJ [auth Du], CK [auth EK], DA [auth A9], DH [auth D5], EA [auth AA], EB [auth Aa], ED [auth BQ], EE [auth Bq], EF [auth CG], EG [auth Cg], EI [auth DW], EJ [auth Dw], EK [auth EM], FC [auth B1], FH [auth D7], GA [auth AC], GB [auth Ac], GD [auth BS], GE [auth Bs], GF [auth CI], GG [auth Ci], GI [auth DY], GJ [auth Dy], GPB [auth c], GXB [auth m], HC [auth B3], HH [auth D9], HXB [auth n], I, IA [auth AE], IB [auth Ae], ID [auth BU], IE [auth Bu], IF [auth CK], IG [auth Ck], IH [auth DA], II [auth Da], J, JC [auth B5], JUB [auth eA], KA [auth AG], KB [auth Ag], KD [auth BW], KE [auth Bw], KF [auth CM], KG [auth Cm], KH [auth DC], KI [auth Dc], KUB [auth eB], LC [auth B7], LTA [auth T], LUB [auth eC], MA [auth AI], MB [auth Ai], MD [auth BY], ME [auth By], MF [auth CO], MG [auth Co], MH [auth DE], MI [auth De], MUB [auth eD], NC [auth B9], NUB [auth eE], OA [auth AK], OB [auth Ak], OC [auth BA], OD [auth Ba], OF [auth CQ], OG [auth Cq], OH [auth DG], OI [auth Dg], OUB [auth eF], PE [auth C1], QA [auth AM], QB [auth Am], QC [auth BC], QD [auth Bc], QF [auth CS], QG [auth Cs], QH [auth DI], QI [auth Di], QXB [auth w], R [auth 7], RE [auth C3], RRB [auth d], RXB [auth x], S [auth 8], SA [auth AO], SB [auth Ao], SC [auth BE], SD [auth Be], SF [auth CU], SG [auth Cu], SH [auth DK], SI [auth Dk], SJ [auth EA], T [auth 9], TE [auth C5], TSB [auth dT], UA [auth AQ], UB [auth Aq], UC [auth BG], UD [auth Bg], UF [auth CW], UG [auth Cw], UH [auth DM], UI [auth Dm], UJ [auth EC], USB [auth dU], V [auth A1], VE [auth C7], VSB [auth dV], WA [auth AS], WB [auth As], WC [auth BI], WD [auth Bi], WF [auth CY], WG [auth Cy], WH [auth DO], WI [auth Do], WJ [auth EE], WSB [auth dW], WVB [auth en], X [auth A3], XE [auth C9], XSB [auth dX], XVB [auth eo], YA [auth AU], YB [auth Au], YC [auth BK], YD [auth Bk], YE [auth CA], YF [auth Ca], YH [auth DQ], YI [auth Dq], YJ [auth EG], YSB [auth dY], YVB [auth ep], Z [auth A5], ZG [auth D1], ZVB [auth eq]	473	Pectobacterium phage phiTE	Mutation(s): 0
UniProt
Find proteins for K9L4E9 (Pectobacterium phage phiTE) Explore K9L4E9  Go to UniProtKB:  K9L4E9

Entity ID: 7
Molecule	Chains	Sequence Length	Organism	Details	Image

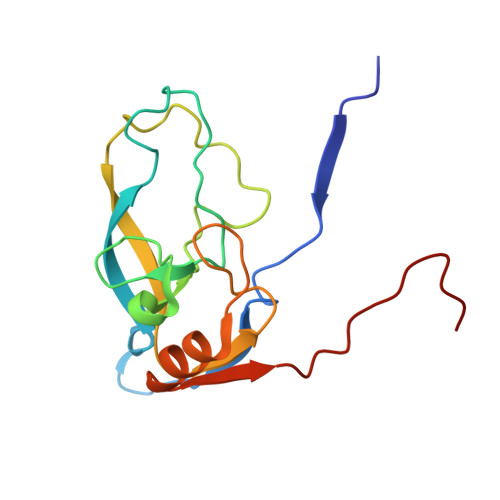

Head stabilization/decoration protein	AAA [auth Kz], ABA [auth LO], ABB [auth W7], ACA [auth Lo], ADA [auth MD], AEA [auth Md], AGA [auth NS], AHA [auth Ns], AIA [auth OH], AJA [auth Oh], AL [auth Ei], ALA [auth PW], AMA [auth Pw], AN [auth FY], ANA [auth QL], ANB [auth b4], AO [auth Fy], AOA [auth Ql], AP [auth GO], APA [auth RA], AQ [auth Go], AQA [auth Ra], AR [auth HE], AS [auth He], ASA [auth SP], ATA [auth Sp], AU [auth IU], AUA [auth TE], AV [auth Iu], AVA [auth Te], AW [auth JK], AWA [auth U3], AX [auth Jk], AZ [auth KZ], BBA [auth LP], BBB [auth W8], BCA [auth Lp], BDA [auth ME], BEA [auth Me], BGA [auth NT], BHA [auth Nt], BIA [auth OI], BIB [auth Z1], BJA [auth Oi], BL [auth Ej], BLA [auth PX], BMA [auth Px], BN [auth FZ], BNA [auth QM], BNB [auth b5], BO [auth Fz], BOA [auth Qm], BP [auth GP], BPA [auth RB], BQ [auth Gp], BQA [auth Rb], BR [auth HF], BS [auth Hf], BSA [auth SQ], BTA [auth Sq], BU [auth IV], BUA [auth TF], BV [auth Iv], BVA [auth Tf], BW [auth JL], BWA [auth U4], BX [auth Jl], BXA [auth UU], BY [auth KA], BYA [auth Uu], BZ [auth Ka], CAA [auth L0], CAB [auth Vk], CBA [auth LQ], CBB [auth W9], CCA [auth Lq], CCB [auth WZ], CDA [auth MF], CDB [auth Wz], CEA [auth Mf], CGA [auth NU], CHA [auth Nu], CIA [auth OJ], CIB [auth Z2], CJA [auth Oj], CL [auth Ek], CLA [auth PY], CM [auth FA], CMA [auth Py], CN [auth Fa], CNA [auth QN], CNB [auth b6], CO [auth G0], COA [auth Qn], CP [auth GQ], CPA [auth RC], CQ [auth Gq], CQA [auth Rc], CR [auth HG], CRA [auth S1], CS [auth Hg], CSA [auth SR], CTA [auth Sr], CU [auth IW], CUA [auth TG], CV [auth Iw], CVA [auth Tg], CW [auth JM], CWA [auth U5], CX [auth Jm], CXA [auth UV], CY [auth KB], CYA [auth Uv], CZ [auth Kb], CZA [auth VK], DAB [auth Vl], DBA [auth LR], DBB [auth WA], DCA [auth Lr], DCB [auth Wa], DDA [auth MG], DEA [auth Mg], DEB [auth XP], DFB [auth Xp], DGA [auth NV], DHA [auth Nv], DIA [auth OK], DIB [auth Z3], DJA [auth Ok], DL [auth El], DLA [auth PZ], DM [auth FB], DMA [auth Pz], DN [auth Fb], DNA [auth QO], DNB [auth b7], DOA [auth Qo], DP [auth GR], DPA [auth RD], DQ [auth Gr], DQA [auth Rd], DR [auth HH], DS [auth Hh], DSA [auth SS], DTA [auth Ss], DU [auth IX], DUA [auth TH], DV [auth Ix], DVA [auth Th], DW [auth JN], DWA [auth U6], DX [auth Jn], DXA [auth UW], DY [auth KC], DYA [auth Uw], DZ [auth Kc], DZA [auth VL], EAB [auth Vm], EBA [auth LS], EBB [auth WB], ECA [auth Ls], ECB [auth Wb], EDA [auth MH], EEA [auth Mh], EEB [auth XQ], EFB [auth Xq], EGA [auth NW], EGB [auth YF], EHA [auth Nw], EHB [auth Yf], EIA [auth OL], EIB [auth Z4], EJA [auth Ol], EKA [auth PA], EL [auth Em], ELA [auth Pa], EM [auth FC], EN [auth Fc], ENA [auth QP], ENB [auth b8], EOA [auth Qp], EP [auth GS], EPA [auth RE], EQ [auth Gs], EQA [auth Re], ER [auth HI], ES [auth Hi], ESA [auth ST], ETA [auth St], EU [auth IY], EUA [auth TI], EVA [auth Ti], EWA [auth U7], EXA [auth UX], EY [auth KD], EYA [auth Ux], EZA [auth VM], FAB [auth Vn], FBB [auth WC], FCB [auth Wc], FDA [auth MI], FDB [auth X1], FEA [auth Mi], FEB [auth XR], FFB [auth Xr], FGA [auth NX], FGB [auth YG], FHA [auth Nx], FHB [auth Yg], FIA [auth OM], FIB [auth Z5], FJA [auth Om], FJB [auth ZV], FKA [auth PB], FKB [auth Zv], FL [auth En], FLA [auth Pb], FM [auth FD], FMA [auth Q0], FMB [auth ak], FN [auth Fd], FNA [auth QQ], FNB [auth b9], FOA [auth Qq], FPA [auth RF], FQA [auth Rf], FSA [auth SU], FTA [auth Su], FUA [auth TJ], FVA [auth Tj], FXA [auth UY], FYA [auth Uy], FZA [auth VN], GAB [auth Vo], GBB [auth WD], GCB [auth Wd], GDB [auth X2], GEB [auth XS], GFB [auth Xs], GGA [auth NY], GGB [auth YH], GHA [auth Ny], GHB [auth Yh], GIA [auth ON], GIB [auth Z6], GJA [auth On], GJB [auth ZW], GKA [auth PC], GKB [auth Zw], GLA [auth Pc], GLB [auth aL], GMB [auth al], GNA [auth QR], GNB [auth bA], GOA [auth Qr], GOB [auth ba], GPA [auth RG], GQA [auth Rg], GSA [auth SV], GSB [auth dG], GTA [auth Sv], GUA [auth TK], GV [auth J0], GVA [auth Tk], GXA [auth UZ], GYA [auth Uz], GZA [auth VO], HAB [auth Vp], HBB [auth WE], HCB [auth We], HEB [auth XT], HFB [auth Xt], HGB [auth YI], HHB [auth Yi], HIA [auth OO], HIB [auth Z7], HJA [auth Oo], HJB [auth ZX], HKA [auth PD], HKB [auth Zx], HLA [auth Pd], HLB [auth aM], HMB [auth am], HNA [auth QS], HNB [auth bB], HOA [auth Qs], HOB [auth bb], HPA [auth RH], HQA [auth Rh], HQB [auth cQ], HRB [auth cq], HSA [auth SW], HSB [auth dH], HTA [auth Sw], HUA [auth TL], HVA [auth Tl], HWA [auth UA], HXA [auth Ua], HZA [auth VP], IAB [auth Vq], IBB [auth WF], ICB [auth Wf], IEB [auth XU], IFB [auth Xu], IGB [auth YJ], IHB [auth Yj], IIB [auth Z8], IJ [auth E0], IJB [auth ZY], IKA [auth PE], IKB [auth Zy], ILA [auth Pe], ILB [auth aN], IMB [auth an], INA [auth QT], INB [auth bC], IOA [auth Qt], IOB [auth bc], IPA [auth RI], IPB [auth c1], IQA [auth Ri], IQB [auth cR], IRB [auth cr], ISA [auth SX], ISB [auth dI], ITA [auth Sx], IUA [auth TM], IV [auth J2], IVA [auth Tm], IWA [auth UB], IXA [auth Ub], IYA [auth V0], IZA [auth VQ], JAA [auth L7], JAB [auth Vr], JBB [auth WG], JCB [auth Wg], JEB [auth XV], JFB [auth Xv], JGB [auth YK], JHA [auth O0], JHB [auth Yk], JJB [auth ZZ], JKB [auth Zz], JLB [auth aO], JMB [auth ao], JNA [auth QU], JNB [auth bD], JO [auth G7], JOA [auth Qu], JOB [auth bd], JPA [auth RJ], JPB [auth c2], JQA [auth Rj], JQB [auth cS], JRB [auth cs], JSA [auth SY], JSB [auth dJ], JTA [auth Sy], JUA [auth TN], JV [auth J3], JVA [auth Tn], JWA [auth UC], JXA [auth Uc], JZA [auth VR], KAA [auth L8], KAB [auth Vs], KBB [auth WH], KCB [auth Wh], KEB [auth XW], KFB [auth Xw], KGB [auth YL], KHB [auth Yl], KIB [auth ZA], KJ [auth E2], KJB [auth Za], KLB [auth aP], KMB [auth ap], KNB [auth bE], KO [auth G8], KOB [auth be], KPA [auth RK], KPB [auth c3], KQA [auth Rk], KQB [auth cT], KRB [auth ct], KSA [auth SZ], KSB [auth dK], KTA [auth Sz], KUA [auth TO], KV [auth J4], KVA [auth To], KWA [auth UD], KXA [auth Ud], KZA [auth VS], LAA [auth L9], LAB [auth Vt], LBB [auth WI], LCB [auth Wi], LEB [auth XX], LFB [auth Xx], LGB [auth YM], LHB [auth Ym], LIB [auth ZB], LJ [auth E3], LJB [auth Zb], LLB [auth aQ], LMB [auth aq], LNB [auth bF], LO [auth G9], LOB [auth bf], LQB [auth cU], LRA [auth SA], LRB [auth cu], LSA [auth Sa], LSB [auth dL], LUA [auth TP], LV [auth J5], LVA [auth Tp], LWA [auth UE], LXA [auth Ue], LZA [auth VT], MAB [auth Vu], MBB [auth WJ], MCB [auth Wj], MEB [auth XY], MFB [auth Xy], MGB [auth YN], MHA [auth O3], MHB [auth Yn], MIB [auth ZC], MJ [auth E4], MJB [auth Zc], MLB [auth aR], MMB [auth ar], MNB [auth bG], MOB [auth bg], MQB [auth cV], MRB [auth cv], MSB [auth dM], MTA [auth T0], MUA [auth TQ], MV [auth J6], MVA [auth Tq], MWA [auth UF], MXA [auth Uf], MZA [auth VU], NAB [auth Vv], NBB [auth WK], NCB [auth Wk], NEB [auth XZ], NFB [auth Xz], NGB [auth YO], NHA [auth O4], NHB [auth Yo], NIB [auth ZD], NJ [auth E5], NJB [auth Zd], NLB [auth aS], NMB [auth as], NNB [auth bH], NOB [auth bh], NQ [auth H1], NQB [auth cW], NRB [auth cw], NSB [auth dN], NV [auth J7], NWA [auth UG], NXA [auth Ug], NZA [auth VV], OAB [auth Vw], OBB [auth WL], OCA [auth M1], OCB [auth Wl], ODB [auth XA], OEB [auth Xa], OGB [auth YP], OHA [auth O5], OHB [auth Yp], OIB [auth ZE], OJ [auth E6], OJB [auth Ze], OLB [auth aT], OMA [auth Q9], OMB [auth at], ONB [auth bI], OOB [auth bi], OQ [auth H2], OQB [auth cX], ORB [auth cx], OSB [auth dO], OV [auth J8], OZA [auth VW], PCA [auth M2], PDB [auth XB], PEB [auth Xb], PFB [auth Y0], PGB [auth YQ], PHA [auth O6], PHB [auth Yq], PIB [auth ZF], PJ [auth E7], PJB [auth Zf], PLB [auth aU], PMB [auth au], PNB [auth bJ], POB [auth bj], PQ [auth H3], PQB [auth cY], PRB [auth cy], PSB [auth dP], PV [auth J9], QCA [auth M3], QGB [auth YR], QHA [auth O7], QHB [auth Yr], QIB [auth ZG], QJ [auth E8], QJB [auth Zg], QLB [auth aV], QMB [auth av], QNB [auth bK], QOA [auth R0], QOB [auth bk], QQ [auth H4], QQB [auth cZ], QRB [auth cz], QSB [auth dQ], RCA [auth M4], RHA [auth O8], RIB [auth ZH], RJ [auth E9], RJB [auth Zh], RLB [auth aW], RMB [auth aw], RNB [auth bL], ROA [auth R1], ROB [auth bl], RPB [auth cA], RQ [auth H5], RQB [auth ca], RSB [auth dR], RTA [auth T5], RU [auth Il], RV [auth JB], RW [auth Jb], RY [auth KQ], RZ [auth Kq], SAA [auth LG], SBA [auth Lg], SCA [auth M5], SHA [auth O9], SLB [auth aX], SN [auth Fq], SNB [auth bM], SO [auth GG], SOA [auth R2], SOB [auth bm], SP [auth Gg], SPB [auth cB], SQ [auth H6], SQB [auth cb], SR [auth HW], SS [auth Hw], SSB [auth dS], ST [auth IM], STA [auth T6], SU [auth Im], SV [auth JC], SW [auth Jc], SX [auth K1], SY [auth KR], SZ [auth Kr], TAA [auth LH], TAB [auth W0], TBA [auth Lh], TCA [auth M6], TDA [auth MW], TEA [auth Mw], TK [auth Eb], TL [auth F1], TM [auth FR], TN [auth Fr], TO [auth GH], TOA [auth R3], TP [auth Gh], TPB [auth cC], TQ [auth H7], TQB [auth cc], TR [auth HX], TS [auth Hx], TT [auth IN], TTA [auth T7], TU [auth In], TV [auth JD], TW [auth Jd], TX [auth K2], TY [auth KS], TZ [auth Ks], UAA [auth LI], UAB [auth W1], UBA [auth Li], UCA [auth M7], UDA [auth MX], UEA [auth Mx], UFA [auth NM], UGA [auth Nm], UK [auth Ec], UL [auth F2], UM [auth FS], UN [auth Fs], UO [auth GI], UOA [auth R4], UP [auth Gi], UQ [auth H8], UR [auth HY], US [auth Hy], UT [auth IO], UTA [auth T8], UU [auth Io], UV [auth JE], UW [auth Je], UX [auth K3], UY [auth KT], UZ [auth Kt], VAA [auth LJ], VAB [auth W2], VBA [auth Lj], VCA [auth M8], VDA [auth MY], VEA [auth My], VFA [auth NN], VFB [auth Y6], VGA [auth Nn], VHA [auth OC], VIA [auth Oc], VJA [auth P1], VK [auth Ed], VL [auth F3], VM [auth FT], VN [auth Ft], VO [auth GJ], VOA [auth R5], VP [auth Gj], VQ [auth H9], VR [auth HZ], VS [auth Hz], VT [auth IP], VTA [auth T9], VU [auth Ip], VV [auth JF], VW [auth Jf], VY [auth KU], VZ [auth Ku], WAA [auth LK], WAB [auth W3], WBA [auth Lk], WCA [auth M9], WDA [auth MZ], WEA [auth Mz], WFA [auth NO], WFB [auth Y7], WGA [auth No], WHA [auth OD], WIA [auth Od], WJA [auth P2], WK [auth Ee], WKA [auth PS], WLA [auth Ps], WM [auth FU], WMB [auth b0], WN [auth Fu], WO [auth GK], WOA [auth R6], WP [auth Gk], WQ [auth HA], WR [auth Ha], WT [auth IQ], WU [auth Iq], WV [auth JG], WW [auth Jg], WY [auth KV], WZ [auth Kv], XAA [auth LL], XAB [auth W4], XBA [auth Ll], XCA [auth MA], XDA [auth Ma], XFA [auth NP], XFB [auth Y8], XGA [auth Np], XHA [auth OE], XIA [auth Oe], XJA [auth P3], XK [auth Ef], XKA [auth PT], XLA [auth Pt], XM [auth FV], XMA [auth QI], XMB [auth b1], XN [auth Fv], XNA [auth Qi], XO [auth GL], XOA [auth R7], XP [auth Gl], XQ [auth HB], XR [auth Hb], XT [auth IR], XU [auth Ir], XV [auth JH], XW [auth Jh], XY [auth KW], XZ [auth Kw], YAA [auth LM], YAB [auth W5], YBA [auth Lm], YCA [auth MB], YDA [auth Mb], YFA [auth NQ], YFB [auth Y9], YGA [auth Nq], YHA [auth OF], YIA [auth Of], YJA [auth P4], YK [auth Eg], YKA [auth PU], YLA [auth Pu], YM [auth FW], YMA [auth QJ], YMB [auth b2], YN [auth Fw], YNA [auth Qj], YO [auth GM], YOA [auth R8], YP [auth Gm], YPA [auth RY], YQ [auth HC], YQA [auth Ry], YR [auth Hc], YT [auth IS], YU [auth Is], YV [auth JI], YVA [auth U1], YW [auth Ji], YY [auth KX], YZ [auth Kx], ZAA [auth LN], ZAB [auth W6], ZBA [auth Ln], ZCA [auth MC], ZDA [auth Mc], ZFA [auth NR], ZGA [auth Nr], ZHA [auth OG], ZIA [auth Og], ZJA [auth P5], ZK [auth Eh], ZKA [auth PV], ZLA [auth Pv], ZM [auth FX], ZMA [auth QK], ZMB [auth b3], ZN [auth Fx], ZNA [auth Qk], ZO [auth GN], ZOA [auth R9], ZP [auth Gn], ZPA [auth RZ], ZQ [auth HD], ZQA [auth Rz], ZR [auth Hd], ZRA [auth SO], ZSA [auth So], ZT [auth IT], ZU [auth It], ZV [auth JJ], ZVA [auth U2], ZW [auth Jj], ZY [auth KY], ZZ [auth Ky]	149	Pectobacterium phage phiTE	Mutation(s): 0
UniProt
Find proteins for K9L4E7 (Pectobacterium phage phiTE) Explore K9L4E7  Go to UniProtKB:  K9L4E7

Entity ID: 8
Molecule	Chains	Sequence Length	Organism	Details	Image
Major capsid protein	AAB [auth Vi], ACB [auth WX], ADB [auth Wx], AEB [auth XM], AFA [auth N2], AFB [auth Xm], AGB [auth YB], AHB [auth Yb], AIB [auth Z0], AJB [auth ZQ], AKA [auth P6], AKB [auth Zq], ALB [auth aF], AM [auth F8], AMB [auth af], AOB [auth bU], APB [auth bu], AQB [auth cJ], ARB [auth cj], ASB [auth dA], AT [auth I4], AXA [auth UT], AY [auth K9], AYA [auth Ut], AZA [auth VI], BAB [auth Vj], BCB [auth WY], BDB [auth Wy], BEB [auth XN], BFA [auth N3], BFB [auth Xn], BGB [auth YC], BHB [auth Yc], BJB [auth ZR], BKA [auth P7], BKB [auth Zr], BLB [auth aG], BM [auth F9], BMB [auth ag], BOB [auth bV], BPB [auth bv], BQB [auth cK], BRA [auth S0], BRB [auth ck], BSB [auth dB], BT [auth I5], BZA [auth VJ], CEB [auth XO], CFA [auth N4], CFB [auth Xo], CGB [auth YD], CHB [auth Yd], CJB [auth ZS], CKA [auth P8], CKB [auth Zs], CLB [auth aH], CMB [auth ah], COB [auth bW], CPB [auth bw], CQB [auth cL], CRB [auth cl], CSB [auth dC], CT [auth I6], DAA [auth L1], DFA [auth N5], DGB [auth YE], DHB [auth Ye], DJB [auth ZT], DKA [auth P9], DKB [auth Zt], DLB [auth aI], DMB [auth ai], DO [auth G1], DOB [auth bX], DPB [auth bx], DQB [auth cM], DRA [auth S2], DRB [auth cm], DSB [auth dD], DT [auth I7], EAA [auth L2], EDB [auth X0], EFA [auth N6], EJB [auth ZU], EKB [auth Zu], ELB [auth aJ], EMB [auth aj], EO [auth G2], EOB [auth bY], EPB [auth by], EQB [auth cN], ERA [auth S3], ERB [auth cn], ESB [auth dE], ET [auth I8], EV [auth Iy], EW [auth JO], EX [auth Jo], EZ [auth Kd], FAA [auth L3], FBA [auth LT], FCA [auth Lt], FFA [auth N7], FLB [auth aK], FO [auth G3], FOB [auth bZ], FP [auth GT], FPB [auth bz], FQ [auth Gt], FQB [auth cO], FR [auth HJ], FRA [auth S4], FRB [auth co], FS [auth Hj], FSB [auth dF], FT [auth I9], FU [auth IZ], FV [auth Iz], FW [auth JP], FWA [auth U8], FX [auth Jp], FY [auth KE], FZ [auth Ke], GAA [auth L4], GBA [auth LU], GCA [auth Lu], GDA [auth MJ], GEA [auth Mj], GFA [auth N8], GK [auth EO], GL [auth Eo], GM [auth FE], GMA [auth Q1], GN [auth Fe], GO [auth G4], GP [auth GU], GQ [auth Gu], GQB [auth cP], GR [auth HK], GRA [auth S5], GRB [auth cp], GS [auth Hk], GT [auth IA], GU [auth Ia], GW [auth JQ], GWA [auth U9], GX [auth Jq], GY [auth KF], GZ [auth Kf], HAA [auth L5], HBA [auth LV], HCA [auth Lv], HDA [auth MK], HDB [auth X3], HEA [auth Mk], HFA [auth N9], HGA [auth NZ], HHA [auth Nz], HK [auth EP], HL [auth Ep], HM [auth FF], HMA [auth Q2], HN [auth Ff], HO [auth G5], HP [auth GV], HPB [auth c0], HQ [auth Gv], HR [auth HL], HRA [auth S6], HS [auth Hl], HT [auth IB], HU [auth Ib], HV [auth J1], HW [auth JR], HX [auth Jr], HY [auth KG], HZ [auth Kg], IAA [auth L6], IBA [auth LW], ICA [auth Lw], IDA [auth ML], IDB [auth X4], IEA [auth Ml], IFA [auth NA], IGA [auth Na], IIA [auth OP], IJA [auth Op], IK [auth EQ], IL [auth Eq], IM [auth FG], IMA [auth Q3], IN [auth Fg], IO [auth G6], IP [auth GW], IQ [auth Gw], IR [auth HM], IRA [auth S7], IS [auth Hm], IT [auth IC], IU [auth Ic], IW [auth JS], IX [auth Js], IY [auth KH], IZ [auth Kh], JBA [auth LX], JCA [auth Lx], JDA [auth MM], JDB [auth X5], JEA [auth Mm], JFA [auth NB], JGA [auth Nb], JIA [auth OQ], JIB [auth Z9], JJ [auth E1], JJA [auth Oq], JK [auth ER], JKA [auth PF], JL [auth Er], JLA [auth Pf], JM [auth FH], JMA [auth Q4], JN [auth Fh], JP [auth GX], JQ [auth Gx], JR [auth HN], JRA [auth S8], JS [auth Hn], JT [auth ID], JU [auth Id], JW [auth JT], JX [auth Jt], JY [auth KI], JYA [auth V1], JZ [auth Ki], KBA [auth LY], KCA [auth Ly], KDA [auth MN], KDB [auth X6], KEA [auth Mn], KFA [auth NC], KGA [auth Nc], KHA [auth O1], KIA [auth OR], KJA [auth Or], KK [auth ES], KKA [auth PG], KL [auth Es], KLA [auth Pg], KM [auth FI], KMA [auth Q5], KN [auth Fi], KNA [auth QV], KOA [auth Qv], KP [auth GY], KQ [auth Gy], KR [auth HO], KRA [auth S9], KS [auth Ho], KT [auth IE], KU [auth Ie], KW [auth JU], KX [auth Ju], KY [auth KJ], KYA [auth V2], KZ [auth Kj], LBA [auth LZ], LCA [auth Lz], LDA [auth MO], LDB [auth X7], LEA [auth Mo], LFA [auth ND], LGA [auth Nd], LHA [auth O2], LIA [auth OS], LJA [auth Os], LK [auth ET], LKA [auth PH], LKB [auth a0], LL [auth Et], LLA [auth Ph], LM [auth FJ], LMA [auth Q6], LN [auth Fj], LNA [auth QW], LOA [auth Qw], LP [auth GZ], LPA [auth RL], LPB [auth c4], LQ [auth Gz], LQA [auth Rl], LR [auth HP], LS [auth Hp], LT [auth IF], LU [auth If], LW [auth JV], LX [auth Jv], LY [auth KK], LYA [auth V3], LZ [auth Kk], MAA [auth LA], MBA [auth La], MDA [auth MP], MDB [auth X8], MEA [auth Mp], MFA [auth NE], MGA [auth Ne], MIA [auth OT], MJA [auth Ot], MK [auth EU], MKA [auth PI], MKB [auth a1], ML [auth Eu], MLA [auth Pi], MM [auth FK], MMA [auth Q7], MN [auth Fk], MNA [auth QX], MO [auth GA], MOA [auth Qx], MP [auth Ga], MPA [auth RM], MPB [auth c5], MQ [auth H0], MQA [auth Rm], MR [auth HQ], MRA [auth SB], MS [auth Hq], MSA [auth Sb], MT [auth IG], MU [auth Ig], MW [auth JW], MX [auth Jw], MY [auth KL], MYA [auth V4], MZ [auth Kl], NAA [auth LB], NBA [auth Lb], NCA [auth M0], NDA [auth MQ], NDB [auth X9], NEA [auth Mq], NFA [auth NF], NGA [auth Nf], NIA [auth OU], NJA [auth Ou], NK [auth EV], NKA [auth PJ], NKB [auth a2], NL [auth Ev], NLA [auth Pj], NM [auth FL], NMA [auth Q8], NN [auth Fl], NNA [auth QY], NO [auth GB], NOA [auth Qy], NP [auth Gb], NPA [auth RN], NPB [auth c6], NQA [auth Rn], NR [auth HR], NRA [auth SC], NS [auth Hr], NSA [auth Sc], NT [auth IH], NTA [auth T1], NU [auth Ih], NUA [auth TR], NVA [auth Tr], NW [auth JX], NX [auth Jx], NY [auth KM], NYA [auth V5], NZ [auth Km], OAA [auth LC], OBA [auth Lc], ODA [auth MR], OEA [auth Mr], OFA [auth NG], OGA [auth Ng], OIA [auth OV], OJA [auth Ov], OK [auth EW], OKA [auth PK], OKB [auth a3], OL [auth Ew], OLA [auth Pk], OM [auth FM], ON [auth Fm], ONA [auth QZ], OO [auth GC], OOA [auth Qz], OP [auth Gc], OPA [auth RO], OPB [auth c7], OQA [auth Ro], OR [auth HS], ORA [auth SD], OS [auth Hs], OSA [auth Sd], OT [auth II], OTA [auth T2], OU [auth Ii], OUA [auth TS], OVA [auth Ts], OW [auth JY], OWA [auth UH], OX [auth Jy], OXA [auth Uh], OY [auth KN], OYA [auth V6], OZ [auth Kn], PAA [auth LD], PAB [auth Vx], PBA [auth Ld], PBB [auth WM], PCB [auth Wm], PDA [auth MS], PEA [auth Ms], PFA [auth NH], PGA [auth Nh], PIA [auth OW], PJA [auth Ow], PK [auth EX], PKA [auth PL], PKB [auth a4], PL [auth Ex], PLA [auth Pl], PM [auth FN], PMA [auth QA], PN [auth Fn], PNA [auth Qa], PO [auth GD], PP [auth Gd], PPA [auth RP], PPB [auth c8], PQA [auth Rp], PR [auth HT], PRA [auth SE], PS [auth Ht], PSA [auth Se], PT [auth IJ], PTA [auth T3], PU [auth Ij], PUA [auth TT], PVA [auth Tt], PW [auth JZ], PWA [auth UI], PX [auth Jz], PXA [auth Ui], PY [auth KO], PYA [auth V7], PZ [auth Ko], PZA [auth VX], QAA [auth LE], QAB [auth Vy], QBA [auth Le], QBB [auth WN], QCB [auth Wn], QDA [auth MT], QDB [auth XC], QEA [auth Mt], QEB [auth Xc], QFA [auth NI], QFB [auth Y1], QGA [auth Ni], QIA [auth OX], QJA [auth Ox], QK [auth EY], QKA [auth PM], QKB [auth a5], QL [auth Ey], QLA [auth Pm], QM [auth FO], QMA [auth QB], QN [auth Fo], QNA [auth Qb], QO [auth GE], QP [auth Ge], QPA [auth RQ], QPB [auth c9], QQA [auth Rq], QR [auth HU], QRA [auth SF], QS [auth Hu], QSA [auth Sf], QT [auth IK], QTA [auth T4], QU [auth Ik], QUA [auth TU], QV [auth JA], QVA [auth Tu], QW [auth Ja], QWA [auth UJ], QXA [auth Uj], QY [auth KP], QYA [auth V8], QZ [auth Kp], QZA [auth VY], RAA [auth LF], RAB [auth Vz], RBA [auth Lf], RBB [auth WO], RCB [auth Wo], RDA [auth MU], RDB [auth XD], REA [auth Mu], REB [auth Xd], RFA [auth NJ], RFB [auth Y2], RGA [auth Nj], RGB [auth YS], RHB [auth Ys], RIA [auth OY], RJA [auth Oy], RK [auth EZ], RKA [auth PN], RKB [auth a6], RL [auth Ez], RLA [auth Pn], RM [auth FP], RMA [auth QC], RN [auth Fp], RNA [auth Qc], RO [auth GF], RP [auth Gf], RPA [auth RR], RQA [auth Rr], RR [auth HV], RRA [auth SG], RS [auth Hv], RSA [auth Sg], RT [auth IL], RUA [auth TV], RVA [auth Tv], RWA [auth UK], RX [auth K0], RXA [auth Uk], RYA [auth V9], RZA [auth VZ], SBB [auth WP], SCB [auth Wp], SDA [auth MV], SDB [auth XE], SEA [auth Mv], SEB [auth Xe], SFA [auth NK], SFB [auth Y3], SGA [auth Nk], SGB [auth YT], SHB [auth Yt], SIA [auth OZ], SIB [auth ZI], SJA [auth Oz], SJB [auth Zi], SK [auth Ea], SKA [auth PO], SKB [auth a7], SL [auth F0], SLA [auth Po], SM [auth FQ], SMA [auth QD], SMB [auth ax], SNA [auth Qd], SPA [auth RS], SQA [auth Rs], SRA [auth SH], SSA [auth Sh], SUA [auth TW], SVA [auth Tw], SWA [auth UL], SXA [auth Ul], SYA [auth VA], SZA [auth Va], TBB [auth WQ], TCB [auth Wq], TDB [auth XF], TEB [auth Xf], TFA [auth NL], TFB [auth Y4], TGA [auth Nl], TGB [auth YU], THA [auth OA], THB [auth Yu], TIA [auth Oa], TIB [auth ZJ], TJB [auth Zj], TKA [auth PP], TKB [auth a8], TLA [auth Pp], TLB [auth aY], TMA [auth QE], TMB [auth ay], TNA [auth Qe], TNB [auth bN], TOB [auth bn], TPA [auth RT], TQA [auth Rt], TRA [auth SI], TSA [auth Si], TUA [auth TX], TVA [auth Tx], TWA [auth UM], TXA [auth Um], TYA [auth VB], TZA [auth Vb], UBB [auth WR], UCB [auth Wr], UDB [auth XG], UEB [auth Xg], UFB [auth Y5], UGB [auth YV], UHA [auth OB], UHB [auth Yv], UIA [auth Ob], UIB [auth ZK], UJA [auth P0], UJB [auth Zk], UKA [auth PQ], UKB [auth a9], ULA [auth Pq], ULB [auth aZ], UMA [auth QF], UMB [auth az], UNA [auth Qf], UNB [auth bO], UOB [auth bo], UPA [auth RU], UPB [auth cD], UQA [auth Ru], UQB [auth cd], URA [auth SJ], USA [auth Sj], UUA [auth TY], UVA [auth Ty], UWA [auth UN], UXA [auth Un], UYA [auth VC], UZA [auth Vc], VBB [auth WS], VCB [auth Ws], VDB [auth XH], VEB [auth Xh], VGB [auth YW], VHB [auth Yw], VIB [auth ZL], VJB [auth Zl], VKA [auth PR], VKB [auth aA], VLA [auth Pr], VLB [auth aa], VMA [auth QG], VNA [auth Qg], VNB [auth bP], VOB [auth bp], VPA [auth RV], VPB [auth cE], VQA [auth Rv], VQB [auth ce], VRA [auth SK], VSA [auth Sk], VUA [auth TZ], VVA [auth Tz], VWA [auth UO], VX [auth K4], VXA [auth Uo], VYA [auth VD], VZA [auth Vd], WBB [auth WT], WCB [auth Wt], WDB [auth XI], WEB [auth Xi], WGB [auth YX], WHB [auth Yx], WIB [auth ZM], WJB [auth Zm], WKB [auth aB], WL [auth F4], WLB [auth ab], WMA [auth QH], WNA [auth Qh], WNB [auth bQ], WOB [auth bq], WPA [auth RW], WPB [auth cF], WQA [auth Rw], WQB [auth cf], WRA [auth SL], WS [auth I0], WSA [auth Sl], WTA [auth TA], WUA [auth Ta], WWA [auth UP], WX [auth K5], WXA [auth Up], WYA [auth VE], WZA [auth Ve], XBB [auth WU], XCB [auth Wu], XDB [auth XJ], XEB [auth Xj], XGB [auth YY], XHB [auth Yy], XIB [auth ZN], XJB [auth Zn], XKB [auth aC], XL [auth F5], XLB [auth ac], XNB [auth bR], XOB [auth br], XPA [auth RX], XPB [auth cG], XQA [auth Rx], XQB [auth cg], XRA [auth SM], XS [auth I1], XSA [auth Sm], XTA [auth TB], XUA [auth Tb], XVA [auth U0], XWA [auth UQ], XX [auth K6], XXA [auth Uq], XYA [auth VF], XZA [auth Vf], YBB [auth WV], YCB [auth Wv], YDB [auth XK], YEA [auth N0], YEB [auth Xk], YGB [auth YZ], YHB [auth Yz], YIB [auth ZO], YJB [auth Zo], YKB [auth aD], YL [auth F6], YLB [auth ad], YNB [auth bS], YOB [auth bs], YPB [auth cH], YQB [auth ch], YRA [auth SN], YS [auth I2], YSA [auth Sn], YTA [auth TC], YUA [auth Tc], YWA [auth UR], YX [auth K7], YXA [auth Ur], YYA [auth VG], YZA [auth Vg], ZBB [auth WW], ZCB [auth Ww], ZDB [auth XL], ZEA [auth N1], ZEB [auth Xl], ZFB [auth YA], ZGB [auth Ya], ZIB [auth ZP], ZJB [auth Zp], ZKB [auth aE], ZL [auth F7], ZLB [auth ae], ZNB [auth bT], ZOB [auth bt], ZPB [auth cI], ZQB [auth ci], ZS [auth I3], ZTA [auth TD], ZUA [auth Td], ZWA [auth US], ZX [auth K8], ZXA [auth Us], ZYA [auth VH], ZZA [auth Vh]	332	Pectobacterium phage phiTE	Mutation(s): 0
UniProt
Find proteins for K9L3X8 (Pectobacterium phage phiTE) Explore K9L3X8  Go to UniProtKB:  K9L3X8

Entity ID: 9
Molecule	Chains	Sequence Length	Organism	Details	Image
Putative tail fiber protein	OVB [auth ef], PVB [auth eg], QVB [auth eh], RVB [auth ei], SRB [auth d1], SVB [auth ej], SWB [auth fI], TRB [auth d2], TVB [auth ek], TWB [auth fJ], URB [auth d3], UWB [auth fK], VRB [auth d4], VWB [auth fL], WRB [auth d5], WWB [auth fM], XTB [auth dz], XWB [auth fN]	793	Pectobacterium phage phiTE	Mutation(s): 0
UniProt
Find proteins for K9L5R6 (Pectobacterium phage phiTE) Explore K9L5R6  Go to UniProtKB:  K9L5R6

Entity ID: 10
Molecule	Chains	Sequence Length	Organism	Details	Image
Sheath initiator protein	UVB [auth el], VVB [auth em], XRB [auth d6], YRB [auth d7], YWB [auth fO], ZWB [auth fP]	177	Pectobacterium phage phiTE	Mutation(s): 0
UniProt
Find proteins for K9L3Y6 (Pectobacterium phage phiTE) Explore K9L3Y6  Go to UniProtKB:  K9L3Y6

Entity ID: 11
Molecule	Chains	Sequence Length	Organism	Details	Image
Dit-like phage tail protein N-terminal domain-containing protein	DTB [auth dd], ETB [auth de], GWB [auth ex], HWB [auth ey], TUB [auth eK], UUB [auth eL]	284	Pectobacterium phage phiTE	Mutation(s): 0
UniProt
Find proteins for K9L594 (Pectobacterium phage phiTE) Explore K9L594  Go to UniProtKB:  K9L594

Entity ID: 12
Molecule	Chains	Sequence Length	Organism	Details	Image
Cyanophage baseplate Pam3 plug gp18 domain-containing protein	AUB [auth e1], FTB [auth df], GTB [auth dg], IWB [auth ez], VUB [auth eM], WUB [auth eN]	124	Pectobacterium phage phiTE	Mutation(s): 0
UniProt
Find proteins for K9L557 (Pectobacterium phage phiTE) Explore K9L557  Go to UniProtKB:  K9L557

Entity ID: 13
Molecule	Chains	Sequence Length	Organism	Details	Image
Wedge 1 protein	BUB [auth e2], CUB [auth e3], HTB [auth dh], ITB [auth di], XUB [auth eO], YUB [auth eP]	214	Pectobacterium phage phiTE	Mutation(s): 0
UniProt
Find proteins for K9L561 (Pectobacterium phage phiTE) Explore K9L561  Go to UniProtKB:  K9L561

Entity ID: 14
Molecule	Chains	Sequence Length	Organism	Details	Image

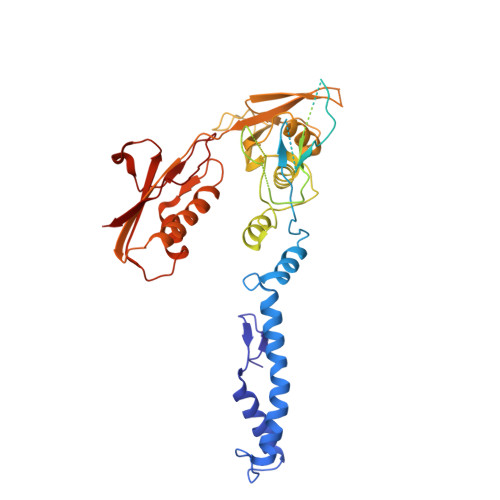

baseplate assembly protein	AVB [auth eR], BVB [auth eS], CVB [auth eT], DVB [auth eU], EUB [auth e5], FUB [auth e6], GUB [auth e7], HUB [auth e8], JTB [auth dk], KTB [auth dl], LTB [auth dm], MTB [auth dn]	494	Pectobacterium phage phiTE	Mutation(s): 0
UniProt
Find proteins for K9L596 (Pectobacterium phage phiTE) Explore K9L596  Go to UniProtKB:  K9L596

Entity ID: 15
Molecule	Chains	Sequence Length	Organism	Details	Image

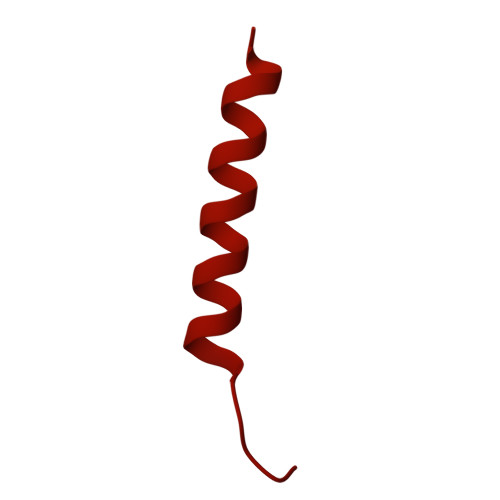

Putative tape measure protein	FVB [auth eW], NTB [auth dp], ZTB [auth e0]	811	Pectobacterium phage phiTE	Mutation(s): 0
UniProt
Find proteins for K9L3Y4 (Pectobacterium phage phiTE) Explore K9L3Y4  Go to UniProtKB:  K9L3Y4

Entity ID: 16
Molecule	Chains	Sequence Length	Organism	Details	Image
Tail protein	GVB [auth eX], KWB [auth fA], OTB [auth dq]	330	Pectobacterium phage phiTE	Mutation(s): 0
UniProt
Find proteins for K9L5R2 (Pectobacterium phage phiTE) Explore K9L5R2  Go to UniProtKB:  K9L5R2

Entity ID: 17
Molecule	Chains	Sequence Length	Organism	Details	Image

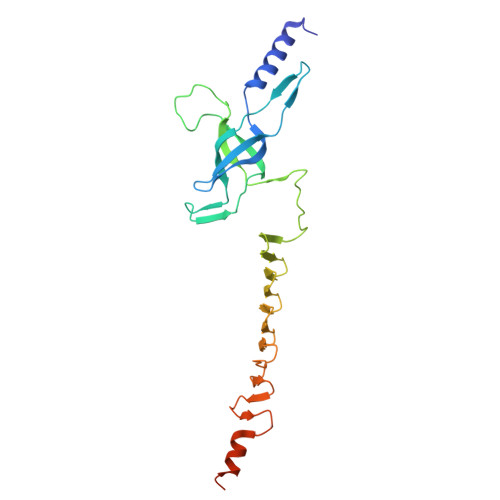

Putative baseplate assembly protein	HVB [auth eY], LWB [auth fB], PTB [auth dr]	247	Pectobacterium phage phiTE	Mutation(s): 0
UniProt
Find proteins for K9L4F2 (Pectobacterium phage phiTE) Explore K9L4F2  Go to UniProtKB:  K9L4F2

Entity ID: 18
Molecule	Chains	Sequence Length	Organism	Details	Image
Short tail fiber	IVB [auth eZ], JVB [auth ea], KVB [auth eb], LVB [auth ec], MVB [auth ed], MWB [auth fC], NVB [auth ee], NWB [auth fD], OWB [auth fE], PWB [auth fF], QWB [auth fG], RTB [auth dt], RWB [auth fH], STB [auth du], TTB [auth dv], UTB [auth dw], VTB [auth dx], WTB [auth dy]	554	Pectobacterium phage phiTE	Mutation(s): 0
UniProt
Find proteins for K9L5R4 (Pectobacterium phage phiTE) Explore K9L5R4  Go to UniProtKB:  K9L5R4

Experimental Data & Validation

Experimental Data

• Method: ELECTRON MICROSCOPY
• Resolution: 12.7 Å
• Aggregation State: PARTICLE
• Reconstruction Method: SINGLE PARTICLE

Structure Validation

Currently 9MJN does not have a validation slider image.

Entry History & Funding Information

Deposition Data

• Released Date: 2025-04-16
Deposition Author(s): Hodgkinson-Bean, J., Ayala, R.

---

Funding Organization	Location	Grant Number
Ministry of Agriculture, Forestry and Fisheries (MAFF)	Japan	GD0696J004
Japan Society for the Promotion of Science (JSPS)	Japan	21K20645

Revision History

• Version 1.0: 2025-04-16
  Type: Initial release
