9OGO | pdb_00009ogo

Crystal Structure of KPT185 in complex with CRM1(EH mutant)-Ran-RanBP1

PDB DOI: https://doi.org/10.2210/pdb9OGO/pdb

Classification: TRANSPORT PROTEIN
Organism(s): Homo sapiens, Saccharomyces cerevisiae, Saccharomyces cerevisiae S288C
Expression System: Escherichia coli BL21(DE3)
Mutation(s): Yes

Deposited: 2025-05-01 Released: 2025-11-26
Deposition Author(s): Fung, H.Y.J., Chook, Y.M.
Funding Organization(s): Cancer Prevention and Research Institute of Texas (CPRIT), National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS), Welch Foundation

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 2.37 Å
R-Value Free:
0.236 (Depositor), 0.238 (DCC)
R-Value Work:
0.193 (Depositor), 0.195 (DCC)
R-Value Observed:
0.194 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Ligand Structure Quality Assessment

This is version 1.0 of the entry. See complete history.

Literature

SINE compounds activate exportin-1 degradation via an allosteric mechanism

Wing, C.E., Fung, H.Y.J., Kwanten, B., Cagatay, T., Niesman, A.B., Jacquelyn, M., Gharghabi, M., Permentier, B., Shakya, B., Ready, J.M., Kashyap, T., Shacham, S., Landesman, Y., Lapalombella, R., Daelemans, D., Chook, Y.M.

To be published.

Macromolecule Content

Total Structure Weight: 161.8 kDa
Atom Count: 11,276
Modeled Residue Count: 1,333
Deposited Residue Count: 1,404
Unique protein chains: 3

Macromolecules

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

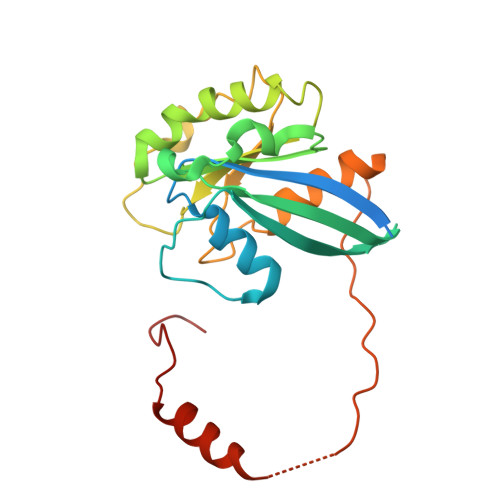

GTP-binding nuclear protein Ran	A	237	Homo sapiens	Mutation(s): 0 Gene Names: RAN, ARA24, OK/SW-cl.81 EC: 3.6.5
UniProt & NIH Common Fund Data Resources
Find proteins for P62826 (Homo sapiens) Explore P62826 Go to UniProtKB: P62826
PHAROS: P62826 GTEx: ENSG00000132341
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P62826
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

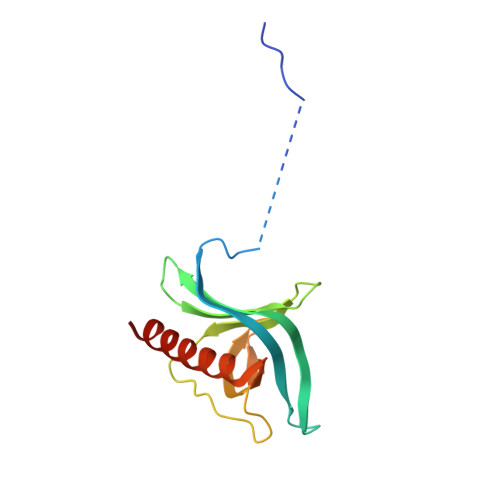

Ran-specific GTPase-activating protein 1	B	143	Saccharomyces cerevisiae	Mutation(s): 0 Gene Names: YRB1, CST20, HTN1, SFO1, YDR002W, YD8119.08
UniProt
Find proteins for P41920 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P41920 Go to UniProtKB: P41920
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P41920
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 3
Molecule	Chains	Sequence Length	Organism	Details	Image

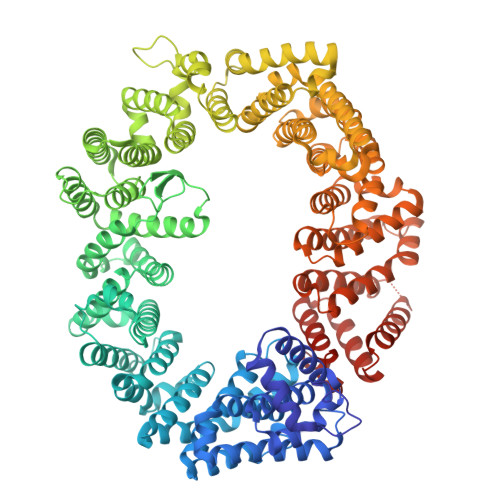

Exportin-1	C	1,024	Saccharomyces cerevisiae S288C	Mutation(s): 4 Gene Names: CRM1, KAP124, XPO1, YGR218W, G8514
UniProt
Find proteins for P30822 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P30822 Go to UniProtKB: P30822
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P30822
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 5 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
GNP (Subject of Investigation/LOI) Query on GNP Download Ideal Coordinates CCD File SDF format, chain D [auth A] MOL2 format, chain D [auth A] mmCIF format, chain D [auth A]	D [auth A]	PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER C₁₀ H₁₇ N₆ O₁₃ P₃ UQABYHGXWYXDTK-UUOKFMHZSA-N		Interactions Focus chain D [auth A] Interactions & Density Focus chain D [auth A]
K85 (Subject of Investigation/LOI) Query on K85 Download Ideal Coordinates CCD File SDF format, chain F [auth C] MOL2 format, chain F [auth C] mmCIF format, chain F [auth C]	F [auth C]	propan-2-yl 3-{3-[3-methoxy-5-(trifluoromethyl)phenyl]-1H-1,2,4-triazol-1-yl}propanoate C₁₆ H₁₈ F₃ N₃ O₃ QJLVYXNWBWLHFD-UHFFFAOYSA-N		Interactions Focus chain F [auth C] Interactions & Density Focus chain F [auth C]
GOL Query on GOL Download Ideal Coordinates CCD File SDF format, chain H [auth C] MOL2 format, chain H [auth C] mmCIF format, chain H [auth C]	H [auth C]	GLYCEROL C₃ H₈ O₃ PEDCQBHIVMGVHV-UHFFFAOYSA-N		Interactions Focus chain H [auth C] Interactions & Density Focus chain H [auth C]
CL Query on CL Download Ideal Coordinates CCD File SDF format, chain G [auth C] MOL2 format, chain G [auth C] mmCIF format, chain G [auth C]	G [auth C]	CHLORIDE ION Cl VEXZGXHMUGYJMC-UHFFFAOYSA-M		Interactions Focus chain G [auth C] Interactions & Density Focus chain G [auth C]
MG (Subject of Investigation/LOI) Query on MG Download Ideal Coordinates CCD File SDF format, chain E [auth A] MOL2 format, chain E [auth A] mmCIF format, chain E [auth A]	E [auth A]	MAGNESIUM ION Mg JLVVSXFLKOJNIY-UHFFFAOYSA-N		Interactions Focus chain E [auth A] Interactions & Density Focus chain E [auth A]

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 2.37 Å
R-Value Free: 0.236 (Depositor), 0.238 (DCC)
R-Value Work: 0.193 (Depositor), 0.195 (DCC)
R-Value Observed: 0.194 (Depositor)

Space Group: P 4₃ 2₁ 2

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 106.077	α = 90
b = 106.077	β = 90
c = 303.933	γ = 90

Software Package:

Software Name	Purpose
PHENIX	refinement
HKL-2000	data scaling
HKL-2000	data reduction
PHENIX	phasing

Structure Validation

View Full Validation Report

Ligand Structure Quality Assessment

Entry History & Funding Information

Deposition Data

Released Date: 2025-11-26

Deposition Author(s):

Fung, H.Y.J.

Chook, Y.M.

Funding Organization	Location	Grant Number
Cancer Prevention and Research Institute of Texas (CPRIT)	United States	RP220582
Cancer Prevention and Research Institute of Texas (CPRIT)	United States	RP180410
Cancer Prevention and Research Institute of Texas (CPRIT)	United States	150053
Cancer Prevention and Research Institute of Texas (CPRIT)	United States	RP170170
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)	United States	R35GM144137
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)	United States	T32GM131963
Welch Foundation	United States	I-1532
