9QD2 | pdb_00009qd2

Yeast 20S proteasome mutant: beta1_G128V (b1-propeptide deleted) in complex with MG132


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.70 Å
  • R-Value Free:
    0.214 (Depositor), 0.213 (DCC)
  • R-Value Work:
    0.176 (Depositor)
  • R-Value Observed:
    0.179 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


This is version 1.1 of the entry. See complete history


Literature

Proteasome-associated autoinflammatory syndromes: The impact of mutations in proteasome subunits on particle assembly, structure, and activity.

Huber, E.M.Heinemeyer, W.Groll, M.

(2025) Structure

  • DOI: https://doi.org/10.1016/j.str.2025.09.004
  • Primary Citation of Related Structures:
    9QAF, 9QAI, 9QB1, 9QB4, 9QBE, 9QBI, 9QBO, 9QBW, 9QBY, 9QC9, 9QCF, 9QCK, 9QD2, 9QDF, 9QDS

  • PubMed Abstract:

    Single point mutations in proteasome subunits can cause severe autoinflammatory syndromes. By still largely unknown mechanisms, some of these disease-associated mutations impair normal proteasome function and induce the production of pro-inflammatory cytokines, thereby leading to systemic inflammations. In order to obtain more insights on why and how the mutations T3M and G128V in the immunoproteasome subunit β5i trigger such deleterious effects, we created the respective yeast mutants and characterized their phenotypes with special emphasis on proteasome structure and activity. X-ray crystallographic data revealed that the mutation T3M influences structure and flexibility of the proteasomal substrate-binding channel with moderate impairment of proteasome biogenesis, whereas the amino acid substitution G128V causes larger structural rearrangements that severely disturb particle assembly and maturation. The obtained results provide a deeper understanding of how single point mutations can affect proteasome subunit structure as well as particle biogenesis and ultimately cause chronic inflammatory diseases.


  • Organizational Affiliation
    • Technical University of Munich, TUM School of Natural Sciences, Center for Functional Protein Assemblies, 85747 Garching, Germany.

Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage

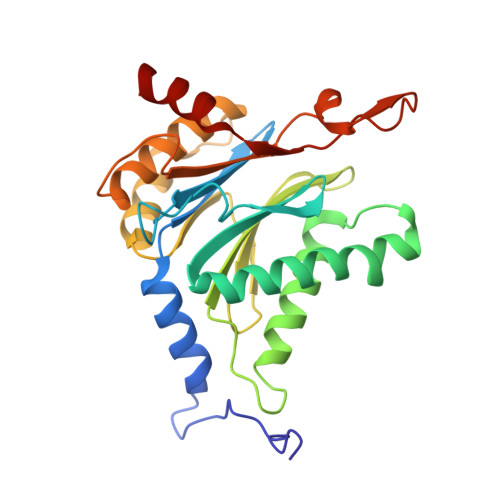

Proteasome subunit alpha type-2
A, O
250Saccharomyces cerevisiaeMutation(s): 0
UniProt
Find proteins for P23639 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P23639
Go to UniProtKB:  P23639
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP23639
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage

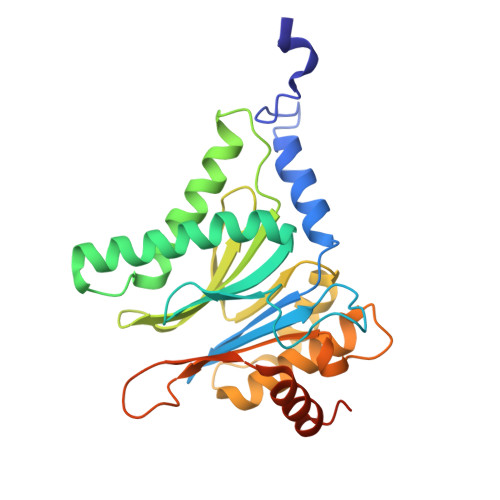

Proteasome subunit alpha type-3
B, P
258Saccharomyces cerevisiaeMutation(s): 0
UniProt
Find proteins for P23638 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P23638
Go to UniProtKB:  P23638
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP23638
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 3
MoleculeChains Sequence LengthOrganismDetailsImage

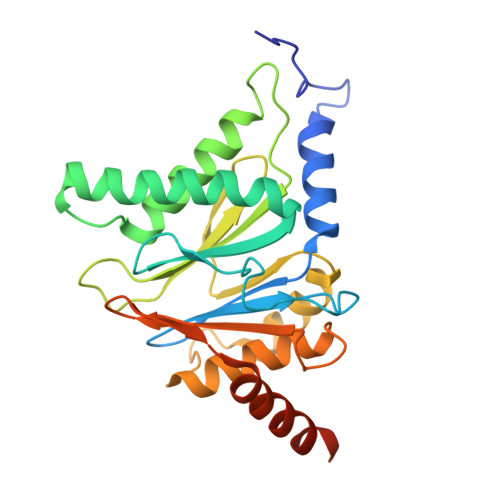

Proteasome subunit alpha type-4
C, Q
254Saccharomyces cerevisiaeMutation(s): 0
UniProt
Find proteins for P40303 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P40303
Go to UniProtKB:  P40303
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP40303
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 4
MoleculeChains Sequence LengthOrganismDetailsImage

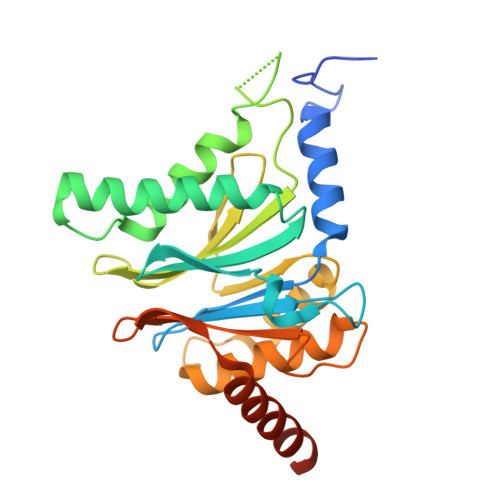

Proteasome subunit alpha type-5
D, R
260Saccharomyces cerevisiaeMutation(s): 0
UniProt
Find proteins for P32379 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P32379
Go to UniProtKB:  P32379
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP32379
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 5
MoleculeChains Sequence LengthOrganismDetailsImage

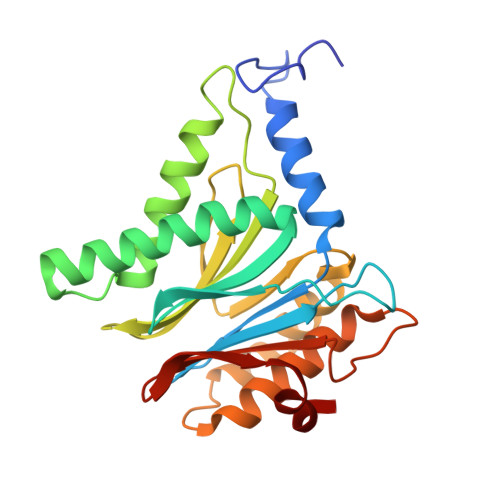

Proteasome subunit alpha type-6
E, S
234Saccharomyces cerevisiaeMutation(s): 0
UniProt
Find proteins for P40302 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P40302
Go to UniProtKB:  P40302
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP40302
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 6
MoleculeChains Sequence LengthOrganismDetailsImage

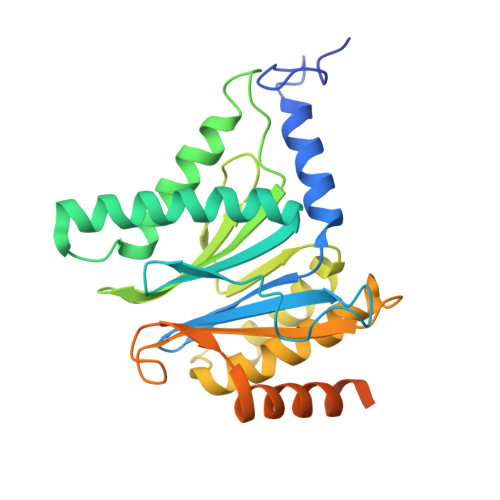

Probable proteasome subunit alpha type-7
F, T
288Saccharomyces cerevisiaeMutation(s): 0
UniProt
Find proteins for P21242 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P21242
Go to UniProtKB:  P21242
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP21242
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 7
MoleculeChains Sequence LengthOrganismDetailsImage

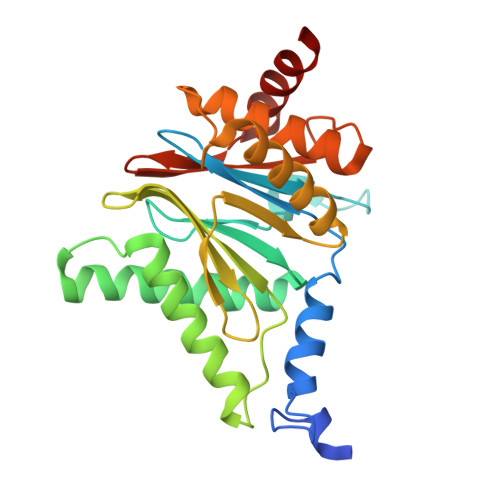

Proteasome subunit alpha type-1
G, U
252Saccharomyces cerevisiaeMutation(s): 0
UniProt
Find proteins for P21243 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P21243
Go to UniProtKB:  P21243
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP21243
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 8
MoleculeChains Sequence LengthOrganismDetailsImage
Proteasome subunit beta type-2
H, V
231Saccharomyces cerevisiaeMutation(s): 0
EC: 3.4.25.1
UniProt
Find proteins for P25043 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P25043
Go to UniProtKB:  P25043
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP25043
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 9
MoleculeChains Sequence LengthOrganismDetailsImage

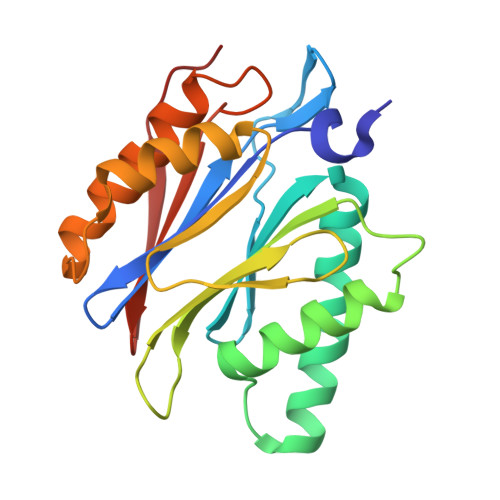

Proteasome subunit beta type-3
I, W
205Saccharomyces cerevisiaeMutation(s): 0
UniProt
Find proteins for P25451 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P25451
Go to UniProtKB:  P25451
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP25451
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 10
MoleculeChains Sequence LengthOrganismDetailsImage

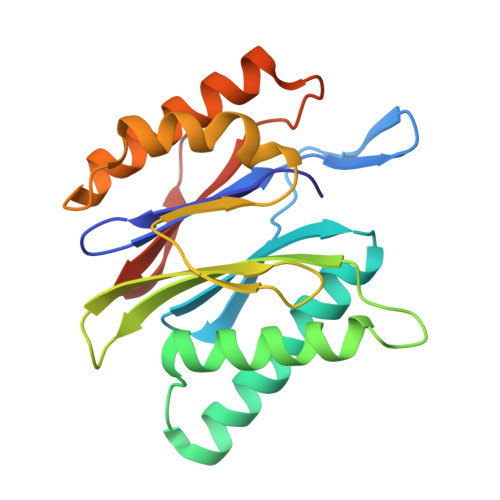

Proteasome subunit beta type-4
J, X
198Saccharomyces cerevisiaeMutation(s): 0
UniProt
Find proteins for P22141 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P22141
Go to UniProtKB:  P22141
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP22141
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 11
MoleculeChains Sequence LengthOrganismDetailsImage

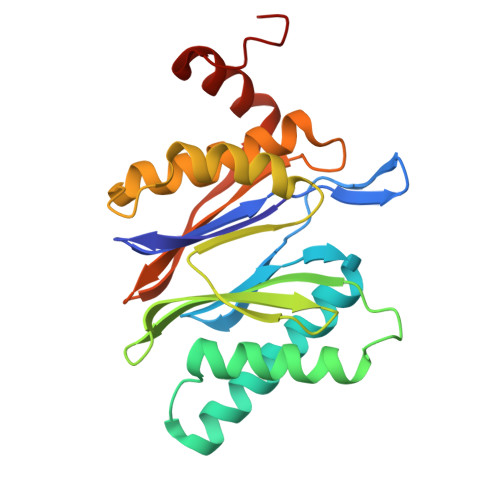

Proteasome subunit beta type-5
K, Y
211Saccharomyces cerevisiaeMutation(s): 0
EC: 3.4.25.1
UniProt
Find proteins for P30656 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P30656
Go to UniProtKB:  P30656
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP30656
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 12
MoleculeChains Sequence LengthOrganismDetailsImage

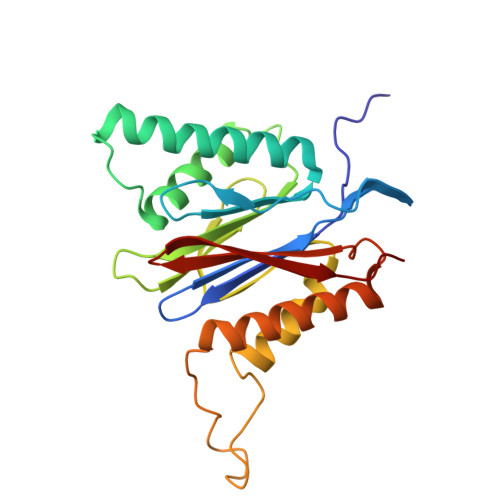

Proteasome subunit beta type-6
L, Z
222Saccharomyces cerevisiaeMutation(s): 0
UniProt
Find proteins for P23724 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P23724
Go to UniProtKB:  P23724
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP23724
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 13
MoleculeChains Sequence LengthOrganismDetailsImage

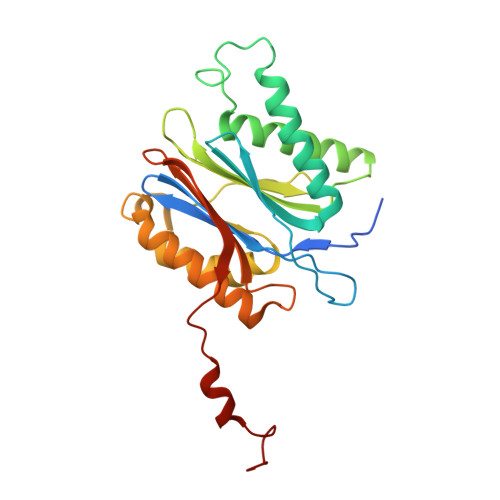

Proteasome subunit beta type-7AA [auth a],
M
246Saccharomyces cerevisiaeMutation(s): 0
UniProt
Find proteins for P30657 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P30657
Go to UniProtKB:  P30657
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP30657
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 14
MoleculeChains Sequence LengthOrganismDetailsImage

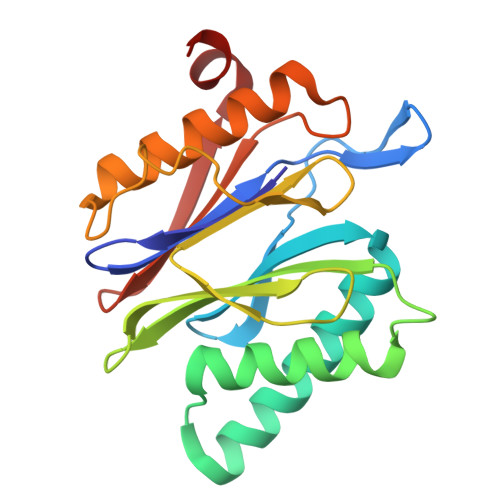

Proteasome subunit beta type-1BA [auth b],
N
195Saccharomyces cerevisiaeMutation(s): 1
Gene Names: PRE3YJL001WJ1407
EC: 3.4.25.1
UniProt
Find proteins for P38624 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P38624
Go to UniProtKB:  P38624
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP38624
Sequence Annotations
Expand
  • Reference Sequence

Find similar proteins by:  Sequence   |   3D Structure

Entity ID: 15
MoleculeChains Sequence LengthOrganismDetailsImage
3-PYRIDIN-4-YL-2,4-DIHYDRO-INDENO[1,2-.C.]PYRAZOLE4synthetic constructMutation(s): 0
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 3 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
MES
Query on MES

Download Ideal Coordinates CCD File
QA [auth a]2-(N-MORPHOLINO)-ETHANESULFONIC ACID
C6 H13 N O4 S
SXGZJKUKBWWHRA-UHFFFAOYSA-N
CL
Query on CL

Download Ideal Coordinates CCD File
JA [auth G],
KA [auth G],
NA [auth N],
OA [auth U],
RA [auth b]
CHLORIDE ION
Cl
VEXZGXHMUGYJMC-UHFFFAOYSA-M
MG
Query on MG

Download Ideal Coordinates CCD File
IA [auth G],
LA [auth I],
MA [auth J],
PA [auth Z]
MAGNESIUM ION
Mg
JLVVSXFLKOJNIY-UHFFFAOYSA-N
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.70 Å
  • R-Value Free:  0.214 (Depositor), 0.213 (DCC)
  • R-Value Work:  0.176 (Depositor)
  • R-Value Observed: 0.179 (Depositor)
Space Group: P 1 21 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 136.23α = 90
b = 300.11β = 113.25
c = 145.77γ = 90
Software Package:
Software NamePurpose
REFMACrefinement
XDSdata reduction
XSCALEdata scaling
REFMACphasing

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
German Research Foundation (DFG)GermanySFB1035, project no.201302640, A02

Revision History  (Full details and data files)

  • Version 1.0: 2025-10-08
    Type: Initial release
  • Version 1.1: 2025-10-15
    Changes: Database references
