9TMS | pdb_00009tms

Human sperm 20S-PA200 proteasome complex isolated from native source

Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 2.90 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 9TMS

This is version 1.0 of the entry. See complete history.

Literature

Molecular architecture and spatial organization of proteasomes in the human sperm nucleus

Kolata, P., dos Santos, A., Knowles, O., Dendooven, T., Allegretti, M.

(2026) Nat Struct Mol Biol

Macromolecule Content

  • Total Structure Weight: 929.92 kDa
  • Atom Count: 62,124
  • Modeled Residue Count: 7,914
  • Deposited Residue Count: 8,305
  • Unique protein chains: 15

Macromolecules

Find similar proteins by:
|  3D Structure
Entity ID: 1
MoleculeChains  Sequence LengthOrganismDetailsImage
Proteasome subunit alpha type-6A,
L [auth O]		246Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P60900 (Homo sapiens)
Explore P60900
Go to UniProtKB:  P60900
PHAROS:  P60900
GTEx:  ENSG00000100902
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP60900
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 2
MoleculeChains  Sequence LengthOrganismDetailsImage
Proteasome subunit alpha type-2B,
M [auth P]		234Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P25787 (Homo sapiens)
Explore P25787
Go to UniProtKB:  P25787
PHAROS:  P25787
GTEx:  ENSG00000106588
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP25787
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 3
MoleculeChains  Sequence LengthOrganismDetailsImage

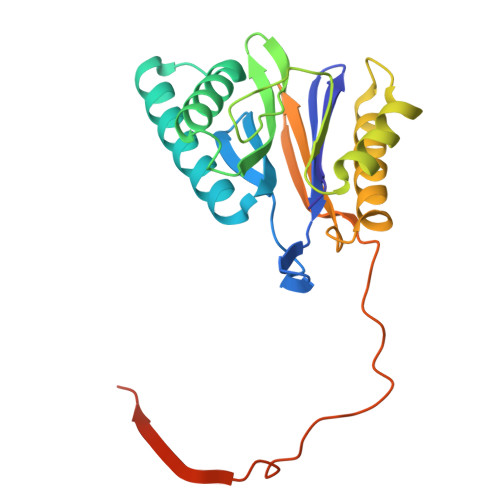

Proteasome subunit alpha type-1C [auth F],
Q [auth T]		263Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P25786 (Homo sapiens)
Explore P25786
Go to UniProtKB:  P25786
PHAROS:  P25786
GTEx:  ENSG00000129084
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP25786
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 4
MoleculeChains  Sequence LengthOrganismDetailsImage

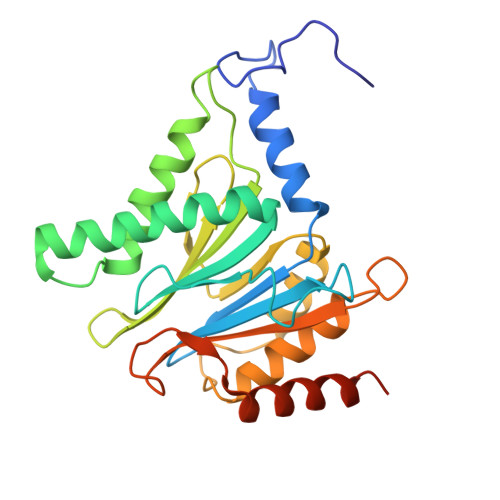

Proteasome subunit alpha type-3D [auth G],
R [auth U]		255Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P25788 (Homo sapiens)
Explore P25788
Go to UniProtKB:  P25788
PHAROS:  P25788
GTEx:  ENSG00000100567
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP25788
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 5
MoleculeChains  Sequence LengthOrganismDetailsImage
Proteasome subunit beta type-6E [auth H],
S [auth V]		205Homo sapiensMutation(s): 0
EC: 3.4.25.1
UniProt & NIH Common Fund Data Resources
Find proteins for P28072 (Homo sapiens)
Explore P28072
Go to UniProtKB:  P28072
PHAROS:  P28072
GTEx:  ENSG00000142507
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP28072
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 6
MoleculeChains  Sequence LengthOrganismDetailsImage

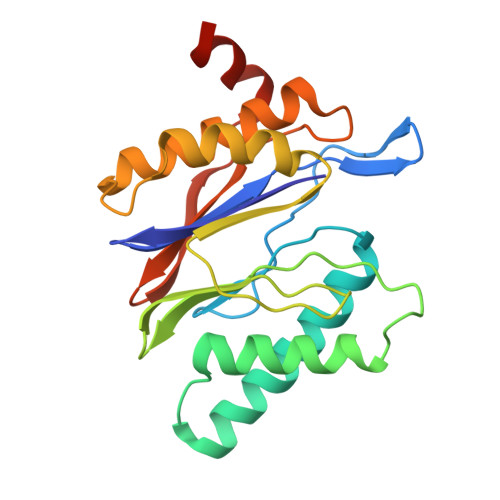

Proteasome subunit beta type-7F [auth I],
T [auth W]		234Homo sapiensMutation(s): 0
EC: 3.4.25.1
UniProt & NIH Common Fund Data Resources
Find proteins for Q99436 (Homo sapiens)
Explore Q99436
Go to UniProtKB:  Q99436
PHAROS:  Q99436
GTEx:  ENSG00000136930
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ99436
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 7
MoleculeChains  Sequence LengthOrganismDetailsImage
Proteasome subunit beta type-3G [auth J],
U [auth X]		205Homo sapiensMutation(s): 0
EC: 3.4.25.1
UniProt & NIH Common Fund Data Resources
Find proteins for P49720 (Homo sapiens)
Explore P49720
Go to UniProtKB:  P49720
PHAROS:  P49720
GTEx:  ENSG00000277791
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP49720
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 8
MoleculeChains  Sequence LengthOrganismDetailsImage

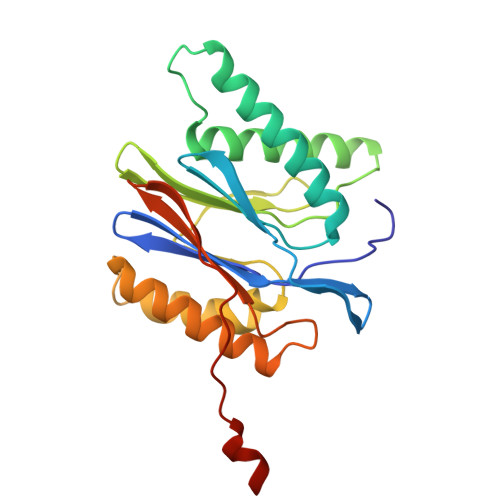

Proteasome subunit beta type-2H [auth K],
V [auth Y]		201Homo sapiensMutation(s): 0
EC: 3.4.25.1
UniProt & NIH Common Fund Data Resources
Find proteins for P49721 (Homo sapiens)
Explore P49721
Go to UniProtKB:  P49721
PHAROS:  P49721
GTEx:  ENSG00000126067
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP49721
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 9
MoleculeChains  Sequence LengthOrganismDetailsImage
Proteasome subunit beta type-5I [auth L],
W [auth Z]		204Homo sapiensMutation(s): 0
EC: 3.4.25.1
UniProt & NIH Common Fund Data Resources
Find proteins for P28074 (Homo sapiens)
Explore P28074
Go to UniProtKB:  P28074
PHAROS:  P28074
GTEx:  ENSG00000100804
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP28074
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 10
MoleculeChains  Sequence LengthOrganismDetailsImage
Proteasome subunit beta type-1J [auth M],
X [auth a]		213Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P20618 (Homo sapiens)
Explore P20618
Go to UniProtKB:  P20618
PHAROS:  P20618
GTEx:  ENSG00000008018
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP20618
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 11
MoleculeChains  Sequence LengthOrganismDetailsImage

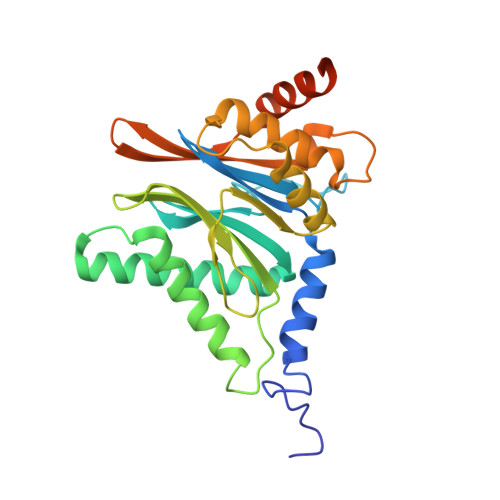

Proteasome subunit beta type-4K [auth N],
Y [auth b]		219Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P28070 (Homo sapiens)
Explore P28070
Go to UniProtKB:  P28070
PHAROS:  P28070
GTEx:  ENSG00000159377
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP28070
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 12
MoleculeChains  Sequence LengthOrganismDetailsImage
Proteasome subunit alpha type-4N [auth Q],
Z [auth C]		261Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P25789 (Homo sapiens)
Explore P25789
Go to UniProtKB:  P25789
PHAROS:  P25789
GTEx:  ENSG00000041357
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP25789
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 13
MoleculeChains  Sequence LengthOrganismDetailsImage

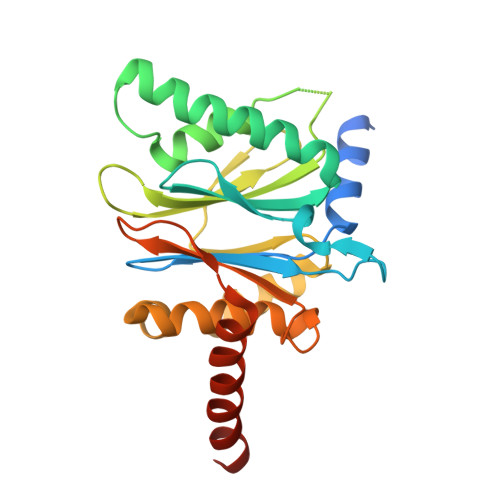

Isoform 3 of Proteasome subunit alpha-type 8AA [auth D],
O [auth R]		250Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for Q8TAA3 (Homo sapiens)
Go to UniProtKB:  Q8TAA3
PHAROS:  Q8TAA3
GTEx:  ENSG00000154611
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ8TAA3-5
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 14
MoleculeChains  Sequence LengthOrganismDetailsImage

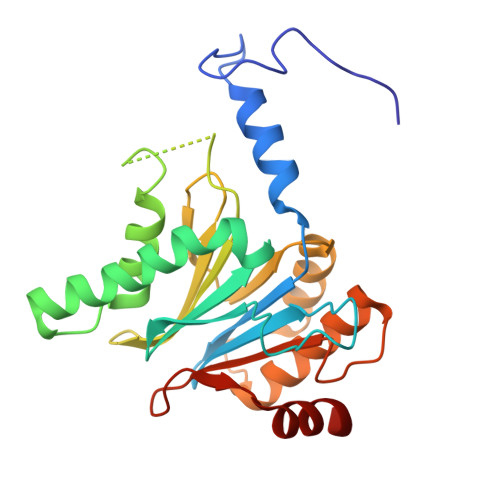

Proteasome subunit alpha type-5BA [auth E],
P [auth S]		241Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P28066 (Homo sapiens)
Explore P28066
Go to UniProtKB:  P28066
PHAROS:  P28066
GTEx:  ENSG00000143106
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP28066
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 15
MoleculeChains  Sequence LengthOrganismDetailsImage
Proteasome activator complex subunit 4CA [auth c]1,843Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for Q14997 (Homo sapiens)
Explore Q14997
Go to UniProtKB:  Q14997
PHAROS:  Q14997
GTEx:  ENSG00000068878
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ14997
Sequence Annotations
Expand
Reference Sequence

Small Molecules

Ligands 1 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
IHP

Query on IHP


Download:Ideal Coordinates CCD File
DA [auth c]INOSITOL HEXAKISPHOSPHATE
C6 H18 O24 P6
IMQLKJBTEOYOSI-GPIVLXJGSA-N

Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 2.90 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE
EM Software:
TaskSoftware PackageVersion
MODEL REFINEMENTPHENIX2.0_5884
RECONSTRUCTIONcryoSPARC4.4.1

Structure Validation

View Full Validation Report



View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Funding OrganizationLocationGrant Number
Medical Research Council (MRC, United Kingdom)United KingdomMC_UP_1201/30

Revision History  (Full details and data files)

  • Version 1.0: 2026-09-09
    Type: Initial release
