9W16 | pdb_00009w16

3-hydroxybutyryl-CoA dehydrogenase with NAD

PDB DOI: https://doi.org/10.2210/pdb9W16/pdb

Classification: OXIDOREDUCTASE
Organism(s): Faecalibacterium prausnitzii L2-6
Expression System: Escherichia coli
Mutation(s): No

Deposited: 2025-07-25 Released: 2026-04-15
Deposition Author(s): Shin, B.M.
Funding Organization(s): National Research Foundation (NRF, Korea)

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 2.71 Å
R-Value Free:
0.263 (Depositor), 0.260 (DCC)
R-Value Work:
0.221 (Depositor), 0.222 (DCC)
R-Value Observed:
0.223 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Ligand Structure Quality Assessment

This is version 1.0 of the entry. See complete history.

Literature

Structural Basis for Substrate-Induced Activation of 3-Hydroxybutyryl-CoA Dehydrogenase from Faecalibacterium prausnitzii L2-6

Shin, B.M., Park, S.H., Park, I.G., Bang, K.H., Kim, S.H., Hwang, K.Y.

To be published.

Macromolecule Content

Total Structure Weight: 187.32 kDa
Atom Count: 13,048
Modeled Residue Count: 1,740
Deposited Residue Count: 1,740
Unique protein chains: 1

Macromolecules

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

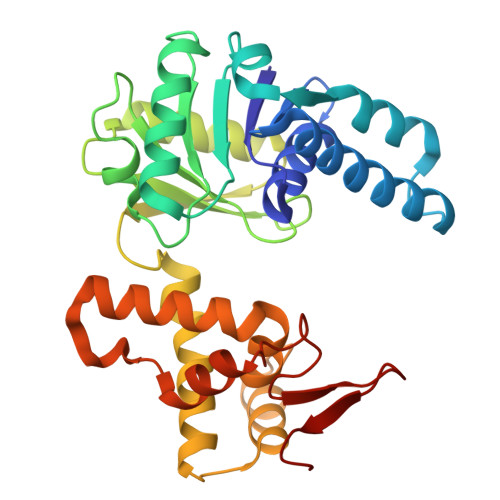

3-hydroxyacyl-CoA dehydrogenase, NAD binding domain protein	A [auth D] B [auth F] C [auth E] D [auth C] E [auth B] A [auth D], B [auth F], C [auth E], D [auth C], E [auth B], F [auth A]	290	Faecalibacterium prausnitzii L2-6	Mutation(s): 0
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
NAD (Subject of Investigation/LOI) Query on NAD Download Ideal Coordinates CCD File SDF format, chain G [auth E] MOL2 format, chain G [auth E] mmCIF format, chain G [auth E]	G [auth E]	NICOTINAMIDE-ADENINE-DINUCLEOTIDE C₂₁ H₂₇ N₇ O₁₄ P₂ BAWFJGJZGIEFAR-NNYOXOHSSA-N		Interactions Focus chain G [auth E] Interactions & Density Focus chain G [auth E]

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 2.71 Å
R-Value Free: 0.263 (Depositor), 0.260 (DCC)
R-Value Work: 0.221 (Depositor), 0.222 (DCC)
R-Value Observed: 0.223 (Depositor)

Space Group: P 2₁ 2₁ 2₁

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 82.963	α = 90
b = 147.782	β = 90
c = 167.444	γ = 90

Software Package:

Software Name	Purpose
PHENIX	refinement
PDB_EXTRACT	data extraction
HKL-2000	data reduction
HKL-2000	data scaling
PHENIX	phasing

Structure Validation

View Full Validation Report

Ligand Structure Quality Assessment

Entry History & Funding Information

Deposition Data

Released Date: 2026-04-15

Deposition Author(s):

Funding Organization	Location	Grant Number
National Research Foundation (NRF, Korea)	Korea, Republic Of	--

Revision History (Full details and data files)

Version 1.0: 2026-04-15
Type: Initial release
