9WP4 | pdb_00009wp4

Crystal structure of phosphate binding protein from Synechocystis sp. PCC 6803

PDB DOI: https://doi.org/10.2210/pdb9WP4/pdb

Classification: TRANSPORT PROTEIN
Organism(s): Synechocystis sp. PCC 6803 substr. Kazusa
Expression System: Escherichia coli BL21
Mutation(s): No

Deposited: 2025-09-08 Released: 2026-09-16
Deposition Author(s): Wang, C.Y., Lu, Y.P., Ma, H.L.
Funding Organization(s): Other government

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 1.41 Å
R-Value Free:
0.236 (Depositor), 0.236 (DCC)
R-Value Work:
0.176 (Depositor), 0.176 (DCC)
R-Value Observed:
0.179 (Depositor)

Starting Model: in silico
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 9WP4

Ligand Structure Quality Assessment

This is version 1.0 of the entry. See complete history.

Literature

Crystal structure of phosphate binding protein from Synechocystis sp. PCC 6803

Wang, C.Y., Lu, Y.P., Ma, H.L.

To be published.

Macromolecule Content

Total Structure Weight: 71.06 kDa
Atom Count: 5,911
Modeled Residue Count: 659
Deposited Residue Count: 666
Unique protein chains: 2

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

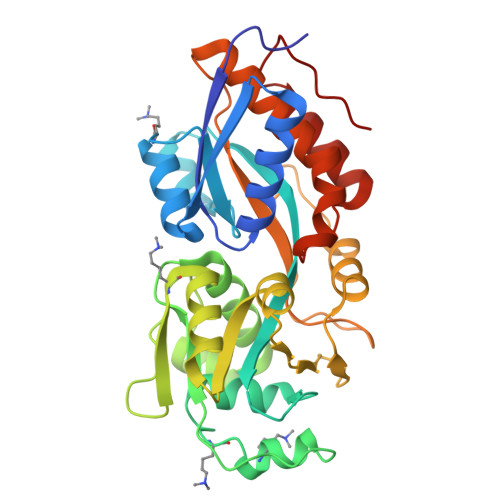

Phosphate-binding protein	A	333	Synechocystis sp. PCC 6803 substr. Kazusa	Mutation(s): 0 Gene Names: pstS
UniProt
Find proteins for Q55199 (Synechocystis sp. (strain ATCC 27184 / PCC 6803 / Kazusa)) Explore Q55199 Go to UniProtKB: Q55199
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q55199
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

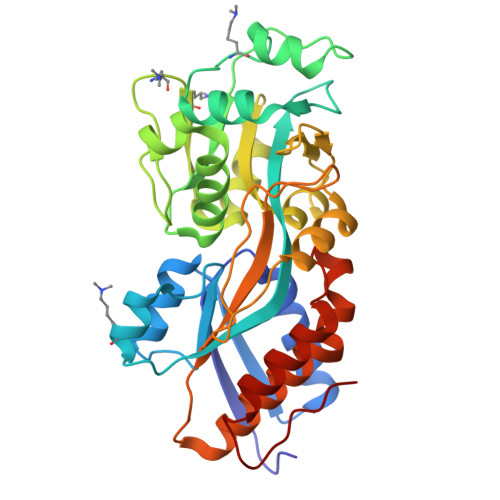

Phosphate-binding protein	B	333	Synechocystis sp. PCC 6803 substr. Kazusa	Mutation(s): 0 Gene Names: pstS
UniProt
Find proteins for Q55199 (Synechocystis sp. (strain ATCC 27184 / PCC 6803 / Kazusa)) Explore Q55199 Go to UniProtKB: Q55199
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q55199
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 2 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
PO4 (Subject of Investigation/LOI) Query on PO4 Download:Ideal Coordinates CCD File SDF format, chain C [auth A] SDF format, chain E [auth B] MOL2 format, chain C [auth A] MOL2 format, chain E [auth B] mmCIF format, chain C [auth A] mmCIF format, chain E [auth B]	C [auth A], E [auth B]	PHOSPHATE ION O₄ P NBIIXXVUZAFLBC-UHFFFAOYSA-K		Interactions Focus chain C [auth A] Focus chain E [auth B] Interactions & Density Focus chain C [auth A] Focus chain E [auth B]
MG (Subject of Investigation/LOI) Query on MG Download:Ideal Coordinates CCD File SDF format, chain D [auth A] SDF format, chain F [auth B] MOL2 format, chain D [auth A] MOL2 format, chain F [auth B] mmCIF format, chain D [auth A] mmCIF format, chain F [auth B]	D [auth A], F [auth B]	MAGNESIUM ION Mg JLVVSXFLKOJNIY-UHFFFAOYSA-N		Interactions Focus chain D [auth A] Focus chain F [auth B] Interactions & Density Focus chain D [auth A] Focus chain F [auth B]

Modified Residues 1 Unique
ID	Chains	Type	Formula	2D Diagram	Parent
MLY Query on MLY	A	L-PEPTIDE LINKING	C₈ H₁₈ N₂ O₂		LYS

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 1.41 Å
R-Value Free: 0.236 (Depositor), 0.236 (DCC)
R-Value Work: 0.176 (Depositor), 0.176 (DCC)
R-Value Observed: 0.179 (Depositor)

Space Group: P 1 2₁ 1

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 37.768	α = 90
b = 64.843	β = 91.39
c = 129.157	γ = 90

Software Package:

Software Name	Purpose
PHENIX	refinement
PDB_EXTRACT	data extraction
PHENIX	phasing

Structure Validation

View Full Validation Report

Ligand Structure Quality Assessment

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2026-09-16

Deposition Author(s):

Funding Organization	Location	Grant Number
Other government	China	2024M753349
Other government	China	32271358

Revision History (Full details and data files)

Version 1.0: 2026-09-16
Type: Initial release
