9E13 | pdb_00009e13

Full-length human dynein-1 in phi-like comformation bound to a Lis1 dimer under Lis1 condition

  • Classification: MOTOR PROTEIN
  • Organism(s): Homo sapiens
  • Expression System: Spodoptera frugiperda
  • Mutation(s): No

  • Deposited: 2024-10-21 Released: 2025-08-06
  • Deposition Author(s): Yang, J., Zhang, K.
  • Funding Organization(s): National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)

Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 4.50 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

wwPDB Validation   3D Report Full Report


This is version 1.1 of the entry. See complete history


Literature

Nde1 promotes Lis1 binding to full-length autoinhibited human dynein 1.

Yang, J.Zhao, Y.Chai, P.Yildiz, A.Zhang, K.

(2025) Nat Chem Biol

  • DOI: https://doi.org/10.1038/s41589-025-01981-6
  • Primary Citation of Related Structures:
    9E0Z, 9E10, 9E11, 9E12, 9E13, 9E14

  • PubMed Abstract:

    Cytoplasmic dynein 1 (dynein) is the primary motor responsible for the retrograde transport of intracellular cargoes along microtubules. Activation of dynein requires the opening its autoinhibited Phi conformation, a process driven by Lis1 and Nde1/Ndel1. Using biochemical reconstitution and cryo-electron microscopy, we demonstrate that Nde1 enhances Lis1 binding to autoinhibited dynein and facilitates Phi opening. We identify a key intermediate in this activation pathway where a single Lis1 dimer binds between Phi-like (Phi L ) motor rings. In this 'Phi L -Lis1' complex, Lis1 interacts with one motor domain through canonical sites at the AAA+ (adenosine triphosphatases associated with diverse cellular activities) ring and stalk, and with AAA5, AAA6 and linker regions of the other motor domain. Mutagenesis and motility assays confirm the critical role of the Phi L -Lis1 interface in dynein activation. This intermediate forms rapidly in the presence of Nde1, although Nde1 is not part of Phi L -Lis1. These findings provide key insights into how Nde1 promotes Lis1-mediated Phi opening.


  • Organizational Affiliation
    • Department of Molecular Biophysics and Biochemistry, Yale University, New Haven, CT, USA.

Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage

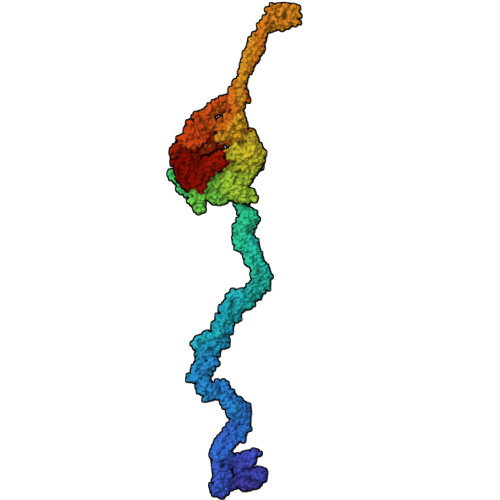

Cytoplasmic dynein 1 heavy chain 1
A, B
4,646Homo sapiensMutation(s): 0
Gene Names: DYNC1H1DHC1DNCH1DNCLDNECLDYHCKIAA0325
UniProt & NIH Common Fund Data Resources
Find proteins for Q14204 (Homo sapiens)
Explore Q14204
Go to UniProtKB:  Q14204
PHAROS:  Q14204
GTEx:  ENSG00000197102
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ14204
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage

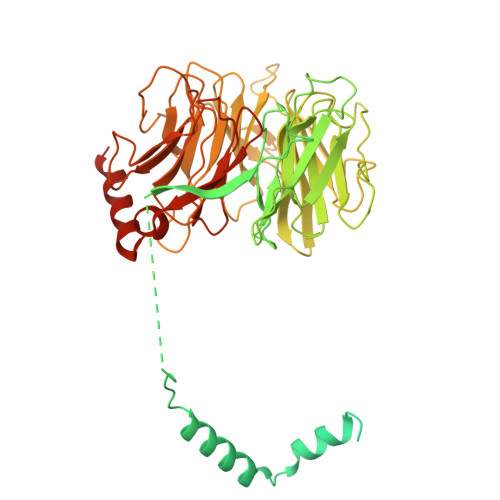

Cytoplasmic dynein 1 intermediate chain 2
C, D
638Homo sapiensMutation(s): 0
Gene Names: DYNC1I2DNCI2DNCIC2
UniProt & NIH Common Fund Data Resources
Find proteins for Q13409 (Homo sapiens)
Explore Q13409
Go to UniProtKB:  Q13409
PHAROS:  Q13409
GTEx:  ENSG00000077380
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ13409
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 3
MoleculeChains Sequence LengthOrganismDetailsImage

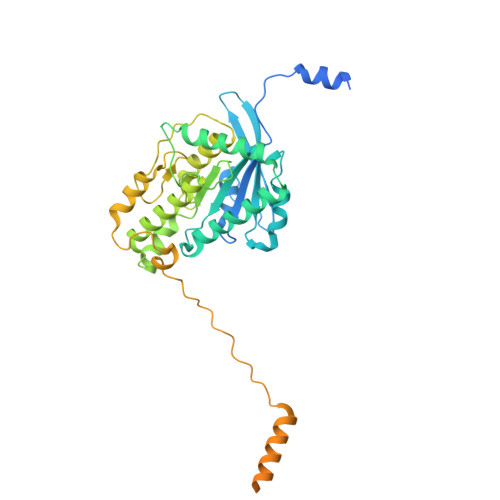

Cytoplasmic dynein 1 light intermediate chain 2
E, F
492Homo sapiensMutation(s): 0
Gene Names: DYNC1LI2DNCLI2LIC2
UniProt & NIH Common Fund Data Resources
Find proteins for O43237 (Homo sapiens)
Explore O43237
Go to UniProtKB:  O43237
PHAROS:  O43237
GTEx:  ENSG00000135720
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupO43237
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 4
MoleculeChains Sequence LengthOrganismDetailsImage

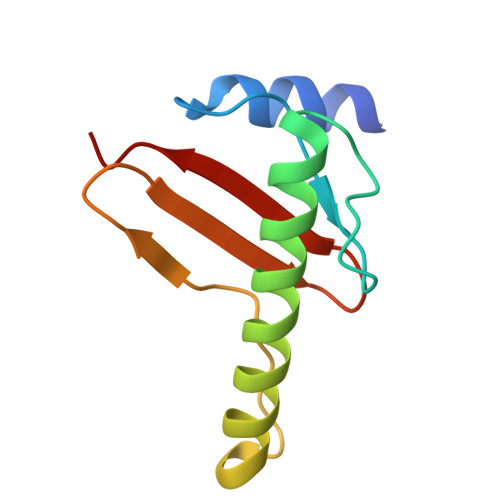

Dynein light chain roadblock-type 1
G, H
96Homo sapiensMutation(s): 0
Gene Names: DYNLRB1BITHDNCL2ADNLC2AROBLD1HSPC162
UniProt & NIH Common Fund Data Resources
Find proteins for Q9NP97 (Homo sapiens)
Explore Q9NP97
Go to UniProtKB:  Q9NP97
PHAROS:  Q9NP97
GTEx:  ENSG00000125971
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9NP97
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 5
MoleculeChains Sequence LengthOrganismDetailsImage

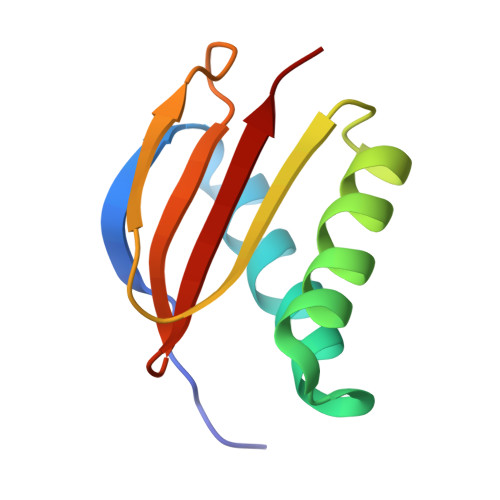

Dynein light chain 1, cytoplasmic
I, J
89Homo sapiensMutation(s): 0
Gene Names: DYNLL1DLC1DNCL1DNCLC1HDLC1
UniProt & NIH Common Fund Data Resources
Find proteins for P63167 (Homo sapiens)
Explore P63167
Go to UniProtKB:  P63167
PHAROS:  P63167
GTEx:  ENSG00000088986
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP63167
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 6
MoleculeChains Sequence LengthOrganismDetailsImage

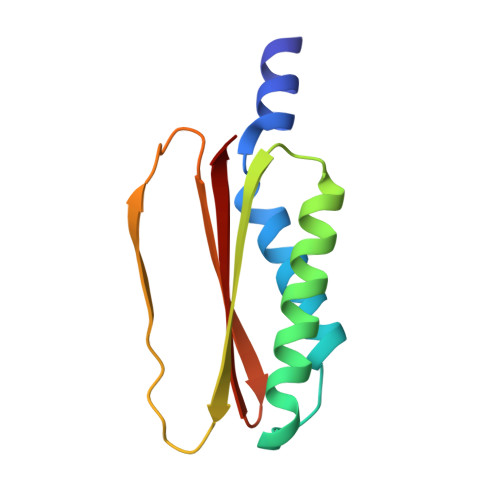

Dynein light chain Tctex-type 1
K, L
113Homo sapiensMutation(s): 0
Gene Names: DYNLT1TCTEL1TCTEX-1TCTEX1
UniProt & NIH Common Fund Data Resources
Find proteins for P63172 (Homo sapiens)
Explore P63172
Go to UniProtKB:  P63172
PHAROS:  P63172
GTEx:  ENSG00000146425
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP63172
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 7
MoleculeChains Sequence LengthOrganismDetailsImage

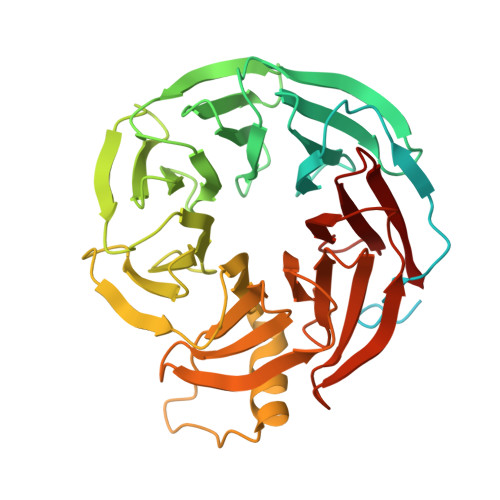

Platelet-activating factor acetylhydrolase IB subunit betaM [auth O],
N [auth P]
410Homo sapiensMutation(s): 0
Gene Names: PAFAH1B1LIS1MDCRMDSPAFAHA
UniProt & NIH Common Fund Data Resources
Find proteins for P43034 (Homo sapiens)
Explore P43034
Go to UniProtKB:  P43034
PHAROS:  P43034
GTEx:  ENSG00000007168
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP43034
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 3 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
ATP (Subject of Investigation/LOI)
Query on ATP

Download Ideal Coordinates CCD File
P [auth A],
V [auth B]
ADENOSINE-5'-TRIPHOSPHATE
C10 H16 N5 O13 P3
ZKHQWZAMYRWXGA-KQYNXXCUSA-N
ADP (Subject of Investigation/LOI)
Query on ADP

Download Ideal Coordinates CCD File
O [auth A]
Q [auth A]
R [auth A]
U [auth B]
W [auth B]
O [auth A],
Q [auth A],
R [auth A],
U [auth B],
W [auth B],
X [auth B]
ADENOSINE-5'-DIPHOSPHATE
C10 H15 N5 O10 P2
XTWYTFMLZFPYCI-KQYNXXCUSA-N
MG (Subject of Investigation/LOI)
Query on MG

Download Ideal Coordinates CCD File
S [auth A],
T [auth A],
Y [auth B],
Z [auth B]
MAGNESIUM ION
Mg
JLVVSXFLKOJNIY-UHFFFAOYSA-N
Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 4.50 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE
EM Software:
TaskSoftware PackageVersion
MODEL REFINEMENTPHENIX
RECONSTRUCTIONcryoSPARC4

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)United StatesR35 GM142959

Revision History  (Full details and data files)

  • Version 1.0: 2025-08-06
    Type: Initial release
  • Version 1.1: 2025-08-13
    Changes: Data collection, Database references
