9A40 | pdb_00009a40

model of Cullin4

Integrative structure models are generated using different types of input information, including varied experimental data, physical principles, statistical preferences, and other prior information.


Integrative Structure Snapshot

  • Multi-Scale: No
  • Multi-State: No
  • Ordered-State: No
  • Deposited Models: 1
  • Representative Model: 1

This is version 1.0 of the entry. See complete history


Literature

Modelling protein complexes with crosslinking mass spectrometry and deep learning

Stahl, K.Warneke, R.Demann, L.Bremenkamp, R.Hormes, B.Brock, O.Stulke, J.Rappsilber, J.

(2024) Nat Commun 15: 7866

  • DOI: https://doi.org/10.1038/s41467-024-51771-2
  • Primary Citation of Related Structures:
    9A40, 9A4A, 9A4B, 9A4C, 9A4D, 9A4E, 9A4F, 9A4G, 9A4H, 9A4I, 9A4J, 9A4K, 9A4L, 9A4M, 9A4N, 9A4O, 9A4P, 9A4Q, 9A4R, 9A4S, 9A4T, 9A4U, 9A4V, 9A4W, 9A4X, 9A4Y, 9A4Z, 9A50, 9A51, 9A52, 9A53, 9A54, 9A55, 9A56, 9A57, 9A58, 9A59, 9A5A, 9A5B, 9A5C, 9A5D, 9A5E, 9A5F, 9A5G, 9A5H, 9A5I, 9A5J, 9A5K, 9A5L, 9A5M

  • PubMed Abstract:

    Scarcity of structural and evolutionary information on protein complexes poses a challenge to deep learning-based structure modelling. We integrate experimental distance restraints obtained by crosslinking mass spectrometry (MS) into AlphaFold-Multimer, by extending AlphaLink to protein complexes. Integrating crosslinking MS data substantially improves modelling performance on challenging targets, by helping to identify interfaces, focusing sampling, and improving model selection. This extends to single crosslinks from whole-cell crosslinking MS, opening the possibility of whole-cell structural investigations driven by experimental data. We demonstrate this by revealing the molecular basis of iron homoeostasis in Bacillus subtilis.


  • Organizational Affiliation
    • Technische Universität Berlin, Chair of Bioanalytics, Berlin, Germany.

Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage

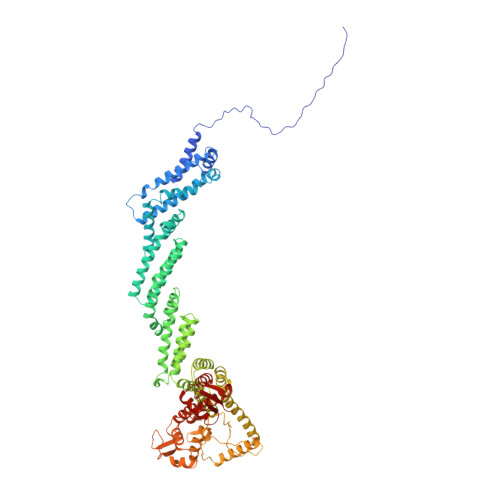

CUL4A_HUMAN739Homo sapiensMutation(s): 0
Gene Names: CUL4A
UniProt & NIH Common Fund Data Resources
Find proteins for Q13619 (Homo sapiens)
Explore Q13619
Go to UniProtKB:  Q13619
PHAROS:  Q13619
GTEx:  ENSG00000139842
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ13619
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage

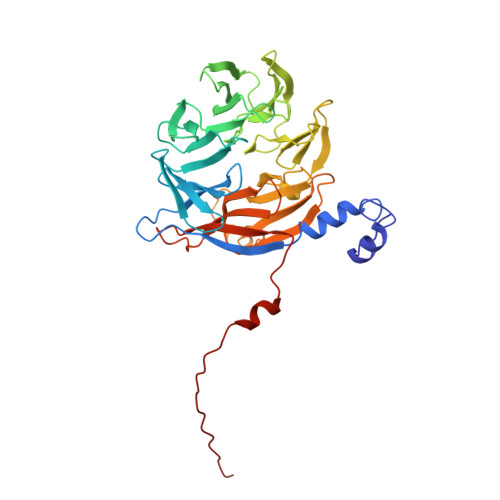

DCAF1_HUMAN373Homo sapiensMutation(s): 0
Gene Names: DCAF1
EC: 2.7.11.1
UniProt & NIH Common Fund Data Resources
Find proteins for Q9Y4B6 (Homo sapiens)
Explore Q9Y4B6
Go to UniProtKB:  Q9Y4B6
PHAROS:  Q9Y4B6
GTEx:  ENSG00000145041
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9Y4B6
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 3
MoleculeChains Sequence LengthOrganismDetailsImage

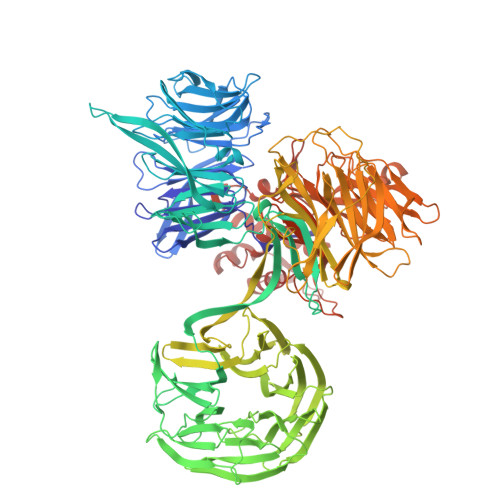

DDB1_HUMAN1,142Homo sapiensMutation(s): 0
Gene Names: DDB1
UniProt & NIH Common Fund Data Resources
Find proteins for Q16531 (Homo sapiens)
Explore Q16531
Go to UniProtKB:  Q16531
PHAROS:  Q16531
GTEx:  ENSG00000167986
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ16531
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 4
MoleculeChains Sequence LengthOrganismDetailsImage

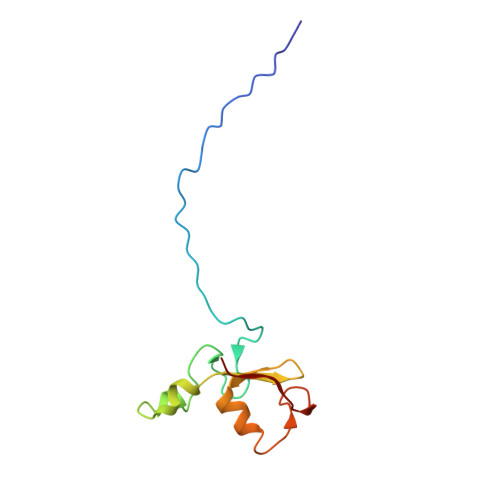

RBX1_HUMAN98Homo sapiensMutation(s): 0
Gene Names: RBX1
EC: 2.3.2.32 (UniProt), 2.3.2.27 (UniProt)
UniProt & NIH Common Fund Data Resources
Find proteins for P62877 (Homo sapiens)
Explore P62877
Go to UniProtKB:  P62877
PHAROS:  P62877
GTEx:  ENSG00000100387
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP62877
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 5
MoleculeChains Sequence LengthOrganismDetailsImage

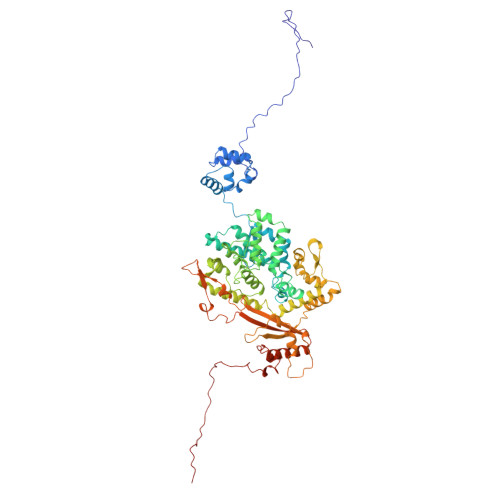

G7N4W9_MACMU628Macaca mulattaMutation(s): 0
Gene Names: SAMHD1
UniProt
Find proteins for G7N4W9 (Macaca mulatta)
Explore G7N4W9
Go to UniProtKB:  G7N4W9
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupG7N4W9
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 6
MoleculeChains Sequence LengthOrganismDetailsImage

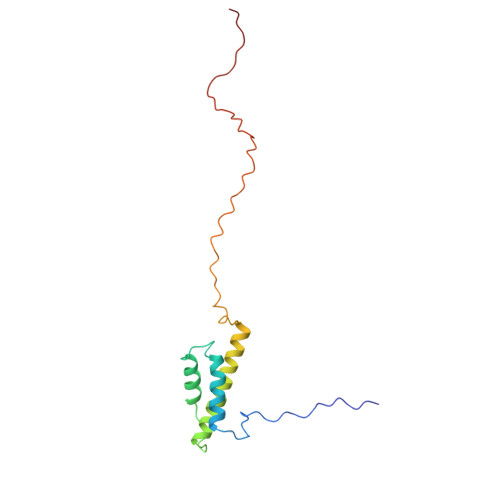

A4UDG5_SIV138Simian immunodeficiency virusMutation(s): 0
Gene Names: vpr
UniProt
Find proteins for A4UDG5 (Simian immunodeficiency virus)
Explore A4UDG5
Go to UniProtKB:  A4UDG5
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA4UDG5
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Integrative Structure Snapshot

  • Multi-Scale: No
  • Multi-State: No
  • Ordered-State: No
  • Deposited Models: 1
  • Representative Model: 1

Structure Validation

View Full Validation Report

View Summary Validation Report



Entry History

Deposition Data

Revision History  (Full details and data files)

  • Version 1.0: 2024-09-18
    Type: Initial release
