9O21 | pdb_00009o21

Heparanase P6 in complex with fragment J34

PDB DOI: https://doi.org/10.2210/pdb9O21/pdb

Classification: HYDROLASE
Organism(s): Homo sapiens
Expression System: Escherichia coli
Mutation(s): No

Deposited: 2025-04-03 Released: 2026-02-11
Deposition Author(s): Davies, L.J., Frkic, R.L., Jackson, C.J.
Funding Organization(s): Australian Research Council (ARC)

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 1.82 Å
R-Value Free:
0.223 (Depositor), 0.224 (DCC)
R-Value Work:
0.189 (Depositor), 0.191 (DCC)
R-Value Observed:
0.191 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

This is version 1.0 of the entry. See complete history.

Literature

Fragment Screening and Structure-Guided Development of Heparanase Inhibitors Reveal Orthosteric and Allosteric Inhibition

Davies, L.J., Whitefield, C., Kim, H., Nitsche, C., Jackson, C.J., Frkic, R.L.

(2026) ACS Med Chem Lett

DOI: https://doi.org/10.1021/acsmedchemlett.5c00587

Macromolecule Content

Total Structure Weight: 52.02 kDa
Atom Count: 3,999
Modeled Residue Count: 456
Deposited Residue Count: 457
Unique protein chains: 2

Macromolecules

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

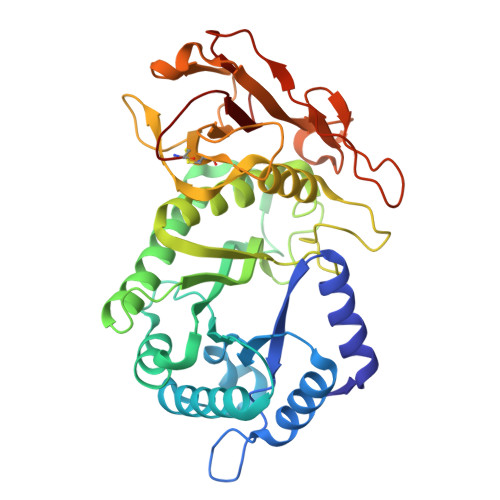

Heparanase 50 kDa subunit	A	383	Homo sapiens	Mutation(s): 0 Gene Names: HPSE, HEP, HPA, HPA1, HPR1, HPSE1, HSE1 EC: 3.2.1.166
UniProt & NIH Common Fund Data Resources
Find proteins for Q9Y251 (Homo sapiens) Explore Q9Y251 Go to UniProtKB: Q9Y251
PHAROS: Q9Y251 GTEx: ENSG00000173083
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q9Y251
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

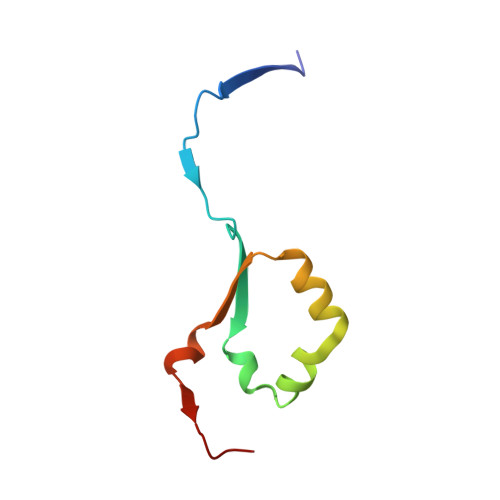

Heparanase 8 kDa subunit	B	74	Homo sapiens	Mutation(s): 0 Gene Names: HPSE, HEP, HPA, HPA1, HPR1, HPSE1, HSE1 EC: 3.2.1.166
UniProt & NIH Common Fund Data Resources
Find proteins for Q9Y251 (Homo sapiens) Explore Q9Y251 Go to UniProtKB: Q9Y251
PHAROS: Q9Y251 GTEx: ENSG00000173083
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q9Y251
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 5 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
A1B72 (Subject of Investigation/LOI) Query on A1B72 Download Ideal Coordinates CCD File SDF format, chain C [auth A] MOL2 format, chain C [auth A] mmCIF format, chain C [auth A]	C [auth A]	(2S)-2-(azepan-1-yl)-1-(1H-indol-3-yl)propan-1-one C₁₇ H₂₂ N₂ O OLYBVEMMSRDXDJ-ZDUSSCGKSA-N		Interactions Focus chain C [auth A] Interactions & Density Focus chain C [auth A]
PEG Query on PEG Download Ideal Coordinates CCD File SDF format, chain E [auth A] MOL2 format, chain E [auth A] mmCIF format, chain E [auth A]	E [auth A]	DI(HYDROXYETHYL)ETHER C₄ H₁₀ O₃ MTHSVFCYNBDYFN-UHFFFAOYSA-N		Interactions Focus chain E [auth A] Interactions & Density Focus chain E [auth A]
SO4 Query on SO4 Download Ideal Coordinates CCD File SDF format, chain I [auth A] SDF format, chain J [auth A] SDF format, chain K [auth A] MOL2 format, chain I [auth A] MOL2 format, chain J [auth A] MOL2 format, chain K [auth A] mmCIF format, chain I [auth A] mmCIF format, chain J [auth A] mmCIF format, chain K [auth A]	I [auth A], J [auth A], K [auth A]	SULFATE ION O₄ S QAOWNCQODCNURD-UHFFFAOYSA-L		Interactions Focus chain I [auth A] Focus chain J [auth A] Focus chain K [auth A] Interactions & Density Focus chain I [auth A] Focus chain J [auth A] Focus chain K [auth A]
EDO Query on EDO Download Ideal Coordinates CCD File SDF format, chain F [auth A] SDF format, chain G [auth A] SDF format, chain H [auth A] MOL2 format, chain F [auth A] MOL2 format, chain G [auth A] MOL2 format, chain H [auth A] mmCIF format, chain F [auth A] mmCIF format, chain G [auth A] mmCIF format, chain H [auth A]	F [auth A], G [auth A], H [auth A]	1,2-ETHANEDIOL C₂ H₆ O₂ LYCAIKOWRPUZTN-UHFFFAOYSA-N		Interactions Focus chain F [auth A] Focus chain G [auth A] Focus chain H [auth A] Interactions & Density Focus chain F [auth A] Focus chain G [auth A] Focus chain H [auth A]
ACT Query on ACT Download Ideal Coordinates CCD File SDF format, chain D [auth A] MOL2 format, chain D [auth A] mmCIF format, chain D [auth A]	D [auth A]	ACETATE ION C₂ H₃ O₂ QTBSBXVTEAMEQO-UHFFFAOYSA-M		Interactions Focus chain D [auth A] Interactions & Density Focus chain D [auth A]
